6.INSTALLATION CONDITIONS AND NOTES SVM B-65322EN/02

- 34 -

6.3.2 Grounding

A CNC machine tool has three separate ground systems:

(1) Signal ground (SG) system

The signal ground (SG) system provides the reference potential

(0V) for the electrical signal system.

(2) Frame ground (FG) system

The frame ground (FG) system is provided to ensure safety and

to shield external and internal noise. For example, the equipment

frames, unit cases, panels, and interface cables connecting

devices are all shielded.

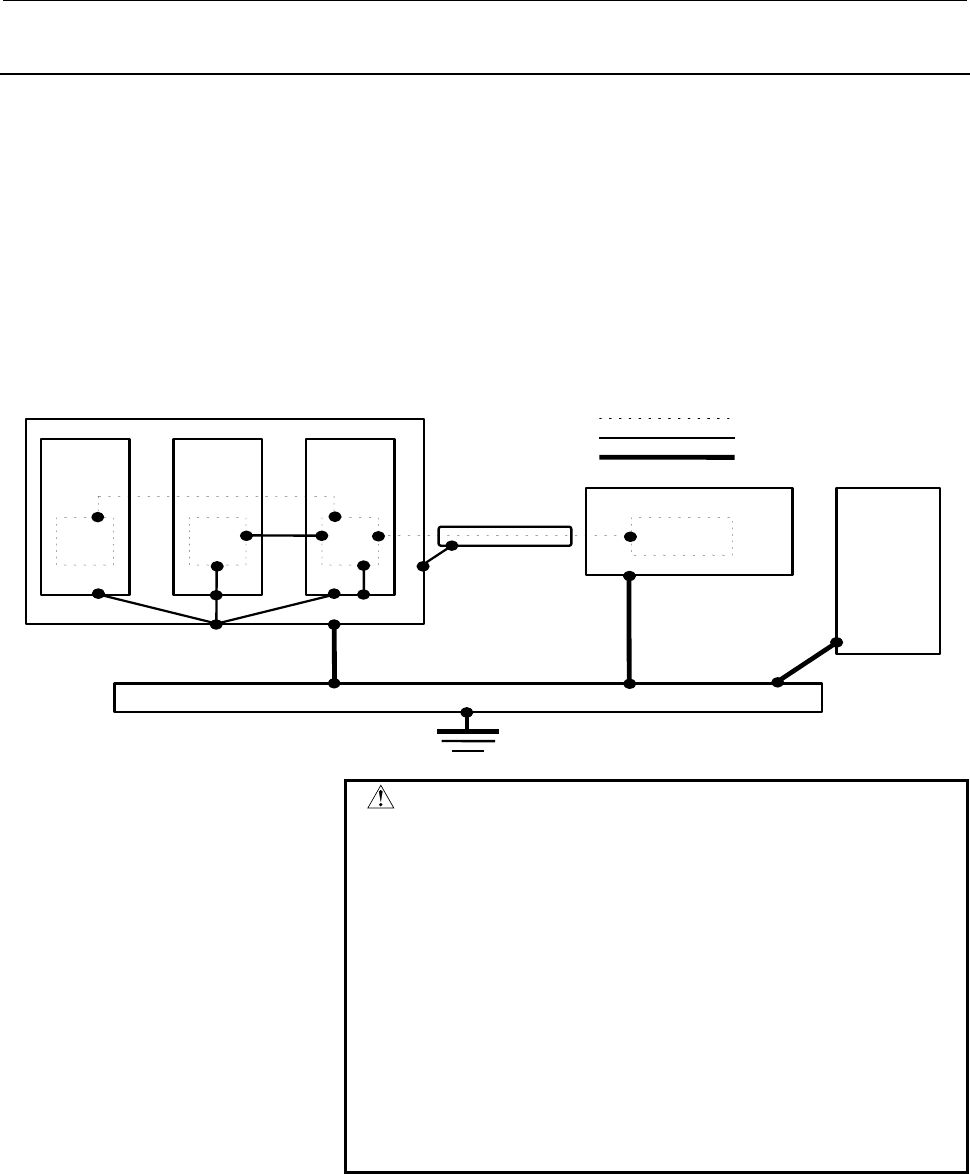

(3) System ground system

The system ground system is designed to connect each unit and

the inter-unit frame ground system to ground.

Power

magnetics

unit

Servo

amplifier

CNC

Operator’s panel

Main unit

Distribution board

Power magnetics unit

Signal Ground system

Flame Ground system

System Ground system

WARNING

[Warning on ground system wiring]

1 The ground resistance of the system ground must

not exceed 100 Ω (class-3 ground).

2 System ground connection cables must have a

sufficiently large cross-sectional area to enable

them to safely carry the current that will arise in the

event of a mishap such as a short-circuit. (In

general, a cross-sectional area no less than that of

the AC power line must be provided.)

3 The system ground connection cable shall be

integrated with the AC power line, such that power

cannot be supplied if the ground wire is

disconnected.
