B-65322EN/02 I/O Link 9.TOTAL CONNECTION DIAGRAM

- 227 -

9.2.15.2 *+OT, *-OT, and *RILK(*DEC)

Input signal specifications

The receiving circuit has a non-insulating interface that can switch

between the sink type (24 V common) and the source type (0 V

common). Safety standards require use of the sink type.

The contacts on the machine side must satisfy the following:

Contact capacity: 30 VDC, 16 mA or more

Leak current between contact points when a contact is closed:

1 mA or less (voltage: 26.4 V)

Voltage drop between contact points when a contact is closed:

2 V or less (current: 8.5 mA, including voltage drop in cable)

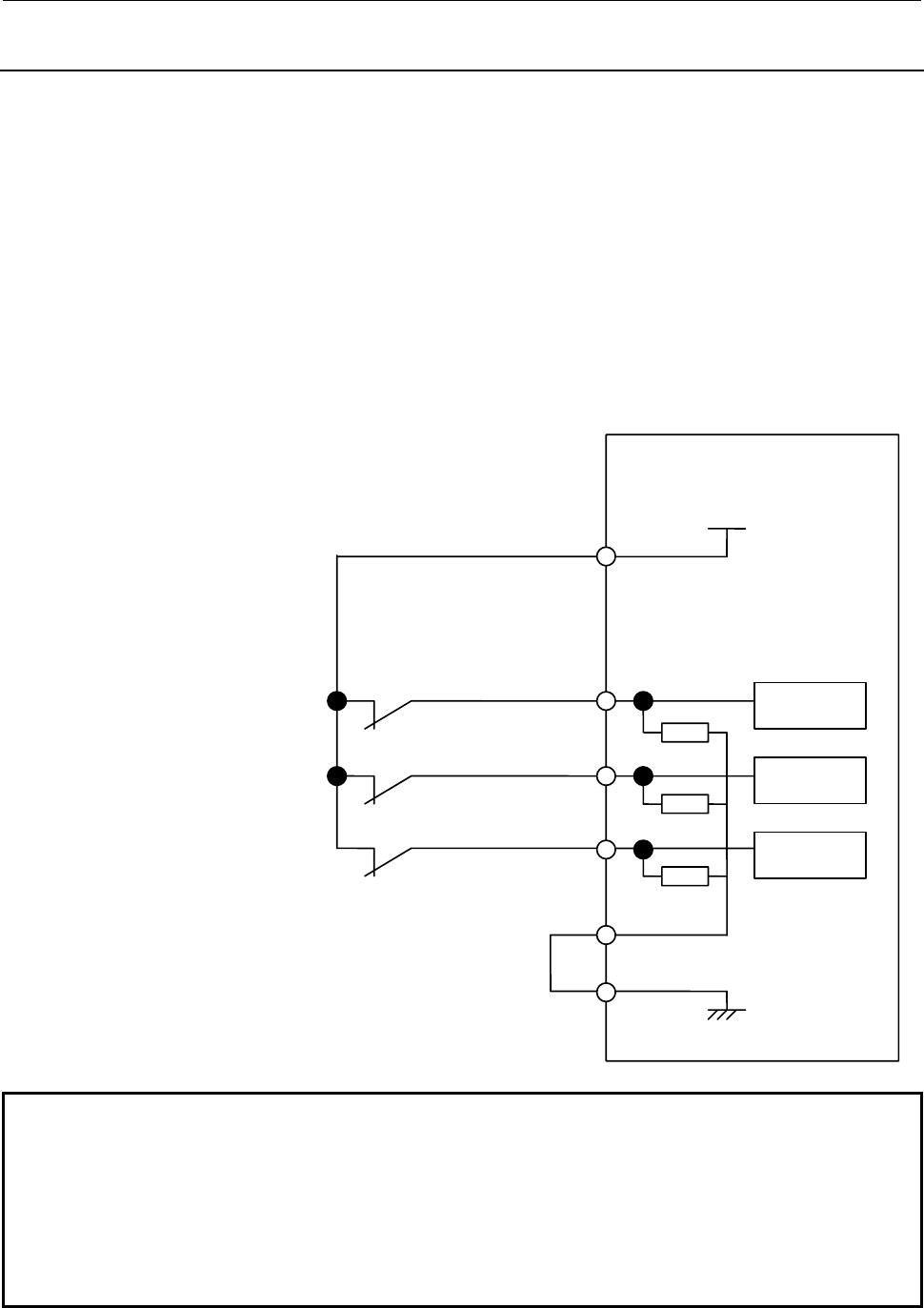

Signal connection to power magnetics cabinet

Filter and

receiver

Filter and

receiver

Filter and

receiver

Interlock signal input (reference position

return deceleration signal input)

βi SVM

+24V

JA72

(10),(19)

(6)

+ overtravel signal

input

*+OT

(7)

*-OT

- overtravel signal

input

(8)

*RILK

(11)

DIC

(12), (14), (16)

NOTE

1 Use a common shield cable as cable K21.

2 For 0V, +24V, and DIC, wires of at least 7/0.18 (0.18mm

) must be used.

3 Except the pins indicated in the above figure, leave pins open. Never connect

unused conductors of the cable to these pins.

4 The above shows an example of the 24 V common type.

When the 0 V common type is used, connect DIC (JA72-11) to +24V (JA72-10, and

19), and the later stage of each switch to 0V (JA72-12, 14, and 16).
