FANUC SERVO AMPLIFIER

iSV 20/20 DESCRIPTIONS

B-65322EN/02-03

10. Power failure detecting function

The power failure detect function aiming at the gravity axis fall prevention at the time of a

power failure was occurred.

Please refer to the section [11.5] for connection details.

In case of using this function, please add an uninterruptible power supply (UPS) etc. to be

able to maintain the control source (DC 24V) of CNC and amplifier after a power failure

occurs until mechanical brake operates.

Specification

2-axes amplifier

βiSV output a power failure detect signal from a connector CX36, when

power failure is occurred.

The drop of three-phase circuit AC voltage inputted into the connector “CZ4” of 2-axes

amplifier β

iSV is detected.

CZ4 input voltage range: 0 V-AC240V+10% 3φ 50Hz/60Hz±2Hz

CZ4 power failure detect voltage: AC165V±10V

Detection delay time is established so that it may not react sensitively to instantaneous

power failure.

Detection delay time: 8msec~17msec

(Note)

The detect condition is simultaneous three-phase circuit AC voltage drop.

Therefore, it may be unable to detect a power failure correctly on following conditions.

1. Power failure (phase interruption) as only one phase drop.

2. Power failure occurred at the time of motor acceleration. (Please see below.)

3. The amplifier is necessary to operate normally at instantaneous power failure for

3msec or less and for this terms the power failure detect signal is not detected.

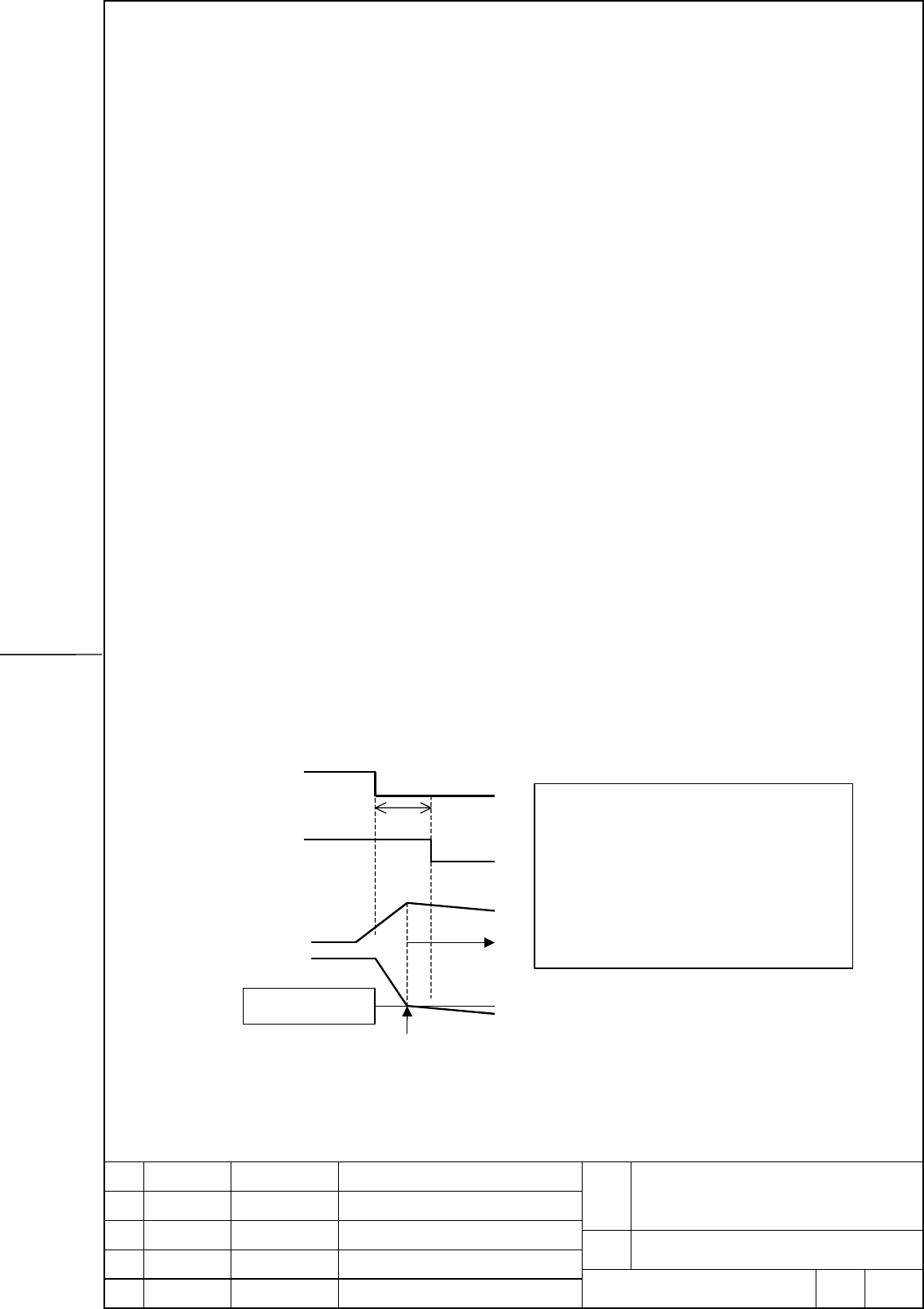

SV Input Voltage

Power failure

detect signal

Motor speed

DC link voltage

cceleration

8msec ~ 17msec

Low voltage alarm

Of DC link

power failure detecting signal is outputted

from

βi

SV behind time 8msec~17msec afte

power failure occur. When the output powe

of motor is large by acceleration, DC link

voltage falls rapidly. So, even if power failure

is detected, DC link low voltage alarm may be

occurred.

larm occurred
