Series 15i/150i-MB Operators manual Page 149

Operators manual

Page of 640

/ 640

B-63784EN-1/01 OPERATION 4.AUTOMATIC OPERATION

- 127 -

4.7 PROGRAM RESTART

This function specifies Sequence No. of a block (number of blocks

between the top of the program and the block to be restarted) to be

restarted when a tool is broken down or when it is desired to restart

machining operation after a day off, and restarts the machining

operation from that block. It can also be used as a high-speed program

check function.

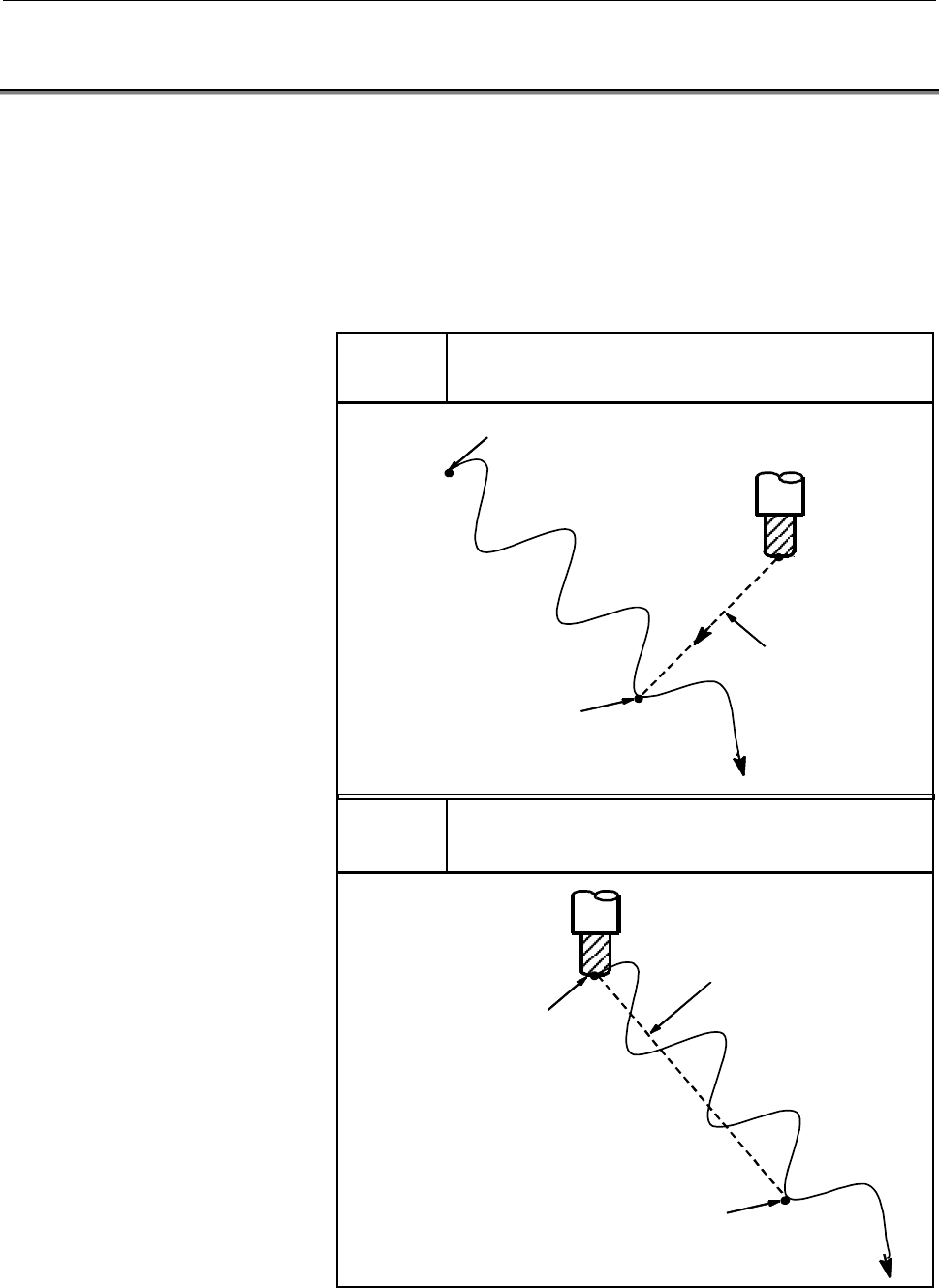

There are two restart methods: the P-type method and Q-type method.

P TYPE

Operation can be restarted anywhere. This restart method is used

when operation is stopped because of a broken tool.

Program start point (machining start point)

Restart position

Return operation

Q TYPE

Before operation can be restarted, the machine must be moved to

the programmed start point (machining start point)

Program start point

(machining start point)

Restart position

Return operation
