1.INVESTIGATION OF TROUBLE GENERATION SITUATION MAINTENANCE B-63784EN-1/01

- 606 -

1.2 SYSTEM LOG SCREEN

When a system alarm is issued, displayed information is recorded in

backup memory. The recorded information can then be checked and

downloaded to a memory card and host computer even after the

machine is started again.

Display

Follow the procedure described in Section II-2.3, 2.5, "System" to

display the system log screen. The displayed information is almost the

same as that displayed on the system alarm screen.

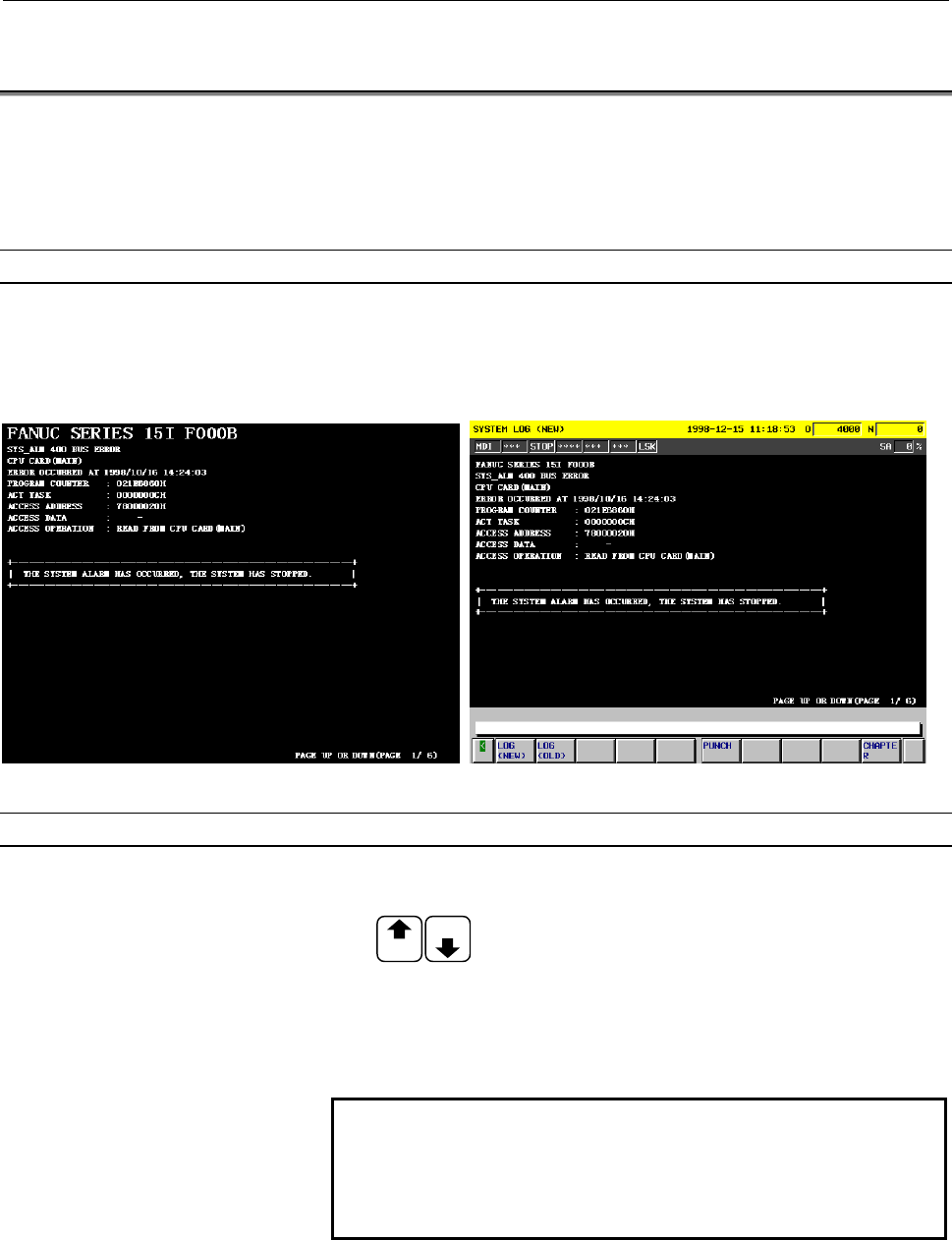

Fig.1.2 (a) Examples of the System Alarm Screen (Left) and System Log Screen (Right)

Selecting display data

Page change

Use

PAG E

the page keys to display the previous and next pages.

Selecting a system log

The past two system logs are recorded. To change the displayed system

log, use the [LOG (NEW)] or [LOG (OLD)] soft key.

NOTE

When no system log has been saved into backup

memory, the message "NO LOG DATA" is displayed.

If the data saved into backup memory is illegal, a

message "CAN NOT DISP LOG DATA" is displayed.
