B-63784EN-1/01 OPERATION 10.DISPLAY

- 509 -

- Switching the position information type in the actual position display

In the actual position display, the type of position information

displayed can be switched.

In the sub screen edit state, click soft key [SELECT POS].

The title of the position information type on the sub screen changes to

yellow reverse video.

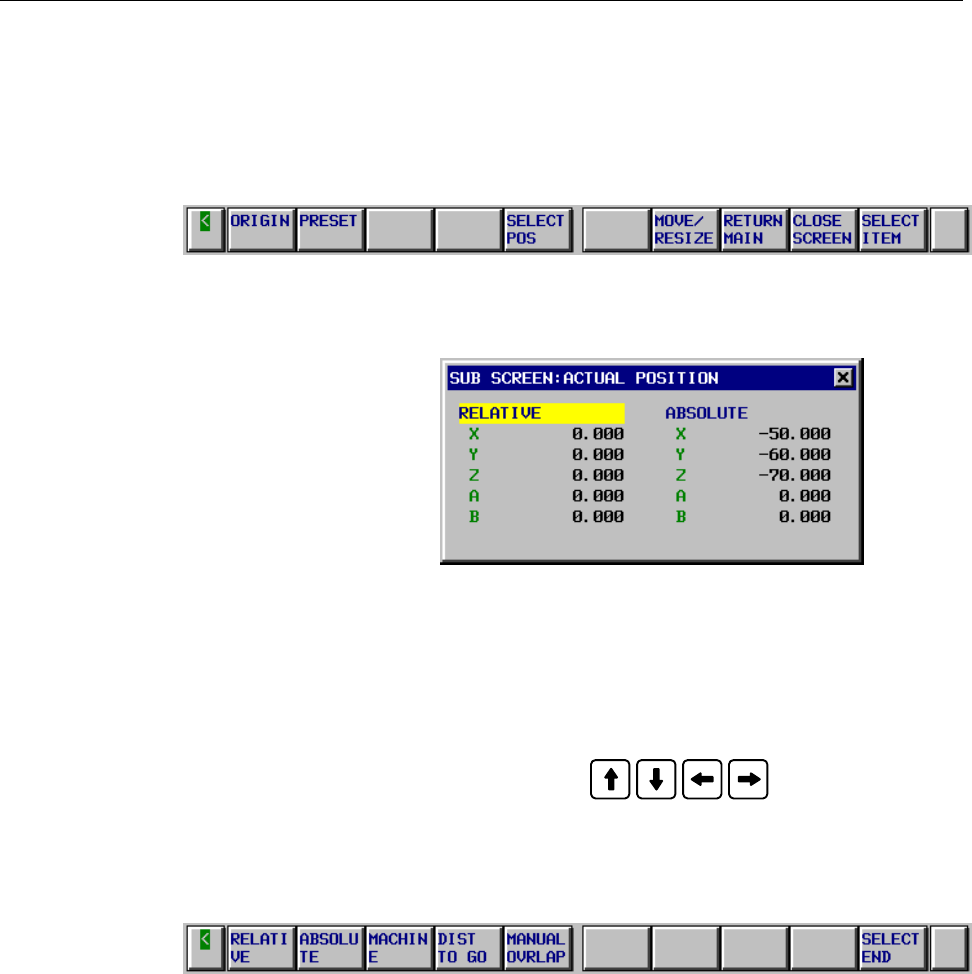

Fig. 10.14 (p) Actual Position

(Title Displayed in Yellow Reverse Video)

In this state, select the desired position information type by clicking the

corresponding soft key.

If multiple types of position information are displayed on the

sub screen, use cursor keys to select the

object of operation. The title of the position information type selected

as the object of operation turns to yellow reverse video.

To end selection, click soft key [SELECT END].
