10.DISPLAY OPERATION B-63784EN-1/01

- 460 -

Graphic shift/enlarge

After a tool path has been drawn on the tool path drawing screen, it is

possible to shift the center of drawing and enlarge part of the drawing.

The shift and enlarge operations cannot be performed while a tool path

is being drawn.

Graphic shift

The center of drawing can be shifted. In addition, the scale factor can

be changed. Thus, the drawing can be enlarged/reduced, with any

position as the center.

- Procedure

(1) Press the [SHIFT] soft key.

A red cursor is displayed at the center of the screen, and the soft

key display changes.

(2) Use the [↑][↓][→][←] soft keys to move the red cursor to a new

center of drawing.

(3) To change the scale factor, set the relative scale factor.

Key in a value within the range of 0.01 to 100 and press the

[INPUT] soft key. The entered value is displayed in the

"Relative" field located in the center right portion of the screen.

(4) Press the [SET END] soft key to end the procedure.

Then, press the [ERASE] soft key to make the graphic shift

settings effective. Drawing is now possible with the new settings.

- Relative scale factor

The relative scale factor is relative to the scale factor currently set for

the appropriate graphic parameter.

For example, if a tool path that has been drawn is to be redrawn twice

as large, the relative scale factor must be set to 2.00.

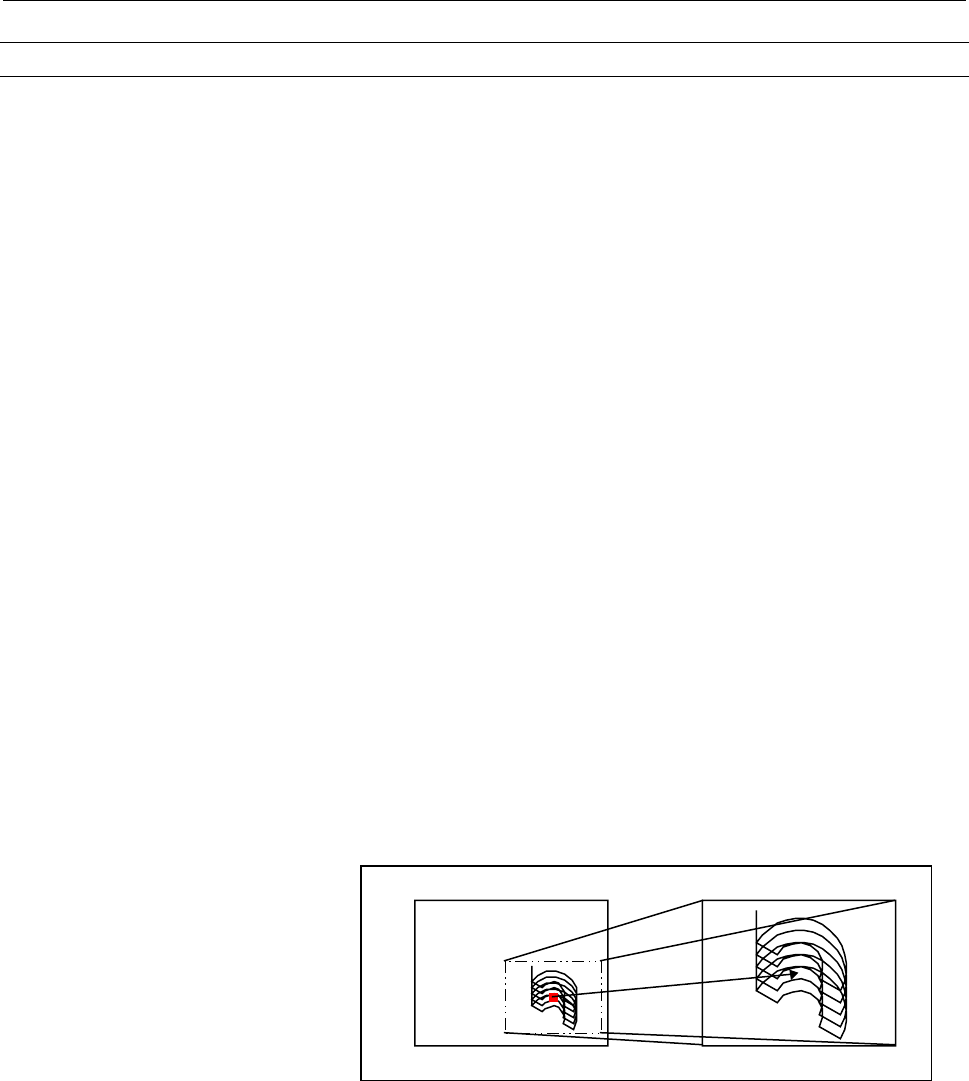

Before graphic shift

fter graphic shif

Fig.10.8 (h) Graphic Shift (Relative Scale Factor = 2.00)
