B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 399 -

Setting of parameters of axis type on an axis-by-axis basis

When an item of a parameter of axis type is specified on the adjustment

screen, the same value is set for all axes except an axis specified by bit

7 (NFF) of parameter No. 1009. The display indicates a setting for the

first axis.

When a different value is to be set for each axis, enter data on the

parameter screen. (A parameter number check can be made using the

[AUX] soft key.) If a different value is set for each axis, an asterisk (*)

is prefixed to the numeric value indication of each item.

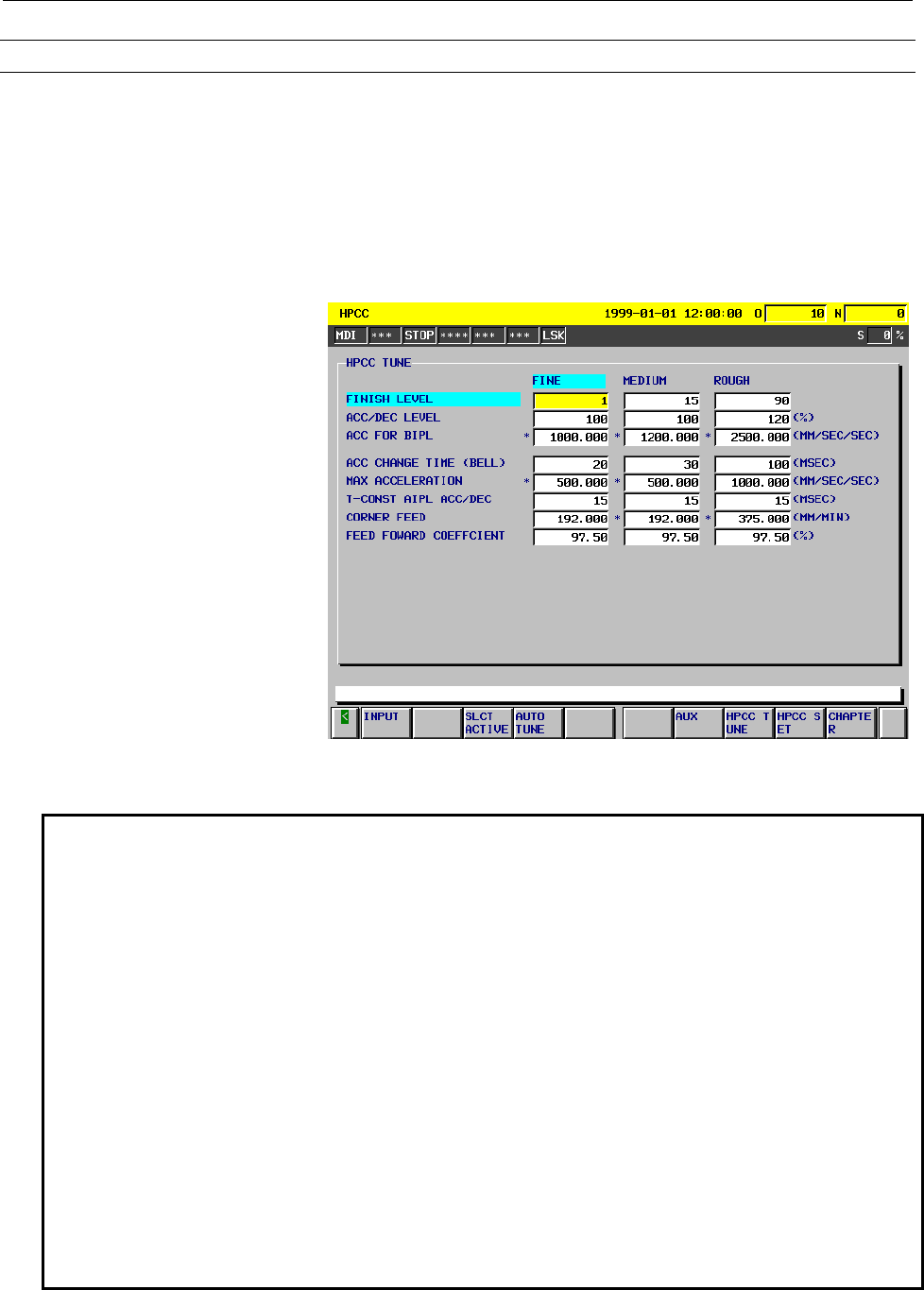

Fig. 9.18 (d) Example of Setting on an Axis-by-Axis Basis

Note

NOTE

1 Settings made in automatic setting or automatic adjustment are only guideline

values. The actual error may differ from that expected due to causes such as a

servo system delay.

2 If the gear reduction ratio of a rotation axis is very large, an overflow may occur in

feed-forward calculation by the servo software, resulting in an alarm (rotation axis

digital servo parameter error) immediately after automatic adjustment. In such a

case, set bit 4 of parameter No. 1804 for the axis to 1.

3 If vibration occurs on an axis after automatic setting, set bit 4 of parameter No.

1884 for the axis to 0. In a very rare case, vibration may occur as a result of the

machine characteristics when bit 4 of parameter No. 1884 is set to 1.

4 If parameter No. 1518 is set to specify a lower feed-forward coefficient limit in

automatic adjustment, the lower limit value is always used when a finish above a

certain level is specified. For this reason, values such as a time constant after

interpolation calculated using the feed-forward coefficient become identical.

Thus, automatic adjustment can produce the same results even though a

different finish level is specified. In such a case, set parameter No. 1518 to 0,

then make another automatic adjustment.
