5.TEST OPERATION OPERATION B-63784EN-1/01

- 186 -

5.3 SINGLE BLOCK

Pressing the single block switch starts the single block mode. When the

cycle start button is pressed in the single block mode, the tool stops

after a single block in the program is executed. Check the program in

the single block mode by executing the program block by block.

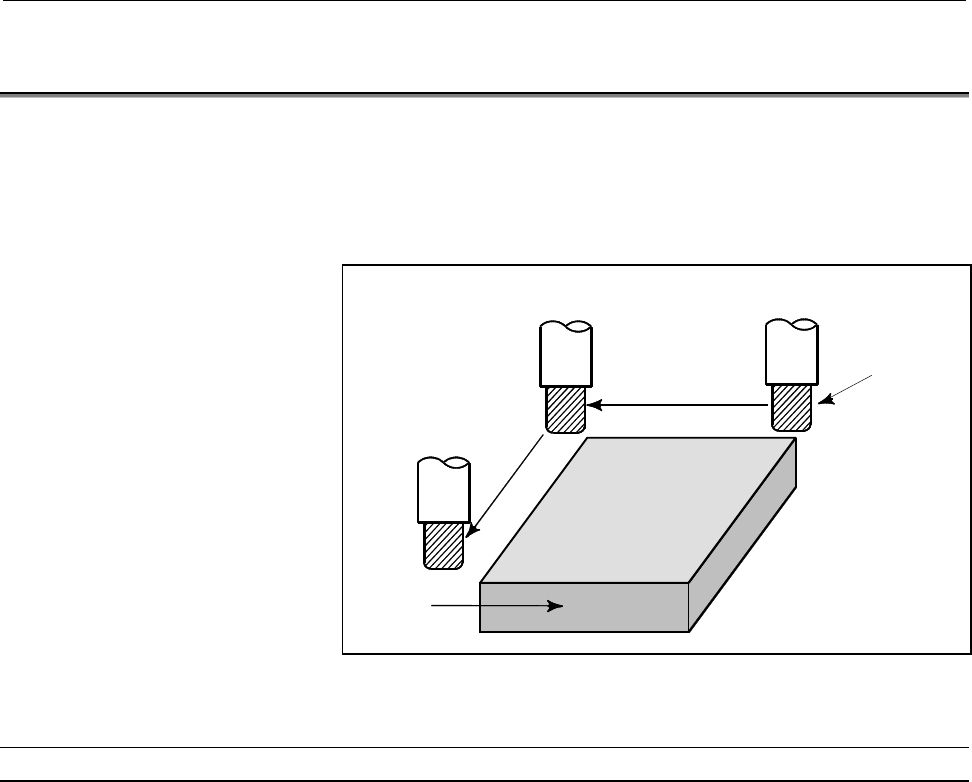

Fig.5.3 (a) Single block

Procedure for Single block

Procedure

1 Press the single block switch on the machine operator's panel.

The execution of the program is stopped after the current block is

executed.

2 Press the cycle start button to execute the next block. The tool

stops after the block is executed.

Refer to the appropriate manual provided by the machine tool

builder for single block execution.

Explanation

- Reference position return and single block

If G28 to G30 are issued, the single block function is effective at the

intermediate point.

Tool

Cycle start

Stop

Workpiece

Cycle start
