B-63784EN-1/01 OPERATION 10.DISPLAY

- 499 -

10.14 SUB SCREENS

On the currently displayed CNC screen (referred to as the main screen

in the remainder of this manual), a sub screen can be displayed.

This allows the user to perform the following:

- Display the actual position on the parts count/run time display

screen

- Display the currently executed program on the tool path drawing

screen

- Display a description of the alarm that has been generated during

the execution of a program while keeping the program or program

check screen displayed

On a sub screen, items such as the actual position, the program

currently being executed, the tool offset values, and alarms can be

displayed. For details of the display items, see "2. Display items."

The display position and size of a sub screen can generally be set as the

user desires, although some limitations apply. Simple operations can

be performed on a sub screen. For example, the origin preset operation

can be performed in the actual position display on a sub screen. Note,

however, that complicated operations such as program editing cannot

be performed on the program display.

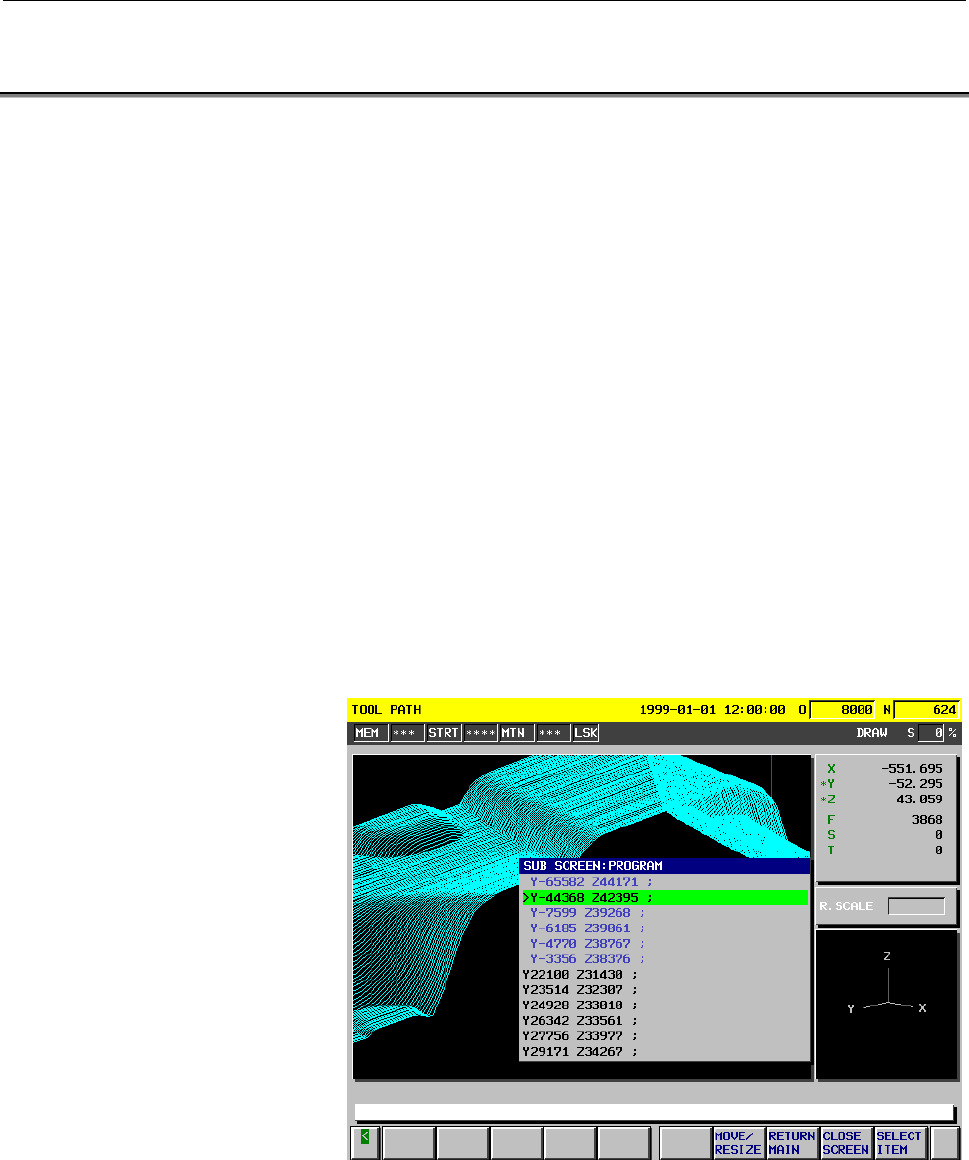

Fig. 10.14 (a) Sub Screen (Contents of the Program Displayed on the

Tool Path Drawing Screen)
