Series 15i/150i-MB Operators manual Page 178

Operators manual

Page of 640

/ 640

4.AUTOMATIC OPERATION OPERATION B-63784EN-1/01

- 156 -

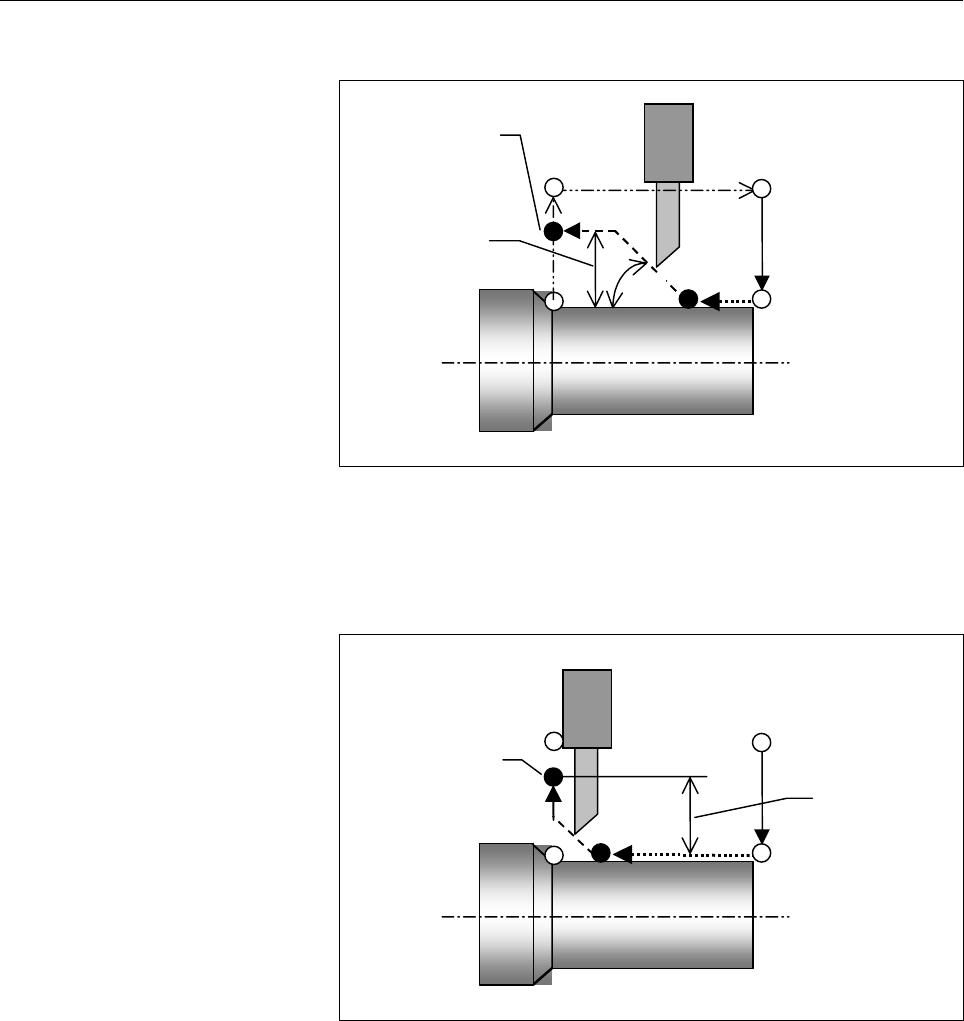

(1) When the remaining thread cutting amount ≥ retract amount

When the tool does not travel beyond thread cutting end

point (c), where the tool moves off the workpiece at an angle

of 45° by the retract amount, the tool moves to the thread

cutting end point after being moved off the workpiece.

(2) When the remaining thread cutting amount < retract amount

When the tool travels beyond thread cutting end point (c),

where the tool is moved off the workpiece at an angle of 45°

by the retract amount, the retract axis moves to the retract

position after arriving at the thread cutting end point.

45°

Retract position

Retract amount

Retract position

Retract amount
