B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 341 -

Operation example 2. When a local coordinate system (G52) is set

When an operation is performed so that the current position (machine

coordinates: X50.000, Y150.000) is the origin of workpiece coordinate

system No. 1 (provided that the common workpiece origin offset is 0 for

X and Y)

Before setting

No. 00 (common)

X 0.000

Y 0.000

No.01 (G54)

X 200.000

Y 50.000

Machine coordinates

X 50.000

Y 150.000

Absolute coordinates

X -100.000

Y 50.000

After setting

No. 00 (common)

X 0.000

Y 0.000

No.01 (G54)

X 100.000

Y 100.000

Machine coordinates

X 50.000

Y 150.000

Absolute coordinates

X 0.000

Y 0.000

The origin of the new G54 workpiece origin offset is not located at the

current position but shifted from the position by the local coordinate

offset set with G52. In other words, the local coordinate system (G52)

is not canceled even if the workpiece origin is set manually.

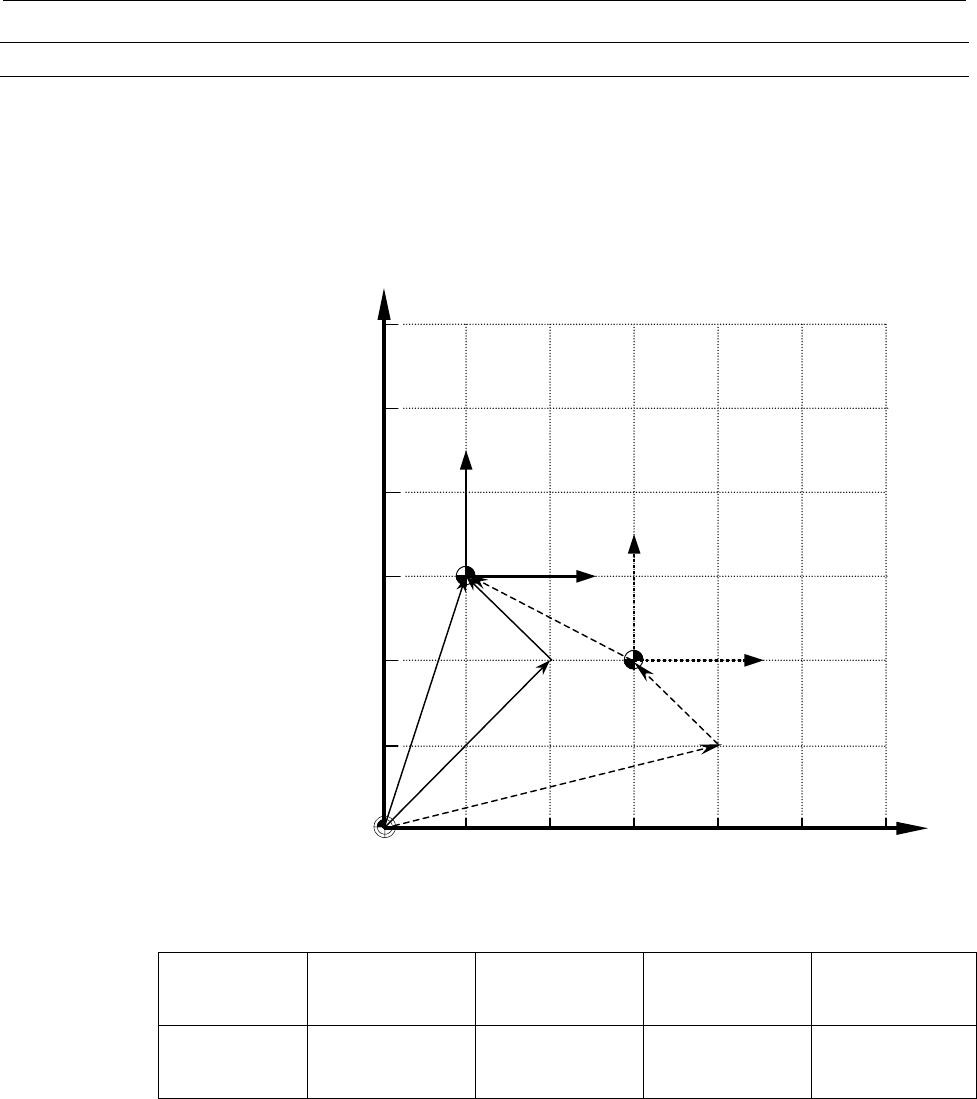

50 100 150 200 250 300

300

250

200

150

100

: Original G54 workpiece origin

B: New G54 workpiece origin offset

C: Machine coordinate display

D: Original absolute coordinate

E: Local coordinate offset (no change)

F: Original local coordinate system origin

G: New local coordinate system origin

Current position

Machine zero point
