B-63784EN-1/01 OPERATION 9.SETTING AND DISPLAYING DATA

- 347 -

Description

- Definition of the tool length offset

The tool length offset can generally be defined in two methods, as

described below. The two methods share a single view that a tool

length offset is the distance between the tool tip of a target tool and the

tool tip of a reference tool.

(1) Method 1

The actual tool length is used as the tool length offset. In this

method, the reference tool is a virtual tool of which tip is on the

machine zero point when the machine is on the zero point on the

Z-axis of the machine coordinate system. The tool length offset is

the difference between the tool tip position of the target tool and

the tool tip position of the reference tool, or the distance along the

Z-axis between the machine zero point and the tool tip position of

the target tool when the machine is at the machine zero point of the

Z-axis.

When a tool length is measured, the tool is manually moved until

the tool tip comes into contact with the top surface of a workpiece

or reference block. This surface is referred to as the measurement

surface. This measurement surface cannot be the top surface of

the machine table because doing so would cause the machine to be

damaged. However, suppose that the top surface of the machine

table is used as the measurement surface. The distance between

the machine zero point and the top surface of the machine table is

a machine-specific value that is referred to as distance L. Given

that distance L is set in parameter 6024 and that the measurement

surface is the top surface of the machine table, tool length offset

OFSL can be easily obtained from L and the machine coordinates

Zt of the tool when the tool touches the top surface of the machine

table. Since the actual measurement surface cannot be the top

surface of the machine table, the top surface of the machine table

is defined as a reference measurement surface, and the distance

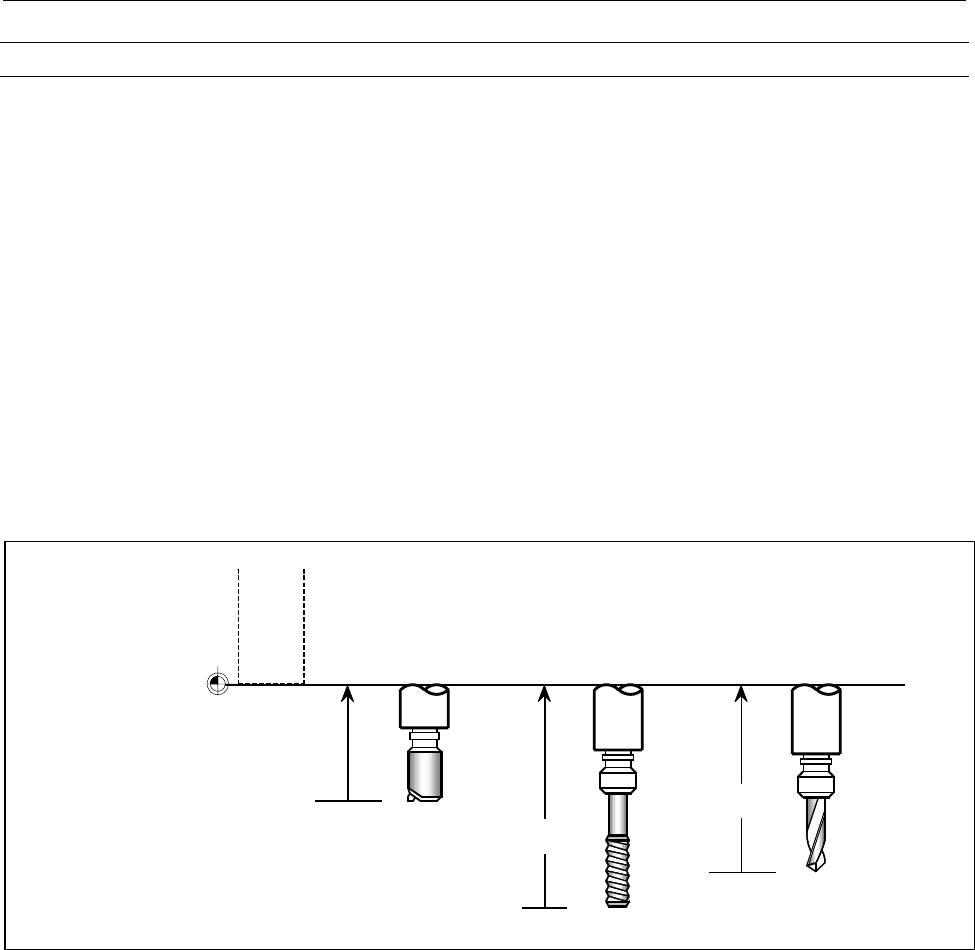

Referen

ce tool

(Tool tip position of

reference tool)

Machine zero point

OFSL03

OFSL02

OFSL01: Tool length offset of tool T01

OFSL02: Tool length offset of tool T02

OFSL03: Tool length offset of tool T03

OFSL01

Tool

T01

Tool

T02

Tool

T03
