B-63784EN-1/01 OPERATION 3.MANUAL OPERATION

- 65 -

3.2 JOG FEED

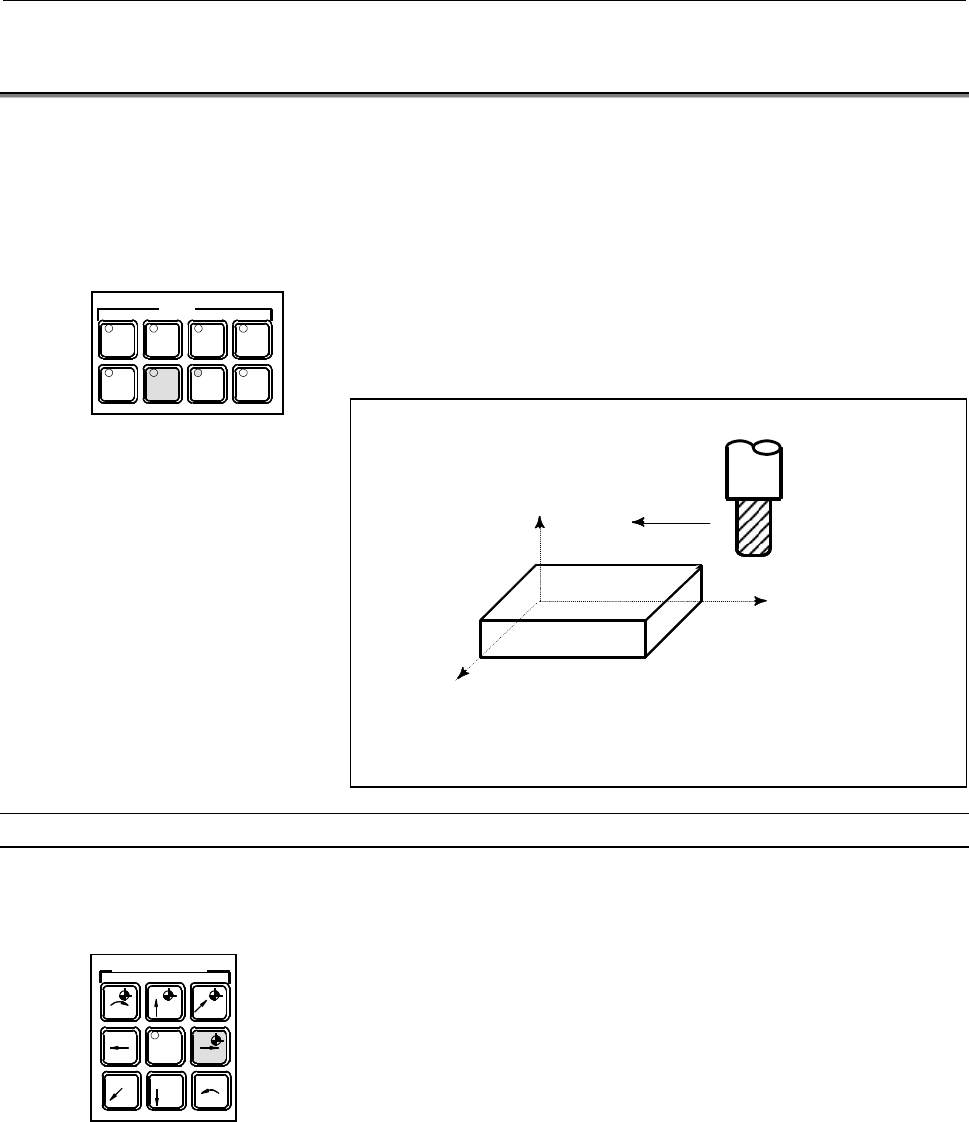

In the jog mode, pressing a feed axis and direction selection switch on

the machine operator's panel continuously moves the tool along the

selected axis in the selected direction.

The jog feedrate is specified in a parameter (No.1423)

The jog feedrate can be adjusted with the jog feedrate override dial.

Pressing the rapid traverse switch moves the tool at the rapid traverse

feedrate (No.1420) regardless of the position of the jog feedrate

override dial. This function is called the manual rapid traverse.

Procedure for JOG feed

Procedure

1 Press the jog switch, one of the mode selection switches.

2 Press the feed axis and direction selection switch corresponding to

the axis and direction the tool is to be moved. While the switch is

pressed, the tool moves at the feedrate specified in a parameter

(No. 1423). The tool stops when the switch is released.

3 The jog feedrate can be adjusted with the jog feedrate override

dial.

4 Pressing the rapid traverse switch while pressing a feed axis and

direction selection switch moves the tool at the rapid traverse rate

while the rapid traverse switch is pressed. Rapid traverse override

by the rapid traverse override switches is effective during rapid

traverse.

While a switch is pressed the tool

moves in the direction specified

by the switch.

REMOTE MDIMEMORYEDIT

ZERO

RETURN

JOG

HANDLE

+C +Z +Y

+X-X

-Y -Z

RAPID

DIRE
