B-70265EN/02 7.UNITS

- 177 -

7.12.2.2 For C2000-E, C4000-E, C5000-E, and C6000-E

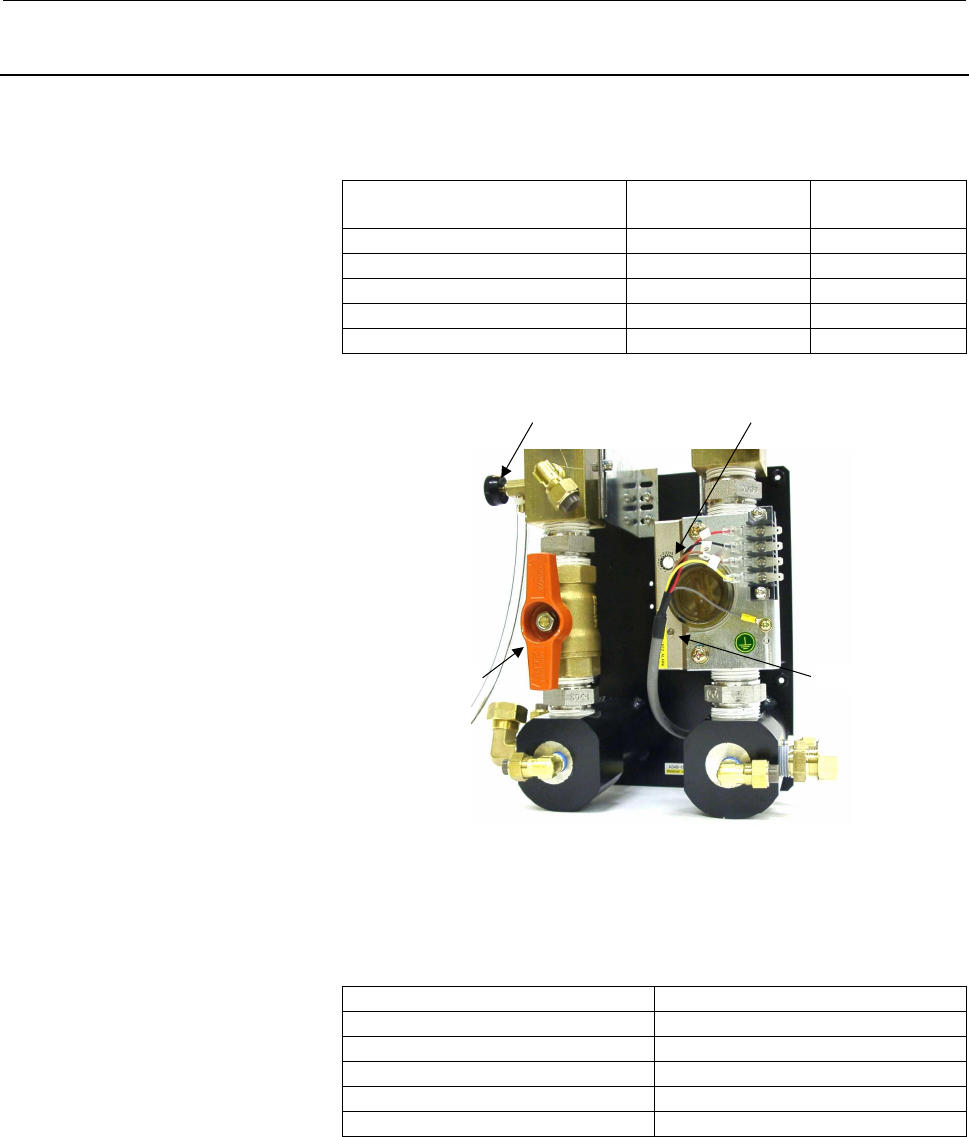

(1) Adjust the flow rate of cooling water flowing into the oscillator

to an alarm setting flow rate. Use a flowmeter with a proper and

accurate rated flow rate.

Model

Alarm setting flow

rate

Rated flow rate

C2000-E 50 liters/minute 75 liters/minute

C4000-E 120 liters/minute 160 liters/minute

C5000-E 120 liters/minute 160 liters/minute

C6000-E (A: Maintenance side) 95 liters/minute 125 liters/minute

C6000-E (B: Rear side) 95 liters/minute 125 liters/minute

(2) Check that the LED (green) of the flow sensor is turned on.

djustment volume

Cock LED

Drain valve

(3) Adjust the knob of the flow sensor to a minimum level where the

LED (red) is turned on.

(4) Open the valve at the chiller outlet, make an adjustment to the

alarm-off setting flow rate, and check that the red LED of the

water flow sensor is turned on.

Model Alarm-off setting flow rate

C2000-E 55 liters/minute

C4000-E 125 liters/minute

C5000-E 125 liters/minute

C6000-E (A) 105 liters/minute

C6000-E (B) 105 liters/minute

(5) Close the valve again, make an adjustment to the alarm setting

flow rate, and check that the red LED of the water flow sensor is

turned on.
