B-70265EN/02 8.LASER OPTICAL SYSTEM
- 215 -
(4) (5)
(3)
(2)

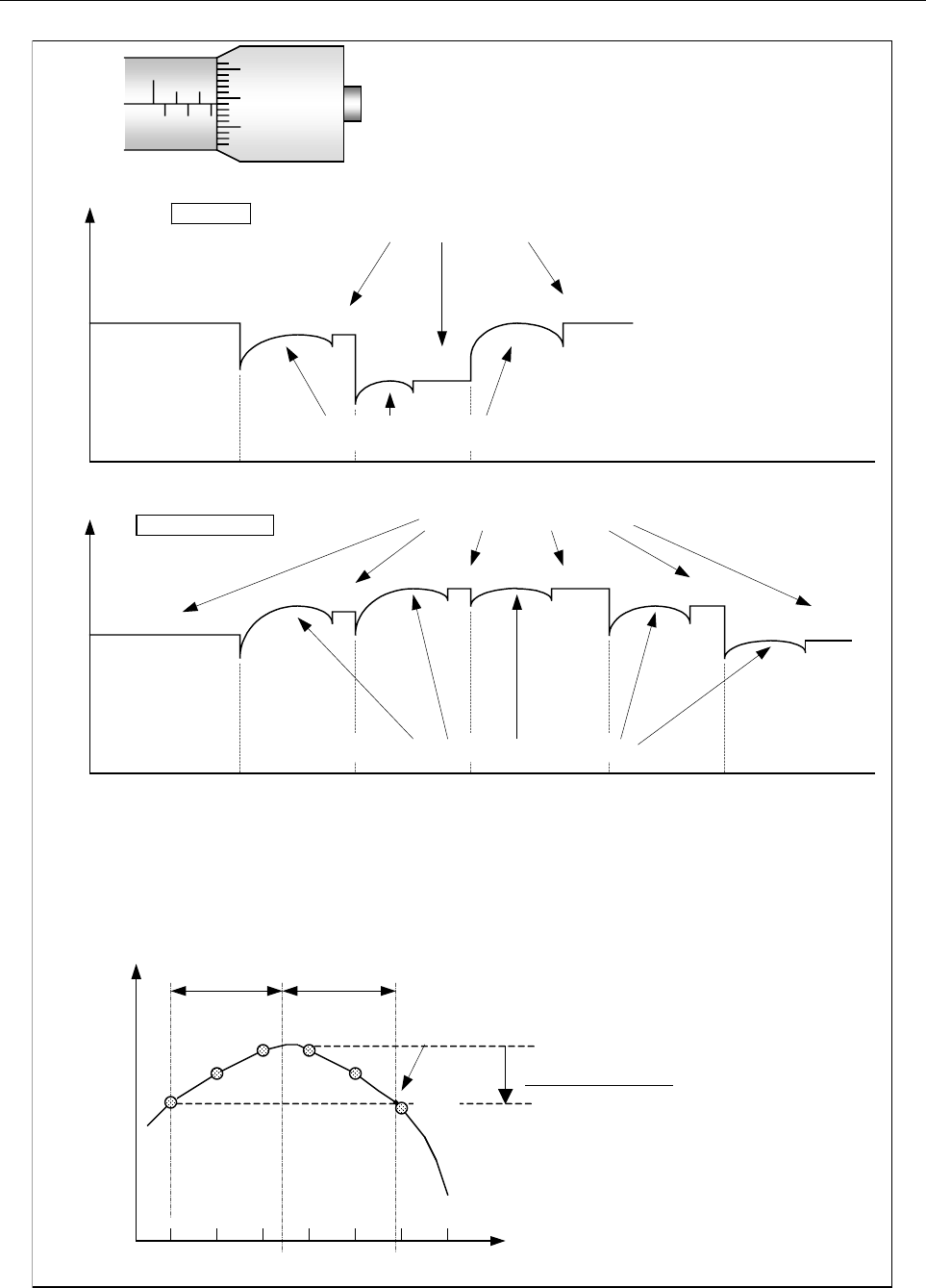

In (3), the power is decreased,
indicating that the direction is wrong.
So, in (5), the adjustment screw is
returned to the original position.
(1)
(6)
(7) (8)
(9)
(10)
A=7.580 A=7.570 A=7.590
A=7.600 A=7.610 A=7.620 A=7.630 A=7.640
A=7.590
Counterclockwise
(1)
Power
Power
5 15
10
5
Initial setting of A = 7.590
Clockwise
B is adjusted to obtain a maximum power.
Same state as (1)
(10)
(6)
Power
A=7.650 A=7.590
(1)
(7)
(8)
(9)
(1’)
A=7.638A=7.614
B is adjusted to obtain a maximum power.
A maximum power is obtained based on B.
Maximum power position of A
= (7.590+7.638) / 2
= 7.614
Do not determine the maximum power position of A at the actual maximum power point (peak point).
Instead, find the first position (1)' with the same power after a peak, and set a position halfway between (1)
and (1)'. Adjust B to obtain a maximum power at that position.
A maximum power is obtained based on B.
30% below peak
