16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 208

Maintenance manual
Connector
Connector
(1) Axis control
card
Connector Connector
(2) Display
control card
(3) CPU card
(4) Power supply unit
No. Name Specification Function Remarks
(1) Axis control card
A20B–3300–0033 Axis control 2 axes
Applicable servo software: Series 9090
A20B–3300–0032 Axis control 4 axes
(21i)
A20B–3300–0243 Axis control 2 axes
Applicable servo software: Series 90B0
A20B–3300–0242 Axis control 4 axes
A20B–3300–0241 Axis control 6 axes
A20B–3300–0240 Axis control 8 axes
A20B–3300–0248 Axis control 4 axes
Applicable servo software: Series 90B0
A20B–3300–0245 Axis control 6 axes
(High–speed HRV)
A20B–3300–0244 Axis control 8 axes
A20B–3300–0246 Learning–control axis
control
Applicable servo software: Series
90B3/90B7
A20B–3300–0247 Learning–control axis
control
Applicable servo software: Series
90B3/90B7 (High–speed HRV)

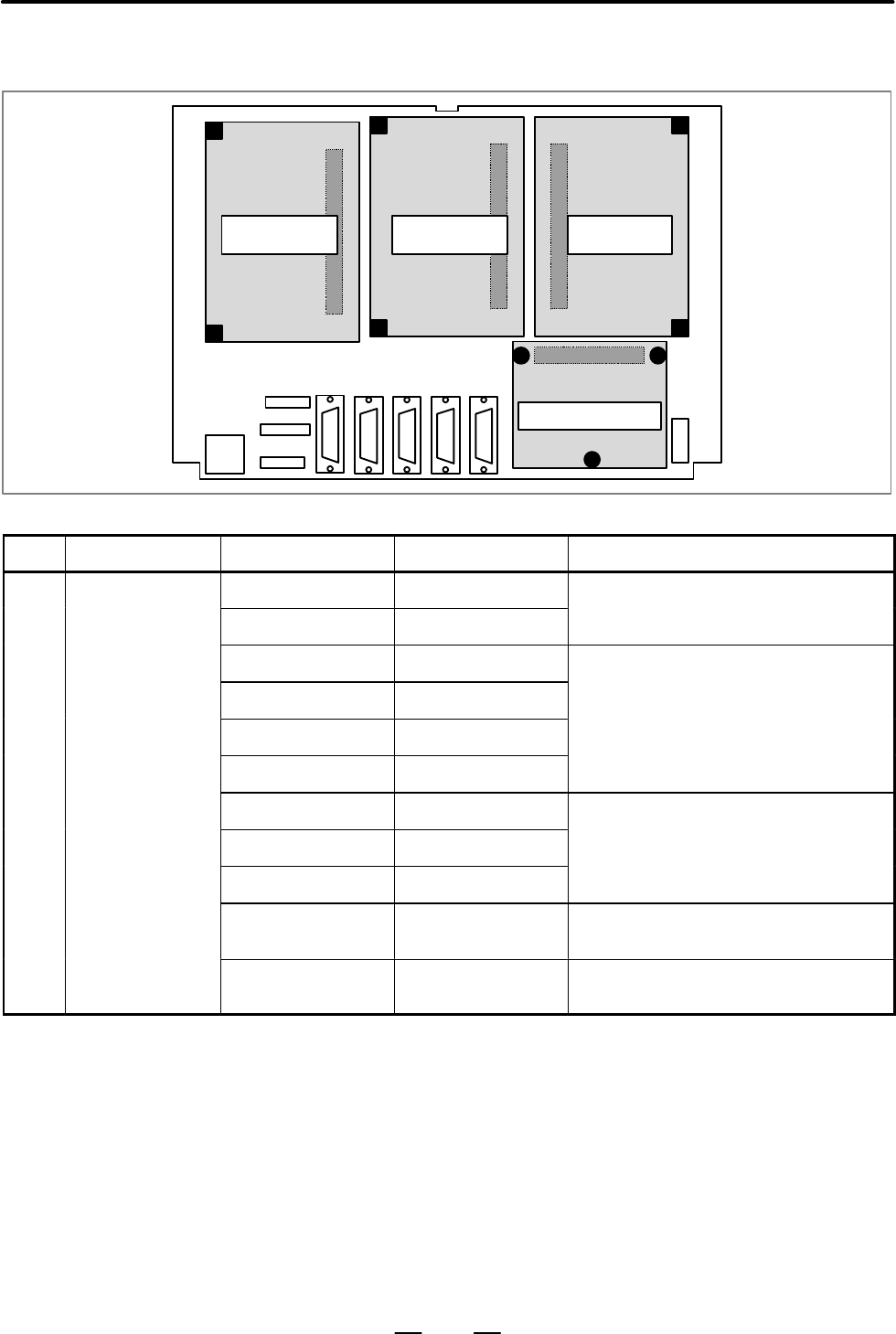

D Card and power supply
mounting location
GFKE-0222-EN
2. LCD–MOUNTED TYPE i SERIES
HARDWARE
178
