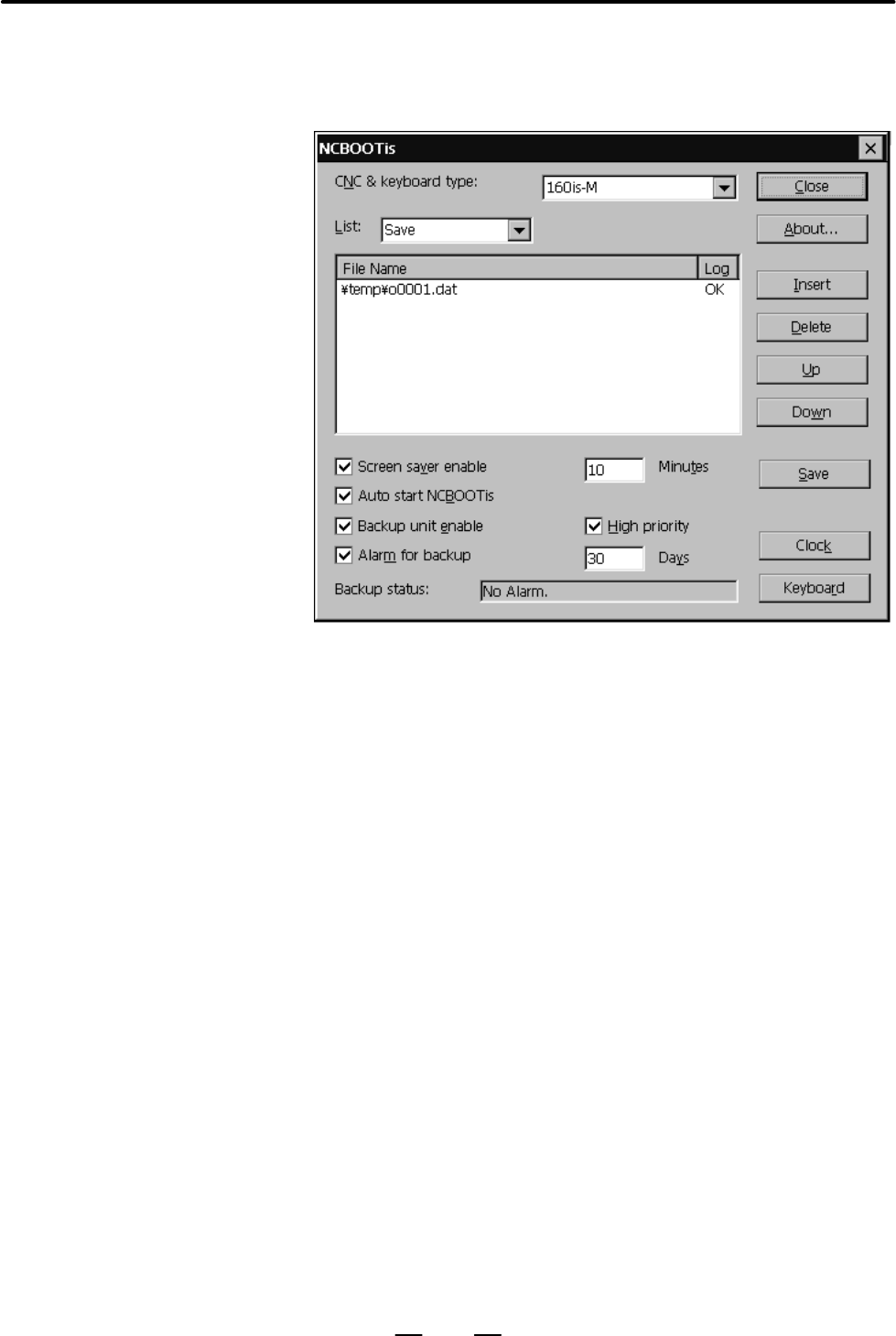

The status screen appears when the system tray icon is double–clicked or

NCBOOTis is restarted. This screen can be used to change the list of files

to save, restore, or start as well as to check the execution result.

To close the screen, press the [Close] button.

[About...] When this button is pressed, the version information screen

appears.

[CNC & keyboard type] This list is used to select the type of the CNC.

[List] This list is used to select the type of registered data to display or edit.

[Save] is used to select the files to be saved during power–down. [Load]

is used to select the files to be restored during power–up. [Start] is used

to select the files to be started during power–up.

[Insert] This button is used to newly register data.

[Delete] This button is used to delete the registered data from the selected

line.

[Up] This button is used to push forward the registration place of the

selected line.

[Down] This button is used to push back the registration place of the

selected line.

[Save] This button is used to save the registered files to the ”\Storage

Card\Backup” folder. When automatic backup failed, restoration is

performed with the files.

[Clock] This button is used to adjust the calendar and clock. It also sets

the time difference (time zone) from Universal Coordinated Time.

[Screen saver enable] When this check box is checked, the screen saver

is enabled.

[Auto start NCBOOTis] When this check box is checked, NCBOOTis

automatically starts the next time.

Status screen

(160is/180is/210is)

GFKE-0222-EN

F. MAINTENANCE OF OPEN CNC

(BOOT–UP AND IPL)

APPENDIX

963
