16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 507

Maintenance manual
D Deleting a contact/coil function instruction
[
]
D Adding/deleting a connection line
[
], [ ], [ ]
D Editing the function instruction data table [TABLE]
D Line/column insertion
[INSLIN], [INSCLM], [APPCLM]
D Changing the address of a contact or coil
“Bit address” + INPUT key
D Changing a function instruction parameter
“Numeric value/byte address” + INPUT key
D Discarding the contents of editing [RESTOR]

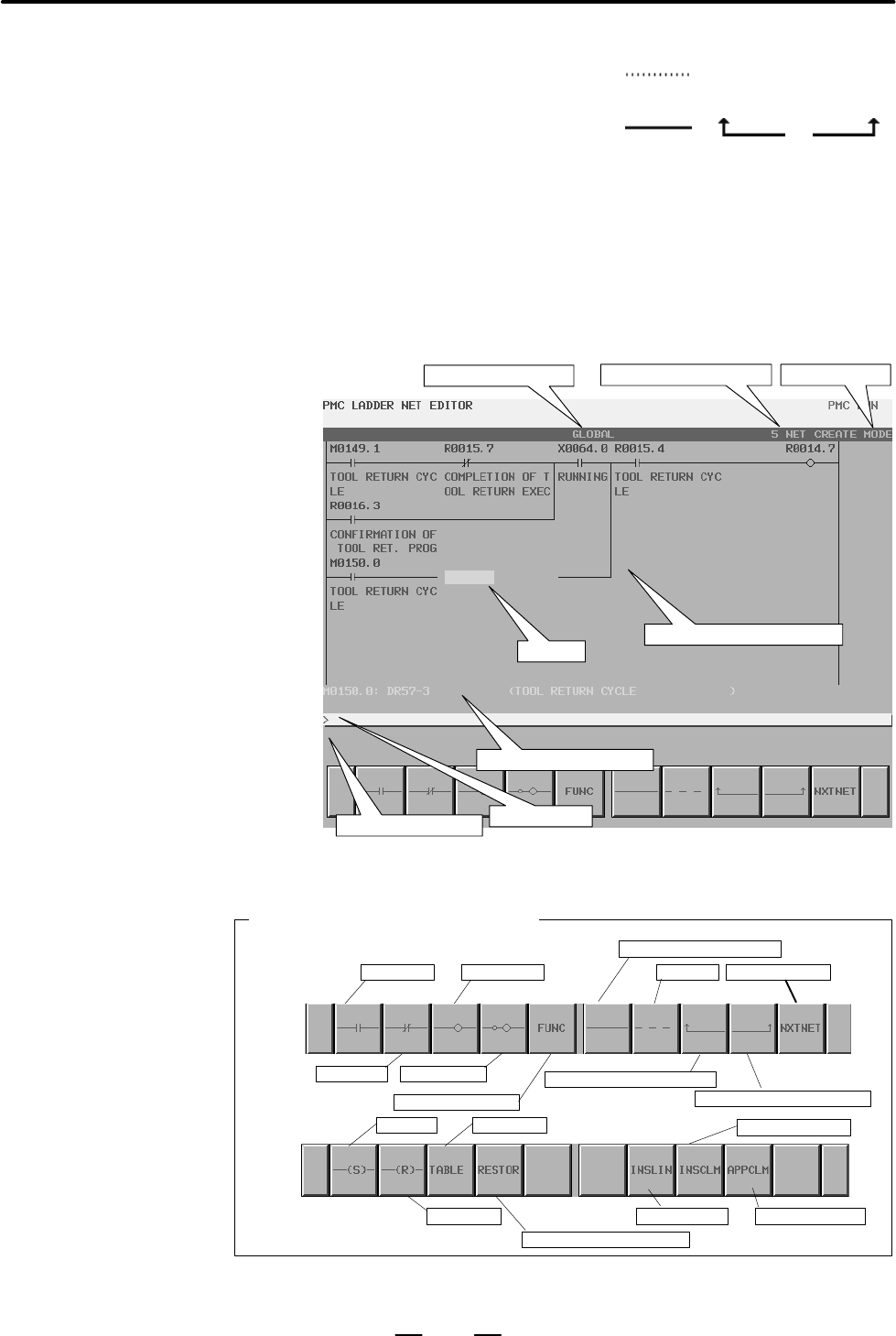

Editing mode
Additional information line
Net number being edited
Display subprogram
Message display line
Key input line
Cursor
Ladder diagram display area
Soft keys on the net editing screen
Contact A Positive coil
Contact B
Deletion
Column insertion
Reset coil
Discarding of modifications
Horizontal connection line
Function instruction
Left vertical connection line
Right vertical connection line
To the next net
Reverse coil
Set coil Data table
Line insertion Column addition
Soft keys on the net editing screen
Screen manipulation
GFKE-0222-EN
7.INTERFACE BETWEEN CNC AND PMC
477
