16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 524

Maintenance manual

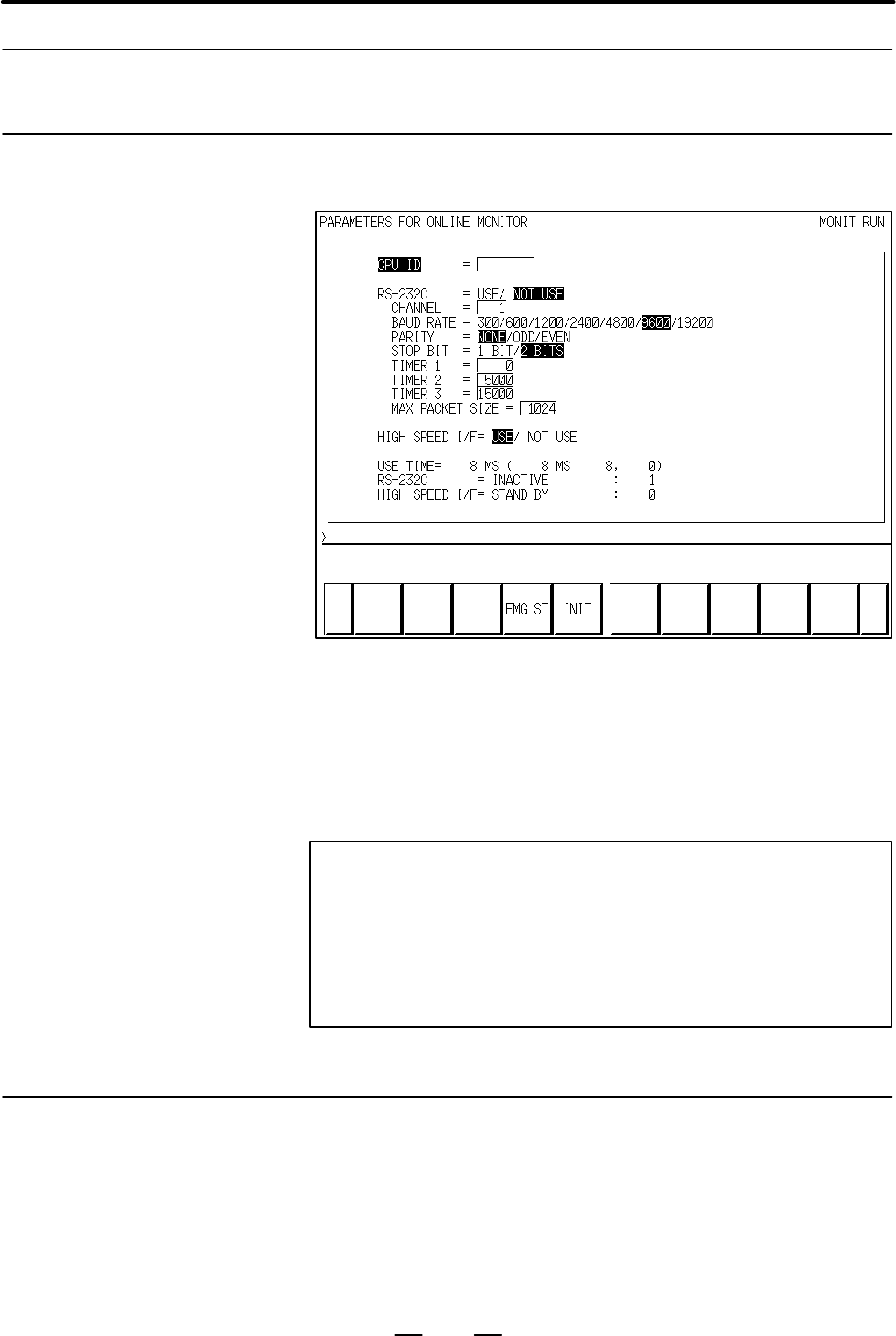

Fig. 7.3.7.1 Online monitor setting screen
Meanings of Soft key
EMG ST: Terminates communication forcibly. Use this key if
communication becomes abnormal and the connection
cannot be terminated normally.
INIT: Initializes the parameters to their default values.
NOTE
1 In case of configuration of CNC with which neither Ethernet
nor HSSB is available, the item of ”HIGH SPEED I/F” is not
displayed.
2 In case of display which has 5+2 soft key, two pages are
used for this setting screen.
Switch the page by < Page Up > or <Page Down> key.
To display the soft key [MONIT] in the PMC main menu screen, set
”PROGRAMMER ENABLE” to ”YES” in the setting screen. When
pushing the soft key [MONIT]→[ONLINE], the online setting screen is
displayed.
1 Case of connection by RS–232C (FAPT LADDER–II, FAPT
LADDER–III)
(1)Check that ”NOT USE” is selected at the ”RS–232C” item.
7.3.7
Online Setting
7.3.7.1
Online setting screen
7.3.7.2
Setting of online
connection
7. INTERFACE BETWEEN CNC AND PMC
GFKE-0222-EN
494
