16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 261

Maintenance manual
WARNING
Before replacing a blown fuse, locate and remove the cause
of the blown fuse.
For this reason, only those personnel who have received
approved safety and maintenance training may perform this
replacement work.
When opening the cabinet and replacing a fuse, be careful
not to touch the high–voltage circuits (marked and fitted
with an insulating cover). Touching the uncovered
high–voltage circuits presents an extremely dangerous
electric shock hazard.

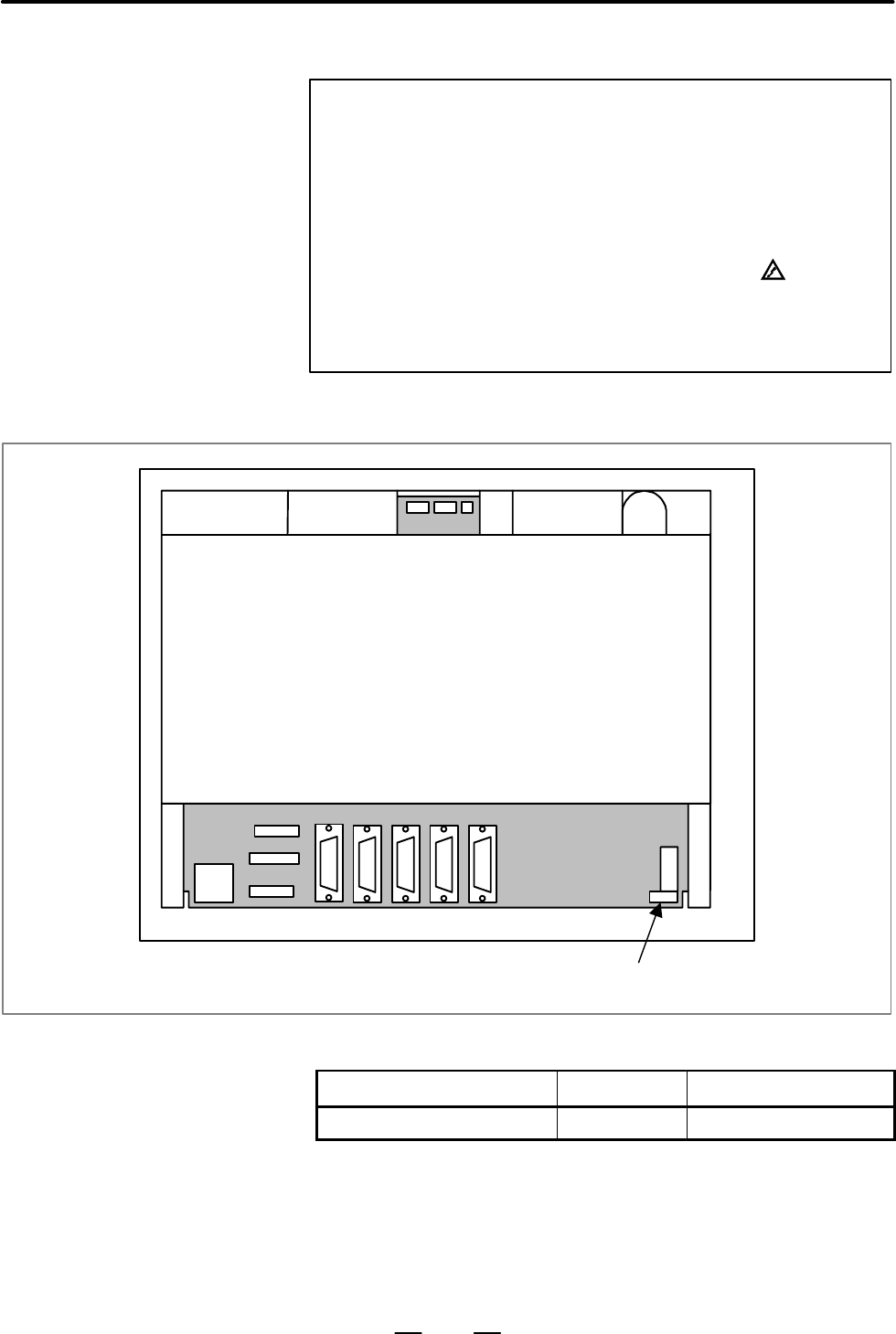

Rear of unit
CP1
Fuse
FUSE
Ordering code Rating Parts specification
A02B–0236–K100 5A A60L–0001–0290#LM50C
2.7
REPLACING FUSE
ON CONTROL UNIT
D Fuse mounting location
D Ordering codes of fuses
GFKE-0222-EN
2. LCD–MOUNTED TYPE i SERIES
HARDWARE
231
