(a) Address setting
On page 2 of the trace parameter setting screen, set the address of a
signal to be sampled.

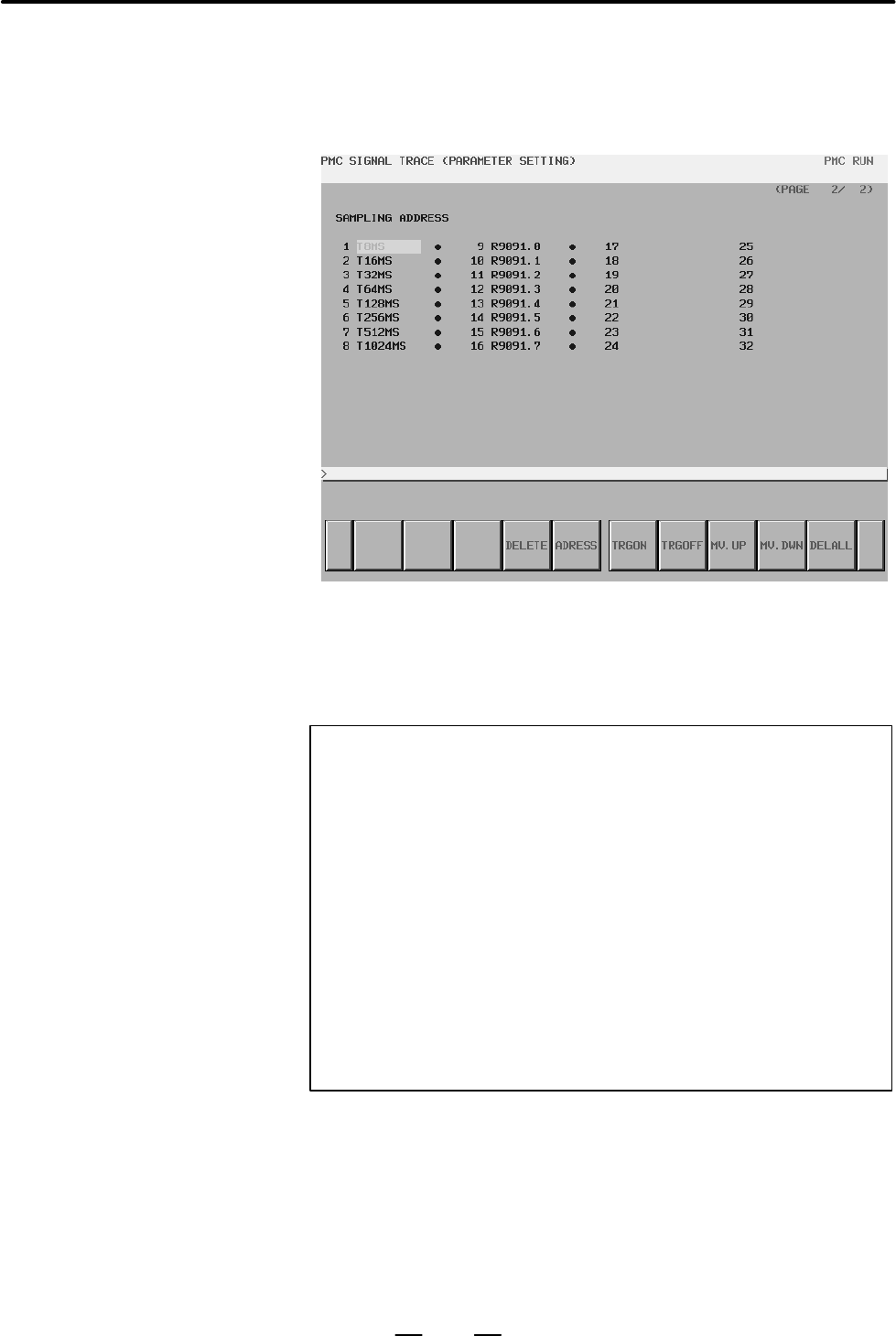

Trace parameter setting screen (page 2)
Specify a bit address for a signal address. If a byte address is input,
bits 0 to 7 of the input address are input. Up to 32 signal address points
can be set.
NOTE
Depending on the number of points of signal addresses
subject to sampling and the sampling resolution, the
maximum allowable input value for the sampling time or
frame increases or decreases.
If the maximum allowable input value becomes smaller than
an existing sampling time or frame value, the message
below is displayed, and the setting is changed. (In the
messages below, xxx represents a maximum allowable
input value.)
a) When a sampling time is set
“The sampling time has decreased to xxx seconds.”
b) When a sampling frame is set
“The sampling frame has decreased to xxx seconds.”
Sampling address
setting
