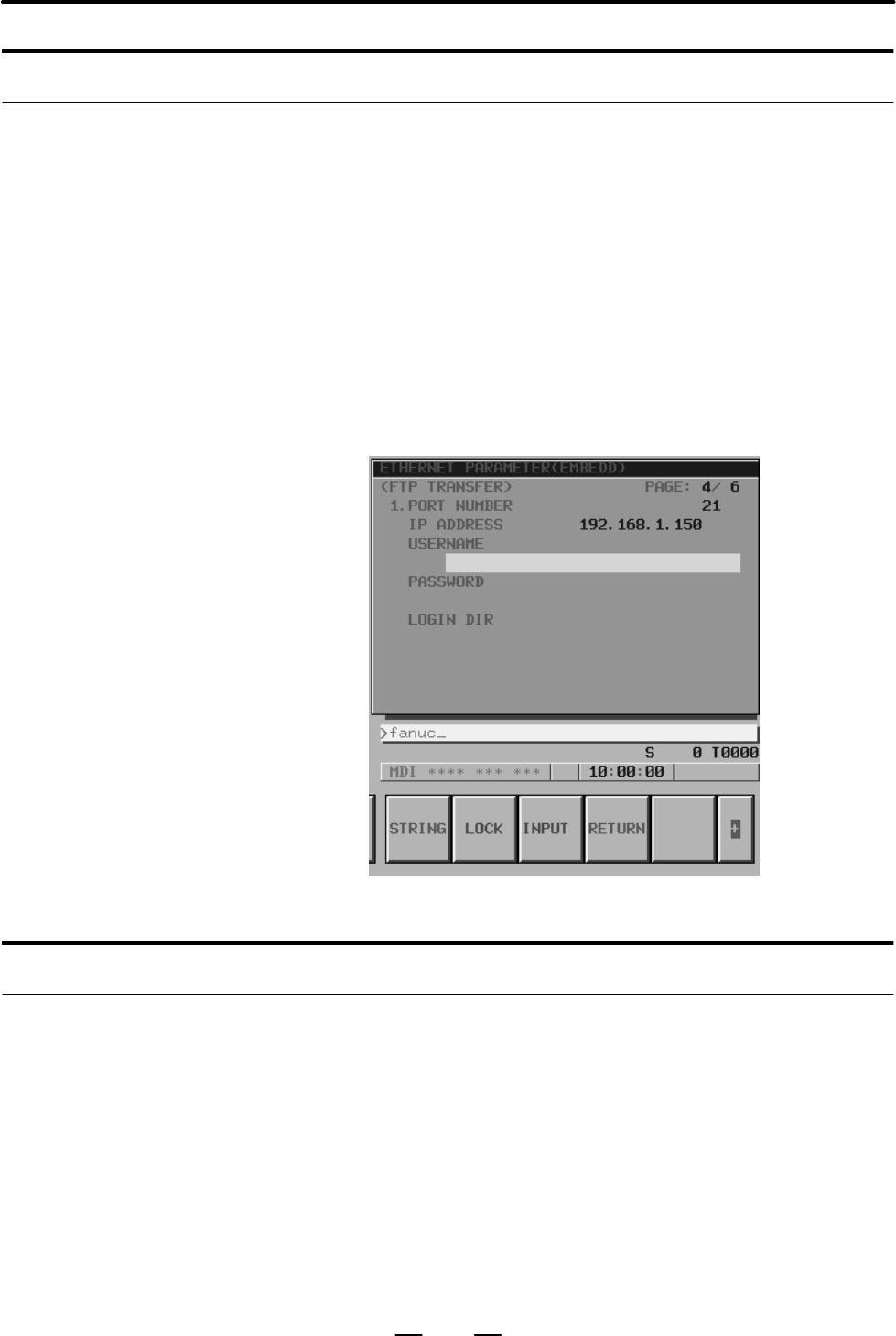

Method of lowercase character input
The method of entering lowercase characters when specifying a user
name, password, and login DIR is described below.
1 Place the CNC in the MDI mode.
2 Display the Ethernet parameter screen.
3 Move the cursor to a desired input item with cursor keys.
4 When the [UNLOCK] soft key is displayed, uppercase characters are
actually entered through MDI keys. For lowercase character input,
press the [UNLOCK] soft key. The soft key display changes from
[UNLOCK] to [LOCK].
5 Then, press the MDI keys A through Z. All of these characters are
entered as lowercase characters.
6 To enter uppercase characters, press the [LOCK] soft key.
Method of entering a long character string
The method of entering a character string longer than 32 characters for
specifying a login DIR is described below.
As an example, the processing for setting the character string
”/NCDATA/NCPROGRAM/LINE001/GROUP002” is described.
1 Place the CNC in the MDI mode.
2 Display the Ethernet parameter screen.
Procedure
Procedure
GFKE-0222-EN
8. EMBEDDED ETHERNET FUNCTION
629
