16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 657

Maintenance manual
When configuring a large network or expanding an existing network,
consult with your network manager to set an IP address, subnet mask, and
router IP address.
This subsection describes the method of parameter input when the
embedded Ethernet function for the Series 16i/18i/21i/160i/180i/210i/
160is/180is/210is–B is used.
Basic method of data input
The basic method of data input is described below, using an example of
IP address input.
1 Place the CNC in the MDI mode.
2 Display the Ethernet parameter screen.
3 Move the cursor to a desired input item with cursor keys.
4 Type data with MDI keys.
5 Press the [INPUT] soft key or the function key
INPUT
to enter the data.
NOTE
When deleting numeric data already set, enter 0. When
deleting character data already set, enter SP (space).

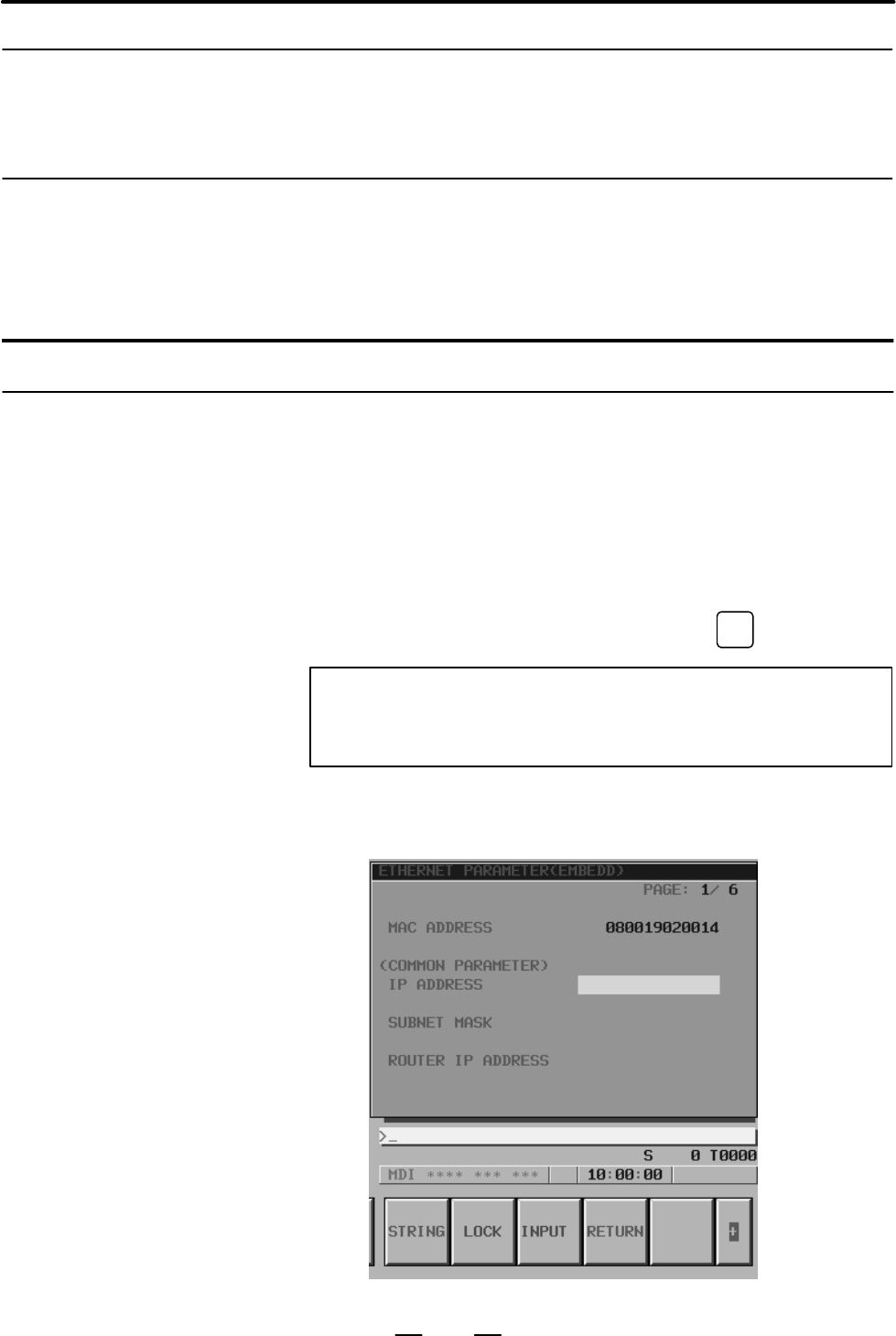

Example) Setting 192.168.1.1 as IP address data
(a) Move the cursor to the item of IP address.
8.3.3.5
Configuring a large
network
8.3.4
Communication
Parameter Input
Method
Procedure
GFKE-0222-EN
8. EMBEDDED ETHERNET FUNCTION
627
