16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 692

Maintenance manual

Page of 1042

/ 1042

This subsection describes how to check the state of communication

between the CNC and personal computer.

Checking the connection status and settings

If communication with the CNC is not satisfactory or fails from time to

time, check the communication link by using the method described

below. The ping command is used to check communication.

See Item 6 of Section 3.2, ”EMBEDDED ETHERNET MAINTENANCE

SCREEN”.

If no response is received from the remote device, the cause is considered

to be a hardware connection error and/or software setting error. Check the

hardware connection and software settings.

An example where a personal computer (OS: Windows NT 4.0) is used

is described below.

Method of checking:

Open the command prompt, then enter ”ping NC–IP–address”. A normal

connection has been established if a response is received.

The example below supposes that the IP address of the CNC is

192.168.1.1.

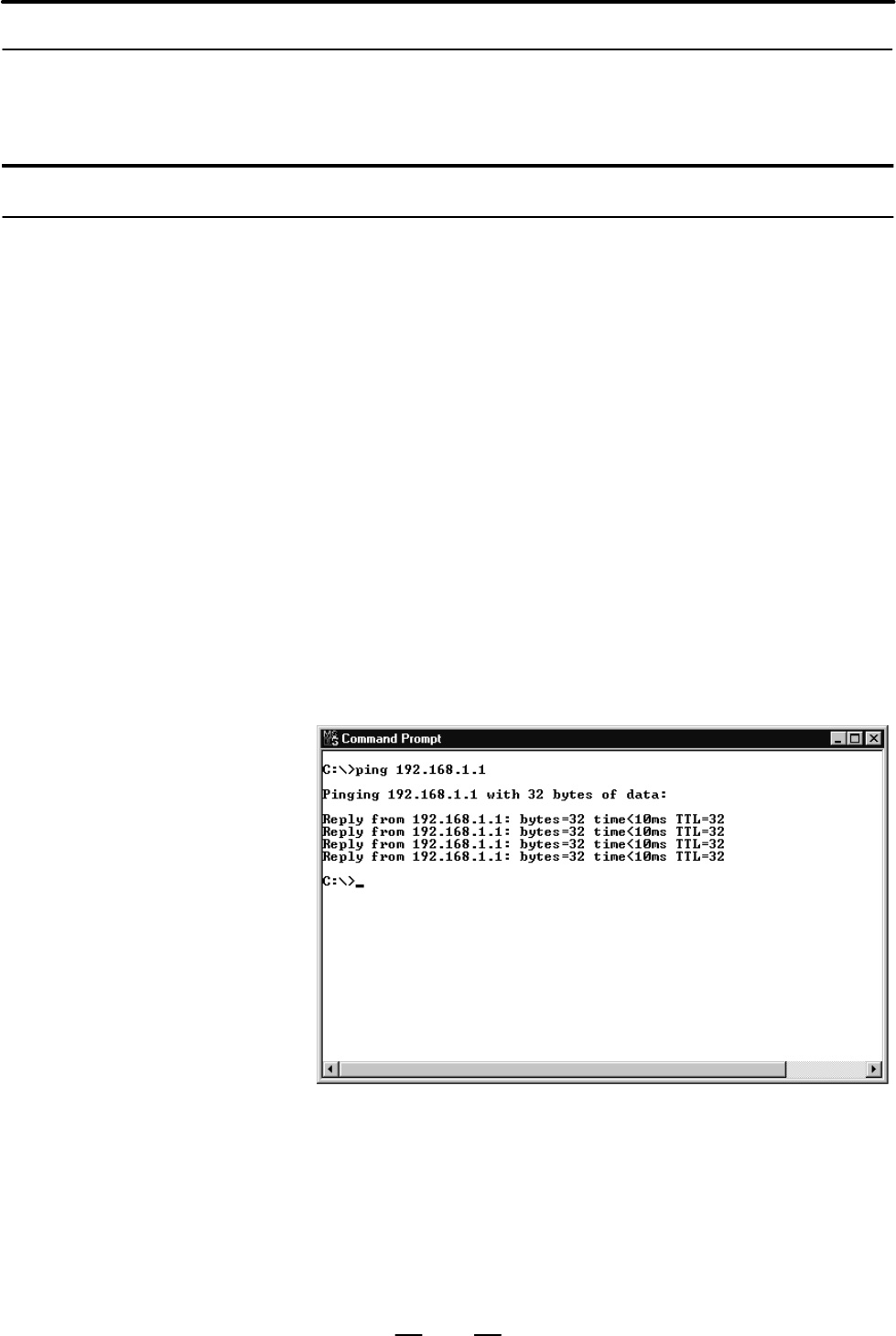

1) When a response is received (normal)

8.8.4

Checking

Communication

Checking from the

embedded Ethernet side

Checking from the

personal computer side

8. EMBEDDED ETHERNET FUNCTION

GFKE-0222-EN

662
