16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 280

Maintenance manual
(1)
Axis control card
(2)
CE card
(3)
CPU card
Connector
DIMM module DIMM module
Connector
Connector
Connector
(4)
Power supply unit
No. Name Code Function Remarks
(1) Axis control card
A20B–3300–0033 Axis control 2–axes
Servo software Series 9090
A20B–3300–0032 Axis control 4–axes
A20B–3300–0243 Axis control 2–axes
Servo software Series 90B0
A20B–3300–0242 Axis control 4–axes
A20B–3300–0241 Axis control 6–axes
A20B–3300–0240 Axis control 8–axes
A20B–3300–0248 Axis control 4–axes
Servo software Series 90B0
A20B–3300–0245 Axis control 6–axes
(High–speed HRV)
A20B–3300–0244 Axis control 8–axes
A20B–3300–0246 Learning controlled
axis control
Servo software Series 90B3/90B7
A20B–3300–0247 Learning controlled
axis control
Servo software Series
90B3/90B7(High–speed HRV)
(2) CE
CE card 1 A20B–3300–0330 For 10.4” color LCD
card
CE card 2 A20B–3300–0320 Win CE CPU

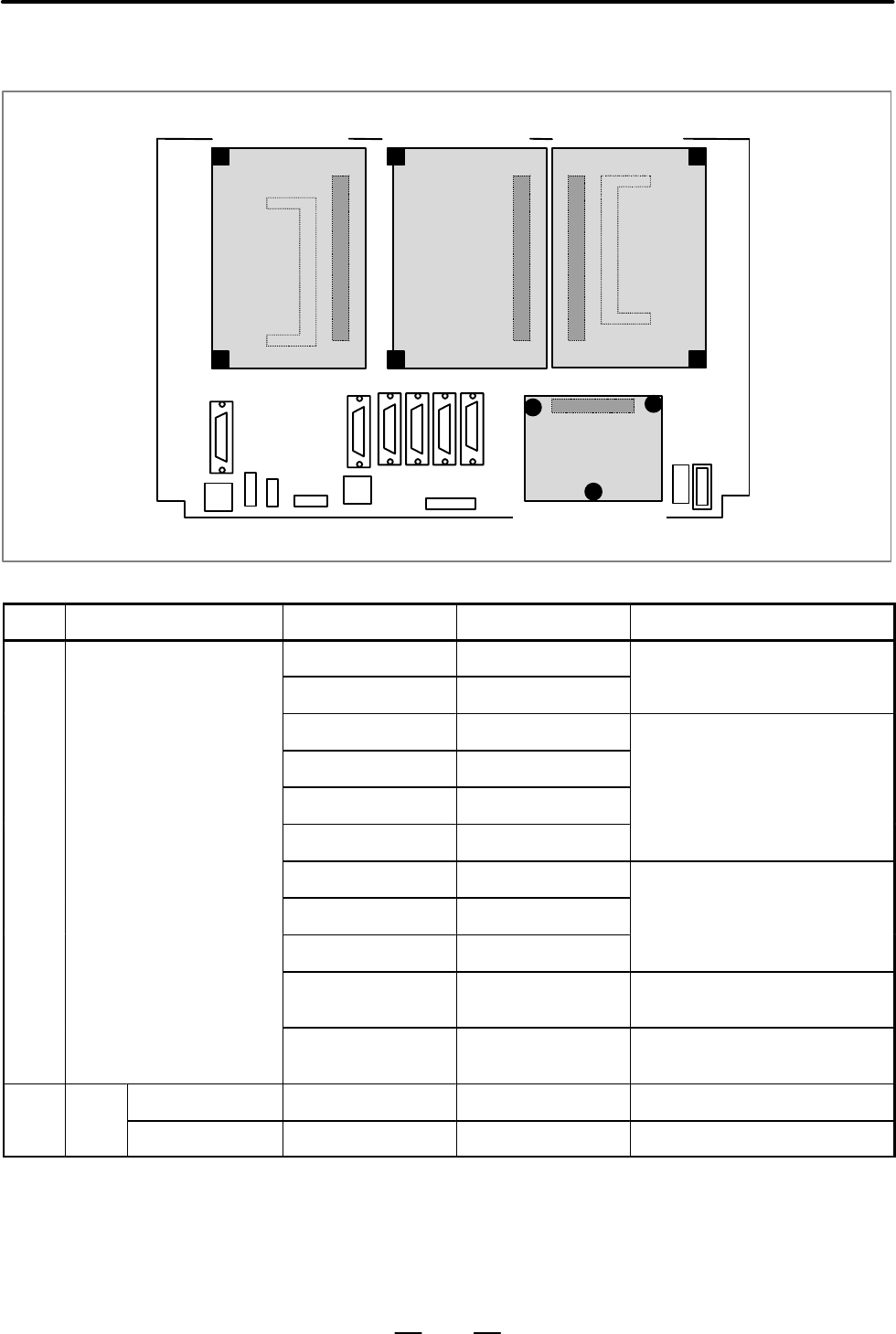

D Mounting positions of
cards
3. LCD–MOUNTED TYPE is SERIES HARDWARE
GFKE-0222-EN
250
