16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 390

Maintenance manual

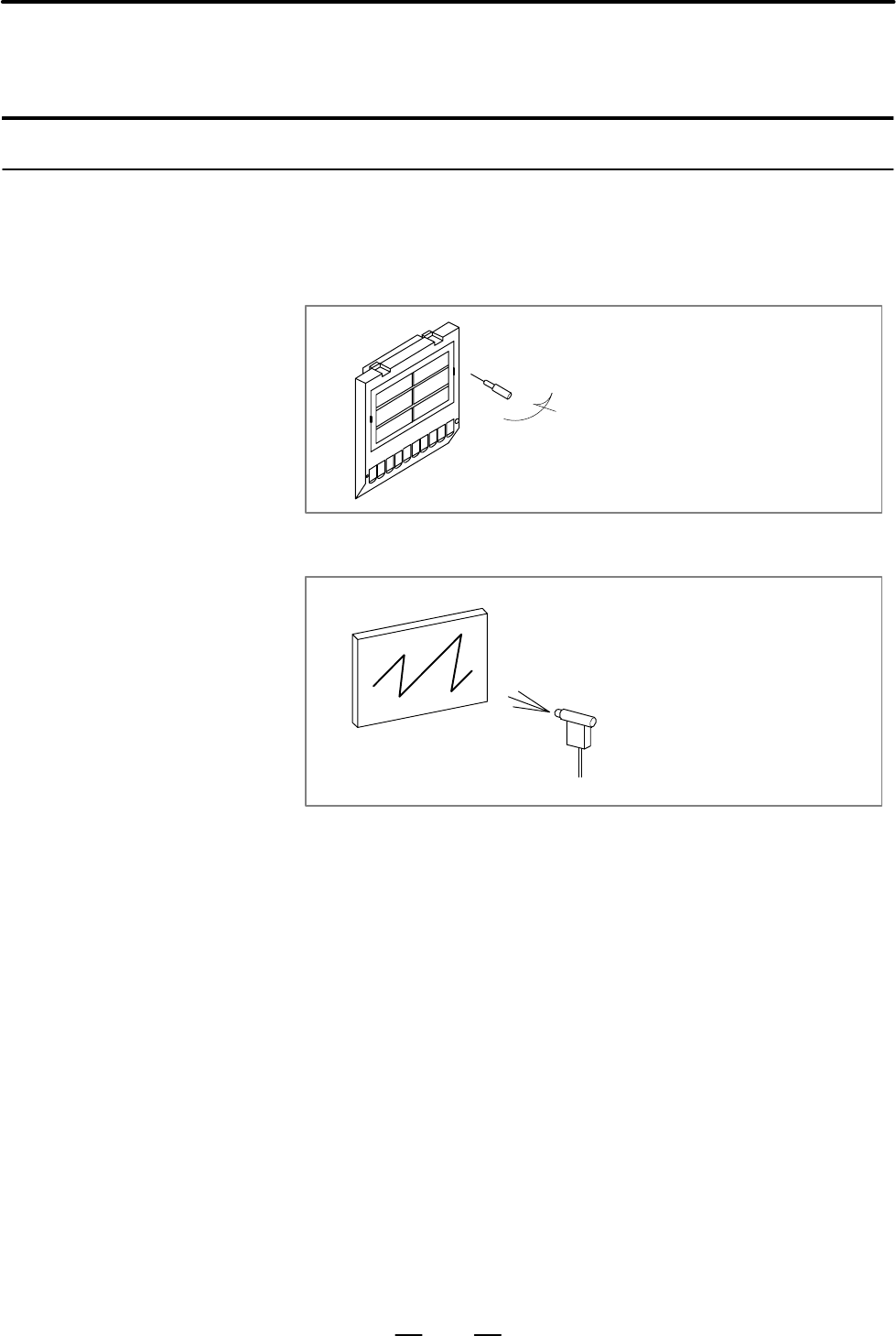

Procedure for cleaning and replacing the air filter
1 Before cleaning and replacing the air filter, turn off the fan power
supply.
2 Remove the filter cover, then demount the filter.
When removing the cover, press the claw placed in
the groove on both sides inward with a screwdriver.
3 Blow air against both sides of the filter to remove dust.
4 When the filter is dirty extremely, wash it with a solution of water and
neutral detergent, and rinse it with fresh water, then allow it dry
naturally.
Alternatively, replace it with a new filter (use only the specified filter).
5 Set the cleaned or new filter. Next, align the claws with the grooves,
then press them to reinstall the cover. Check that the cover is not
removed when it is pulled toward you.
Cleaning and replacing
the air filter
5. MATTERS COMMON TO BOTH LCD–MOUNTED TYPE
AND STAND–ALONE TYPE i SERIES (HARDWARE)
GFKE-0222-EN
360
