POWER MATE 0 Maintenance manual Page 117

Maintenance manual
4. INTERFACE BETWEEN NC AND PMC
B–63445EN/01
102

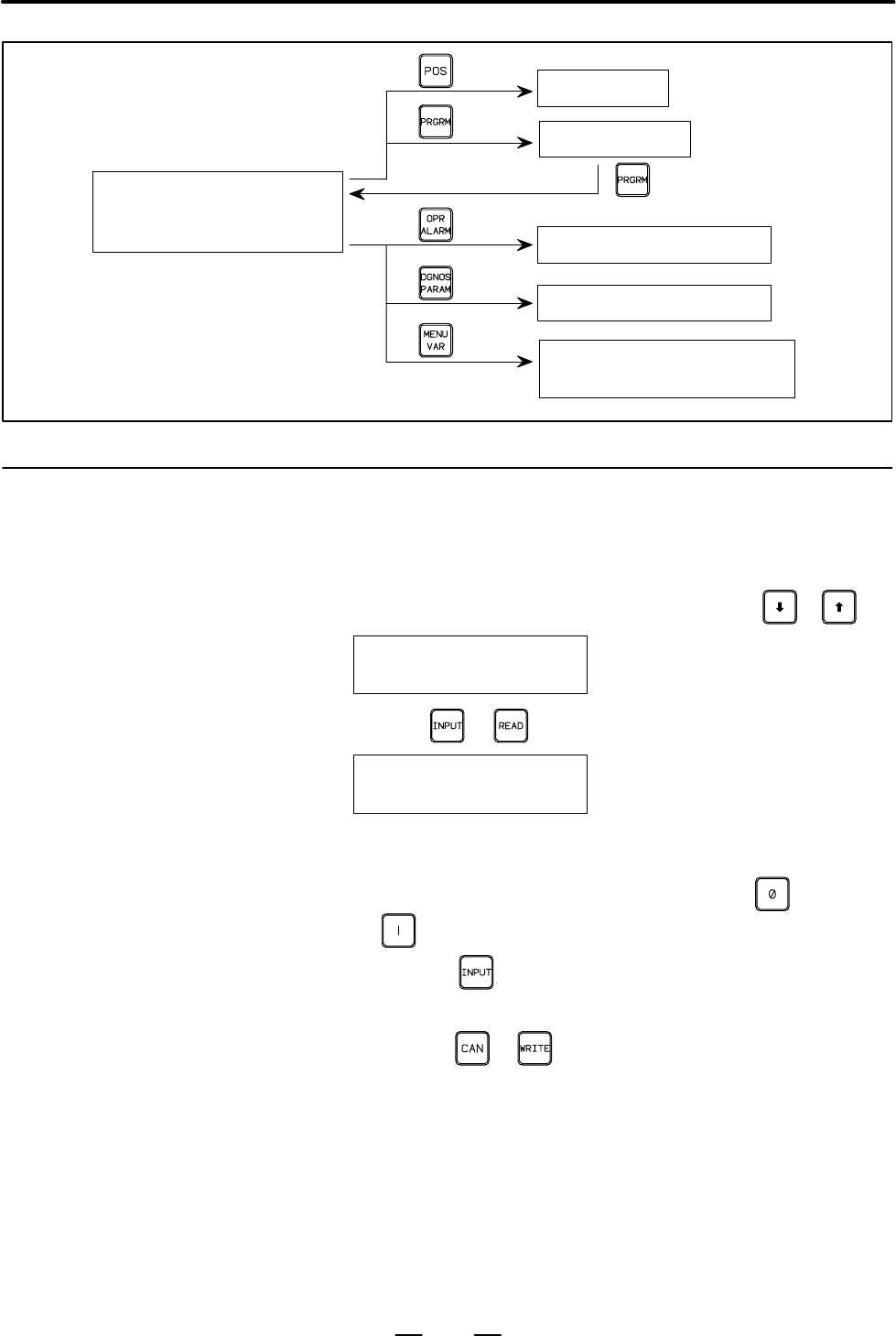

PMC programmer screen
(PMC programmer menu)
(PMC editing menu)
Current
Position screen
Program screen
Alarm/Message screen
Parameter/Diagnostic screen
Offset/Setting/Macro
Variable screen
(K17#1=1)
Selecting SYSTEM PARAM on the PMC programmer menu displays the
system parameter screen. If the sequence program is running, selecting
this function automatically stops the program.
1 Display the PMC programmer menu.
2 Display the SYSTEM PARAM item by pressing the
or key.
PMC PRG MENU 3/3
>SYSTEM PARAM
3 Press the or key. The system parameter screen appears.
CTR TYPE = BIN
(BINARY=0/BCD=1)
4 The current counter data type is displayed on the screen.
(a) Specify the type of the counter value to be used for the CTR
functional instruction, as binary or BCD (enter
for binary or
for BCD).
(b) Press the
key.
The counter data type is set.
5 Pressing the
or key displays the PMC programmer menu.
4.4.2
Setting and Displaying
System Parameters
(SYSTEM PARAM)
