POWER MATE 0 Maintenance manual Page 76

Maintenance manual
B–63445EN/01
2. HARDWARE
61
1 Check that the power supply is not off.

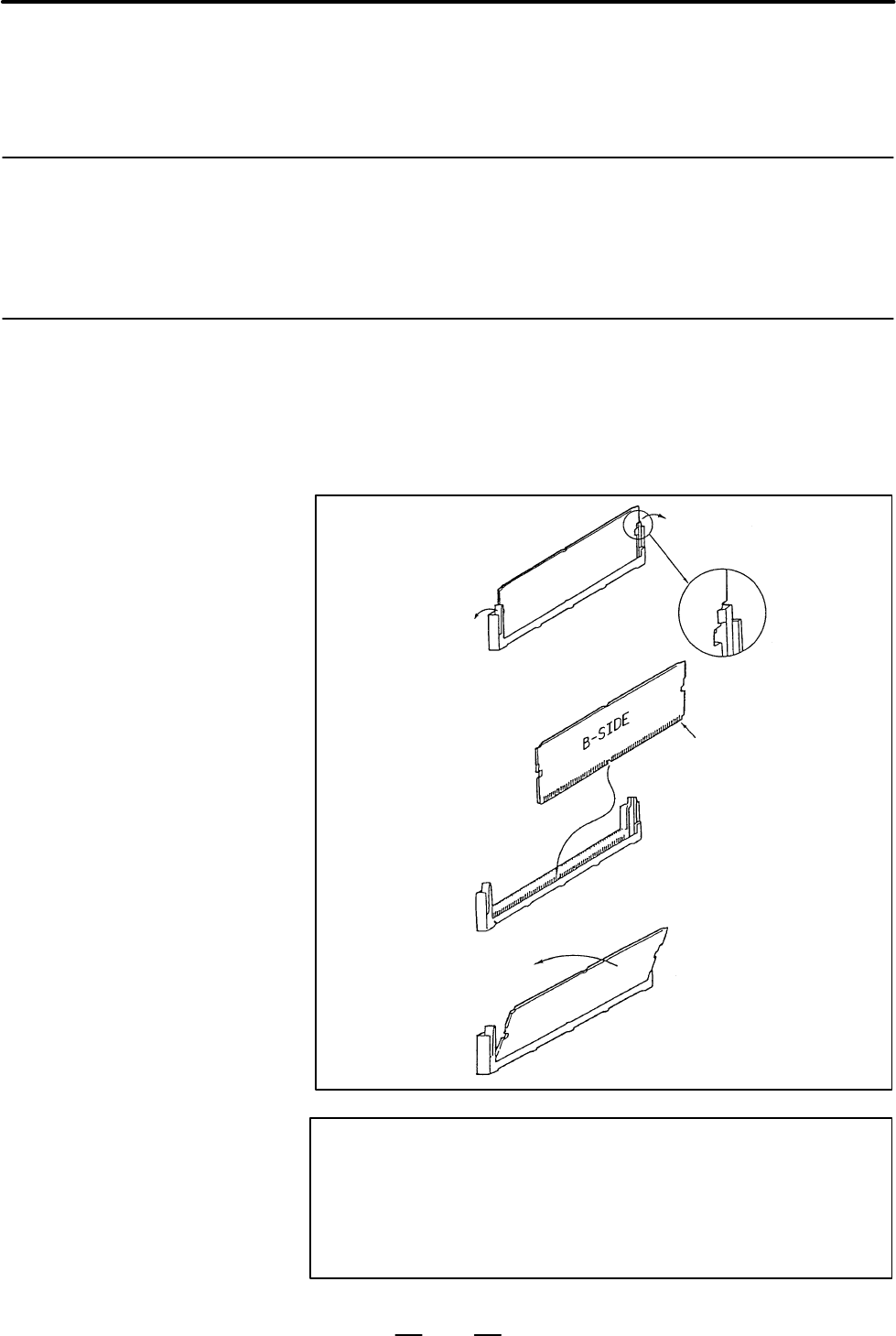

2 Pull the latches of the module socket outwards. (Fig.(a))
3 Pull out the module upward. (Fig.(b))
1 Check that the power supply is off.
2 Insert the new module board diagonally with B–SIDE outward
(Fig.(b))
3 While holding both sides of the module with both hands, raise it until
it is locked (Fig.(c)).
(a)
No.1 pin
(b)
(c)
CAUTION
Make sure that the latches at both ends of the socket are
correctly engaged with the module. If either latch is not
engaged securely, it will not be possible to establish a
satisfactory electrical contact, possibly leading to a
malfunction of the Power Mate.
2.7
HOW TO REPLACE
THE MODULES
2.7.1
Removing
2.7.2
Insertion
