POWER MATE 0 Maintenance manual Page 121

Maintenance manual
4. INTERFACE BETWEEN NC AND PMC
B–63445EN/01
106

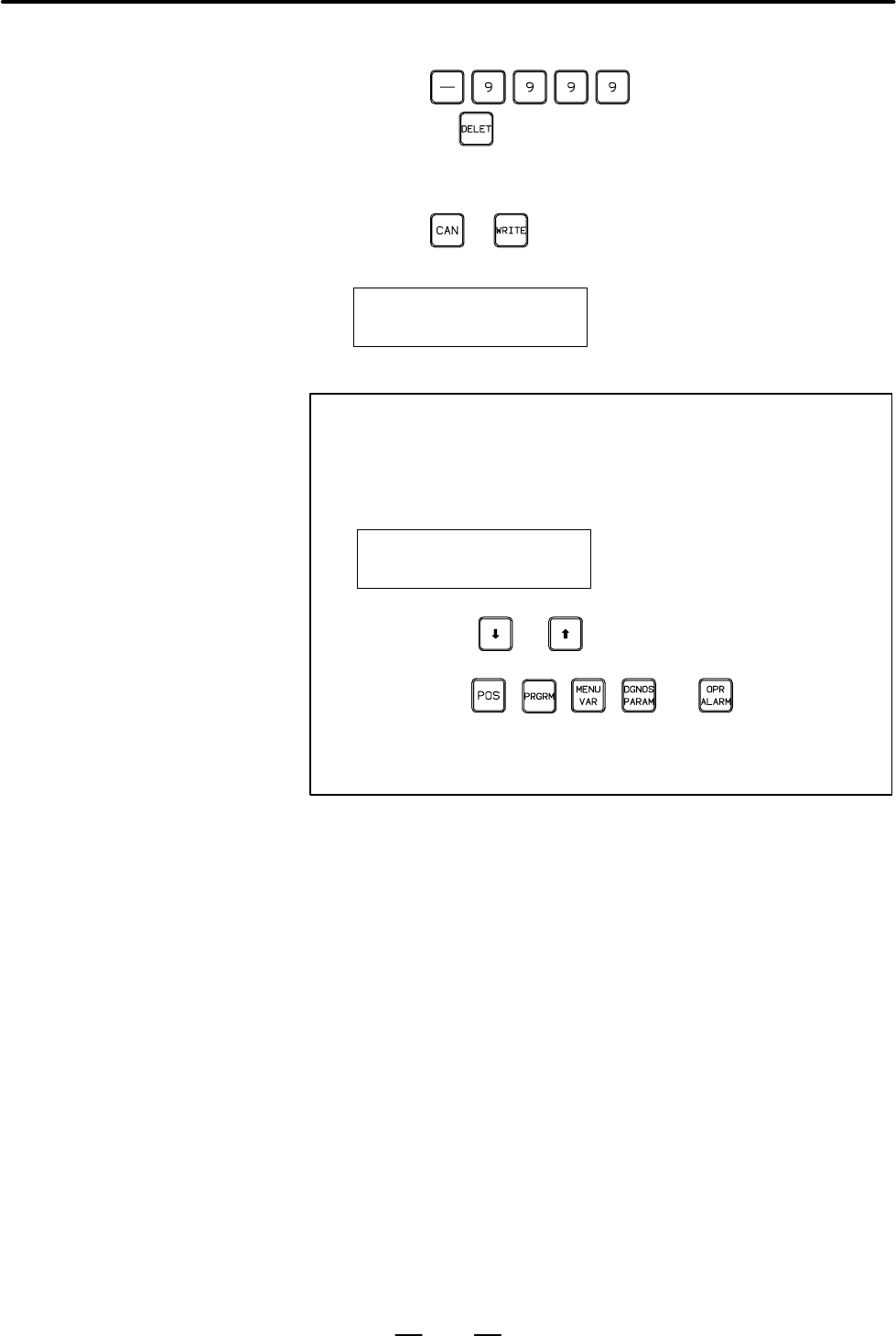

4 Deleting the ladder program
(a) Enter
.
(b) Press the
key.
The whole ladder program is deleted.
(4) Ending ladder mnemonics editing
1 Press the
or key.
2 ”EXECUTING” is displayed.
N0001
EXECUTING
3 The PMC editing menu appears.
NOTE
1 If the sequence program contains an error, the PMC editing
menu is not displayed but an error message appears on the
screen.
(Example) Error message
Pressing the or cursor key displays the ladder
mnemonics editing screen.
2 Pressing the , , , , or key during the
editing of the sequence program displays the CNC screen
by forcibly terminating editing even if the program contains
an error.
END FUNCTION
MISSING
