2.16i/18i/21i/PMi DNC1/Ethernet FUNCTIONS IV. OPERATION B-63644EN/02

- 108 -

2.1 ETHERNET ERROR MESSAGE SCREEN

If an error related to the DNC1/Ethernet functions occurs, an error

message appears on the error message screen dedicated to the Ethernet

functions.

Display

Procedure

1 Press function key

MESSAGE

2 Press the continuation menu key at the right end of the soft key

manu.

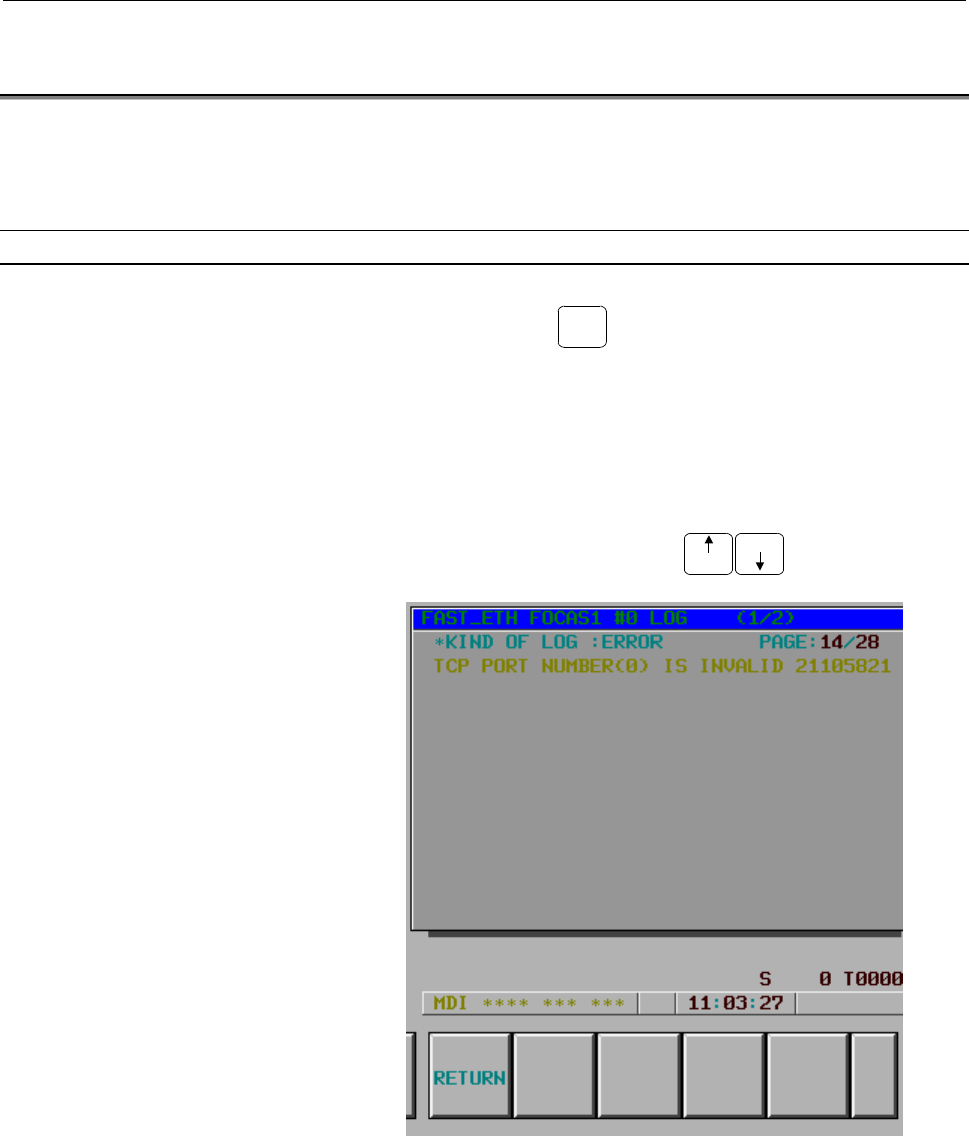

3 When you press soft key [ETHLOG], the Ethernet Error Message

screen appears.

For the Series 16i/18i/21i-B, to display the Ethernet Error

Message screen, press soft key [ETHLOG] and then soft key

[BOARD].

4 Select the desired page using the

PAG E

page keys.

[Reference]

The latest error message is displayed at the top of the screen. The

day and time at which the error occurred are displayed at the right

end of the error message. The format of the day and time is dd

hhmmss (dd: day, hh: hour, mm: minute, second: ss).
