B-63644EN/02 III. SETTING 4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i

- 71 -

Entering special characters

The following describes the method for entering special characters. In

the following explanation, the string "PROG$" is entered as an

example.

Procedure

1 Place the CNC in MDI mode.

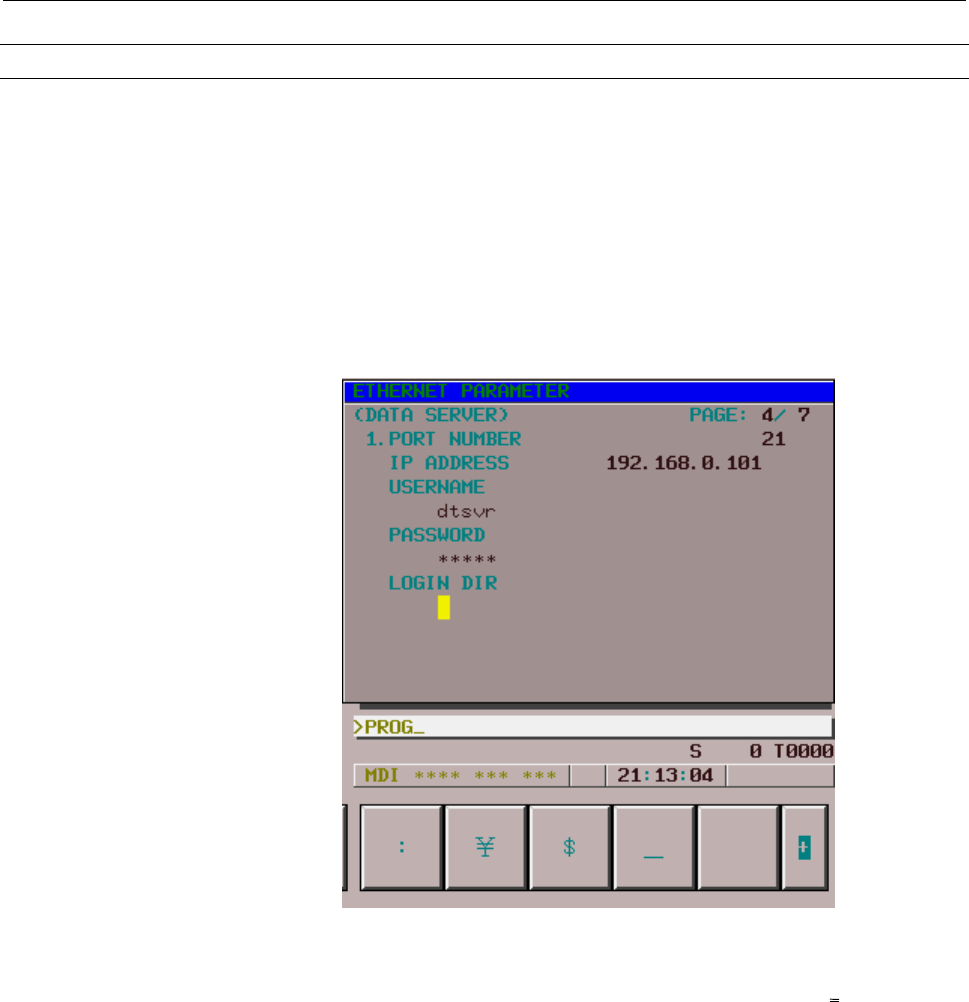

2 Display the "Ethernet Parameter" screen.

3 Position the cursor to "LOGIN DIR" using the cursor movement

keys.

4 Enter "PROG" using the MDI keys and press soft key [CONT] at

the bottom right of the soft key menu.

[Reference]

Of those characters that cannot be entered using the MDI keys,

those characters likely to be used frequently ([:], [

], [$], and [_])

can be entered. To enter a special character other than these, set

the ASCII code of that special character for any of parameters Nos.

931 to 935.

For details, refer to section 4.3 “ Parameters “.
