4.5 ELECTRICAL NOISE COUNTERMEASURES

4.5.1 Separating Signal Lines

For signal line separation, refer to the description of noise protection in

the connection manual (part for hardware) of each CNC. The wiring

for the Ethernet cable is of group C.

4.5.2 Clamping and Shielding Cables

Clamp an Ethernet twisted pair cable according to the method

described below, as with cables that need to be shielded. Clamping

cables provides support and shielding and is extremely important to the

safe operation of the system. Never overlook cable clamping.

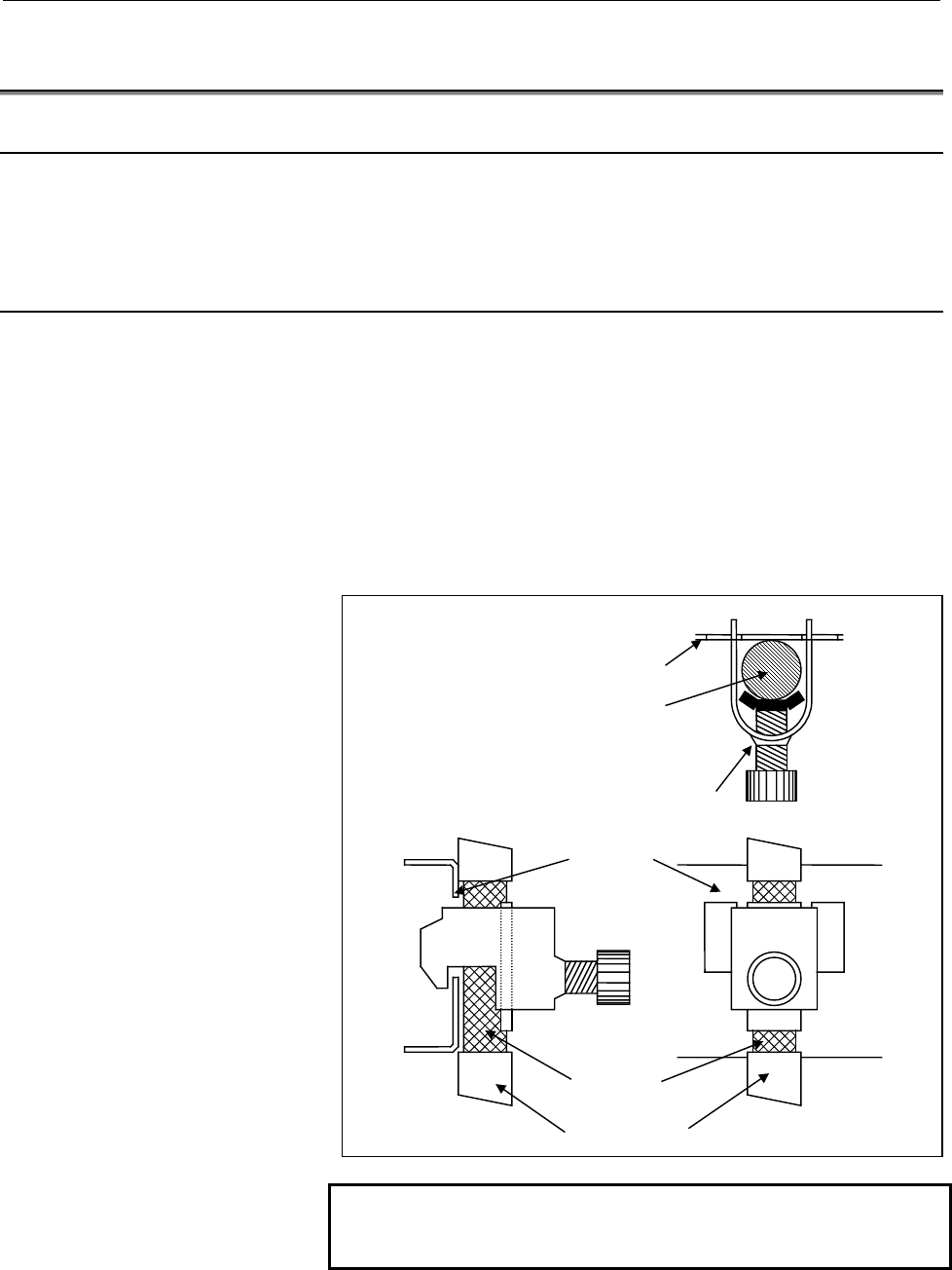

Peel off part of the jacket as shown in the figure to expose the outer coating

of the shield, and press this outer coating against the ground plate with the

clamp fixture.

The machine manufacturer must prepare the ground plate and install it as

follows:

NOTE

To ensure the safe operation of the system, clamp

and shield the cables.

Shield

Peel off jacket

Ground plate

Cable

Cable clamp
