4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63644EN/02

- 114 -

4.1 RULES GOVERNING THE USE OF THE DATA SERVER

FUNCTIONS

This section describes the rules governing the use of the data server

functions.

4.1.1 Data Server Modes

The data server function can run in three modes when it transfers NC

data (such as NC programs and NC parameters) between the CNC and

Fast data server.

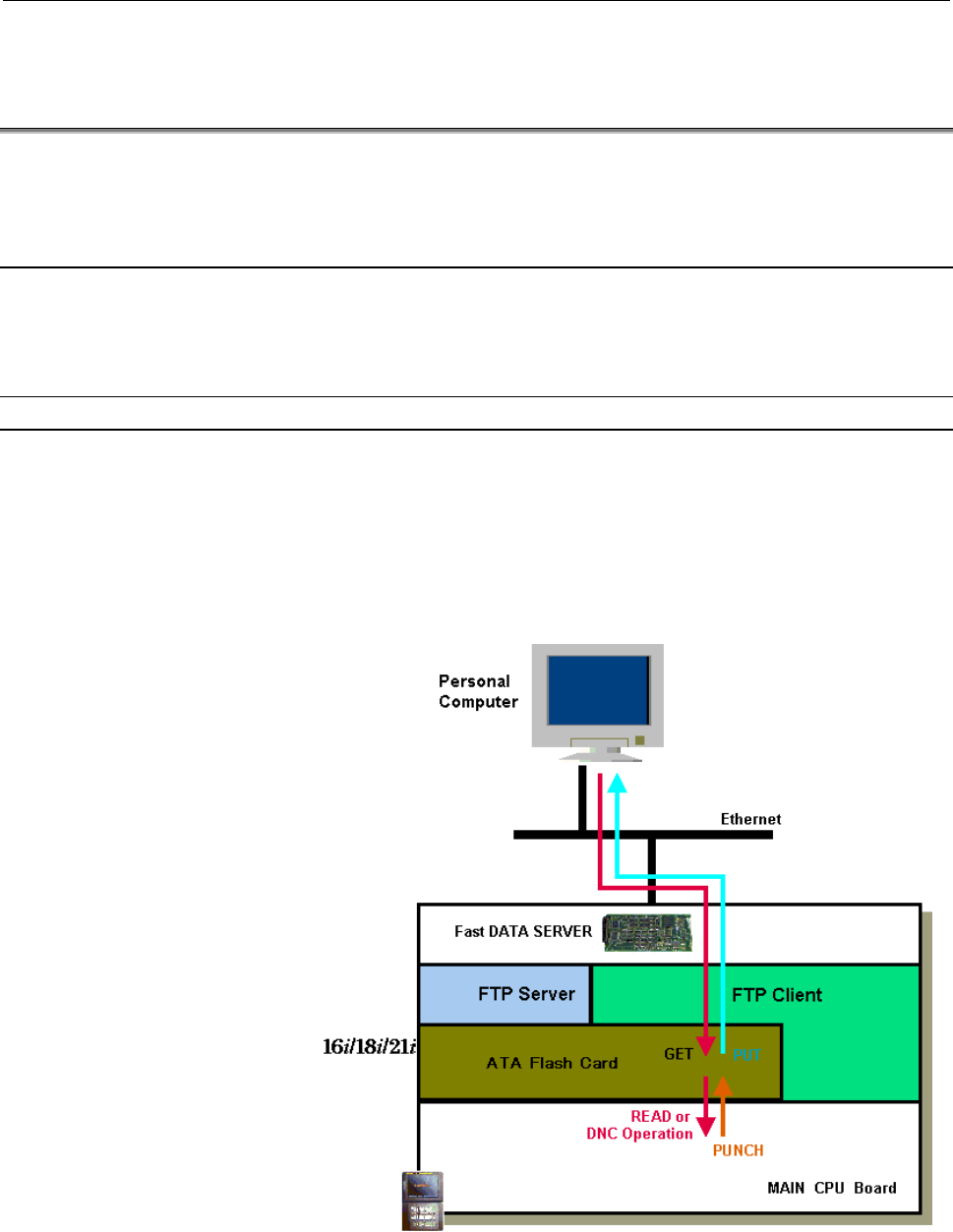

Storage mode

In the storage mode, data is transferred between the Fast data server

built-in ATA flash card and CNC part program storage.

For example, DNC operations including a DNC operation by a

subprogram call (M198) require that the related NC programs be stored

on the Fast data server built-in ATA flash card. If an NC program is

output, it will be stored on that ATA flash card.
