B-63644EN/02 VI. MAINTENANCE 1.Series 16i/18i/21i, Power Mate i MAINTENENCE INFORMATION

- 337 -

1.4 CHECKING WHETHER COMMUNICATION DESTINATION

DEVICES EXIST

On the Fast Ethernet board and Fast data server, the Ping function is

installed to enable the CNC to check if a communication destination

device exists on the network. Whether a communication destination

device exists on the network can be easily checked. Use the procedure

below to check if a communication destination device exists.

Procedure

1 Press function key

SYSTEM

2 Press soft key [CONT] at the bottom right of the soft key menu.

3 Press soft key [ETHMNT] to display the Ethernet maintenance

screen. With the Series 16i/18i/21i-B, press soft key [ETHMNT]

then soft key [BOARD] to display the Ethernet maintenance

screen.

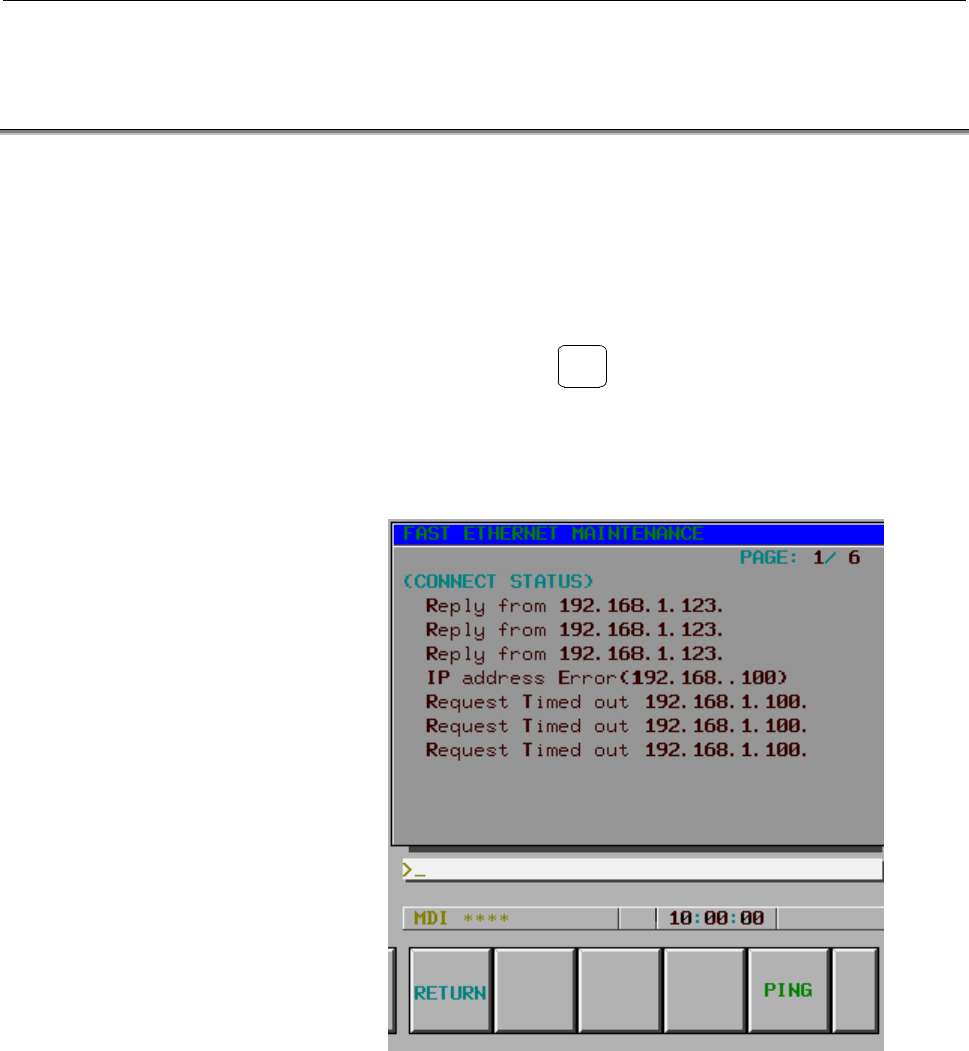

4 Enter the IP address of a communication destination device trough

the MDI keys, then press soft key [PING]. Communication is

performed with the specified communication destination three

times, and the results are displayed.

Contents of a displayed message

Reply from IP-address

A response was received from the specified communication

destination device. The specified communication destination

device exists on the network.
