4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i III. SETTING B-63644EN/02

- 74 -

923 Selects the host computer 3 OS.

[Data type] Byte

[Valid data range] 0 and 1

1: UNIX/VMS.

0: Windows 95/98/Me/NT/2000.

924 DNC1/Ethernet or FOCAS1/Ethernet wait time

[Data type] Word

[Unit of data] 1.1 ms

[Valid data range] 0 to 255

Specifies the wait time (in 1.1 ms units) for the DNC1/Ethernet or

FOCAS1/Ethernet service when it is used together with the data server

function.

If 0 is specified, a wait time of 1.1 ms is assumed.

0931 Special character (No. 1)

0932 Special character (No. 2)

0933 Special character (No. 3)

0934 Special character (No. 4)

0935 Special character (No. 5)

[Data type] Byte

[Unit of data] Bytes

[Valid data range] 32 to 126

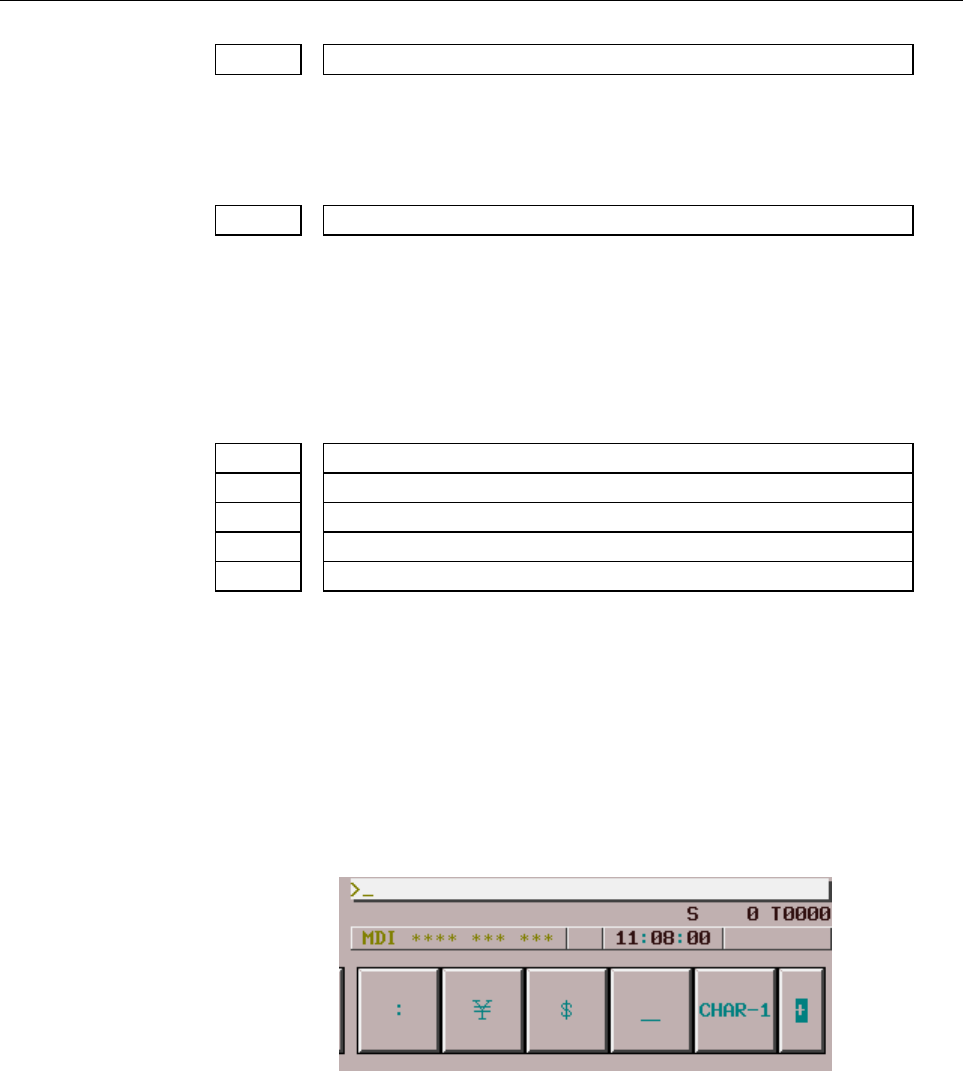

NC parameters Nos. 931 to 935 enable characters that cannot be

entered using MDI keys to be entered using soft keys.

Enter non-zero numbers for these parameters. [CHAR-1] to [CHAR-5]

are displayed as the special character input soft keys.

Example: When "33" is entered for parameter No. 931, pressing soft

key [CHAR-1] causes a "!" to be entered.
