6.1.8.1 How to use the buffer mode

The buffer mode is designed to handle an NC program larger than the

capacity of the Fast data server built-in ATA card. This mode can be

used with DNC operations (Section 6.6) including a DNC operation by

a subprogram call (M198) (Section 6.7).

In the buffer mode, the Oxxxx file called during a DNC operation or by

subprogram calling is a file list, which is a list of file names arranged in

the sequence in which they are to be called. In this mode, the Fast data

server calls the files specified according to this file list sequentially and

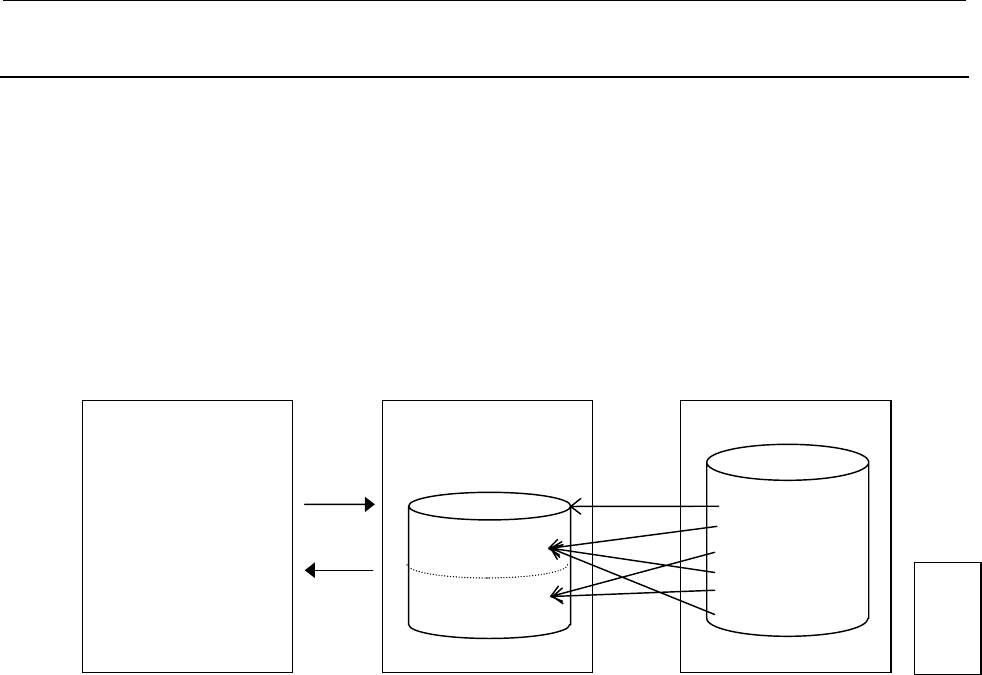

supplies data from them to the NC. (See the following figure.)

As seen from the above figure, the contents of the files (file1 to file5)

specified in the file list in the host computer are fetched into the Fast

data server built-in ATA card, using the FTP, then the data is supplied

to the CNC. In the buffer mode, after the CNC requests the data server

to read the NC program, the specified file list is read from the host

computer, and the contents of the first file in the file list are read, then

the data is supplied to the CNC. Note, therefore, that a time lag occurs

between the read request and the data supply sequence. In addition,

while data is being supplied from one of the areas to the CNC, data is

fetched into the other area, using the FTP. Therefore, the original data

must be divided to such a size that the resulting two consecutive files

can fit on the Fast data server built-in ATA card.

When a data transfer from one of the areas to the CNC is completed, if

the FTP communication with the other area has not ended, another data

supply sequence cannot be performed, and therefore, the program call

ends in an error. This error can be suppressed, using a parameter,

however. See Section 4.3, "Parameters," of Part III, "Setting," for

details. For a DNC operation by a subprogram call (M198), the name of

the file list must be Oxxxx (where xxxx represents a four-digit number).

For other DNC operations, however, the name of the file list is arbitrary.

The name of each file specified in the file list can be any name

permitted in the host computer, provided that it does no exceed 255

alphanumeric characters. In the file list, each file name must be

followed by at least one LF (0A in hexadecimal) or CR (0D in

hexadecimal).

Contents

of Oxxxx

file1

file2

file3

file4

file5

Hard disk

get (FTP)

Program

calling

Oxxxx

file1

file2

file3

file4

file5

file1

file2

file3

file4

file5

Hard disk

rea

rea B

CNC

Data server Host com

uter
