4.HARDWARE CONNECTIONS V. CONNECTION B-63644EN/02

- 318 -

NOTE

1 The ground between PC/HUB side and machine

system side must be separated. If it is impossible to

separate the ground because there is only one

grounding point, connect the ground cable for each

system to the grounding point independently. (Refer

Fig.1)

The resistance for grounding must be less than 100-

ohm (Class D). The thickness of the ground cable is

the same as the thickness of AC power cable or

more. At least thickness of 5.5mm

is necessary.

2 Note that the number of allowable hub-to-hub

connections depends on the type of hub.

3 There is possibility that noise makes the obstacle of

communication even if the ground is separated using

the 100BASE-TX. In the case of using the Fast

Ethernet board under the worst environment, please

separate between the PC/Trunk line side and

machine system side completely using the

100BASE-FX (Optical fiber media).

Ground wire on

machine s

stem

Note 2

Ground wire on machine

system

Ground point

Ground wire on personal

computer/HUB

HUB

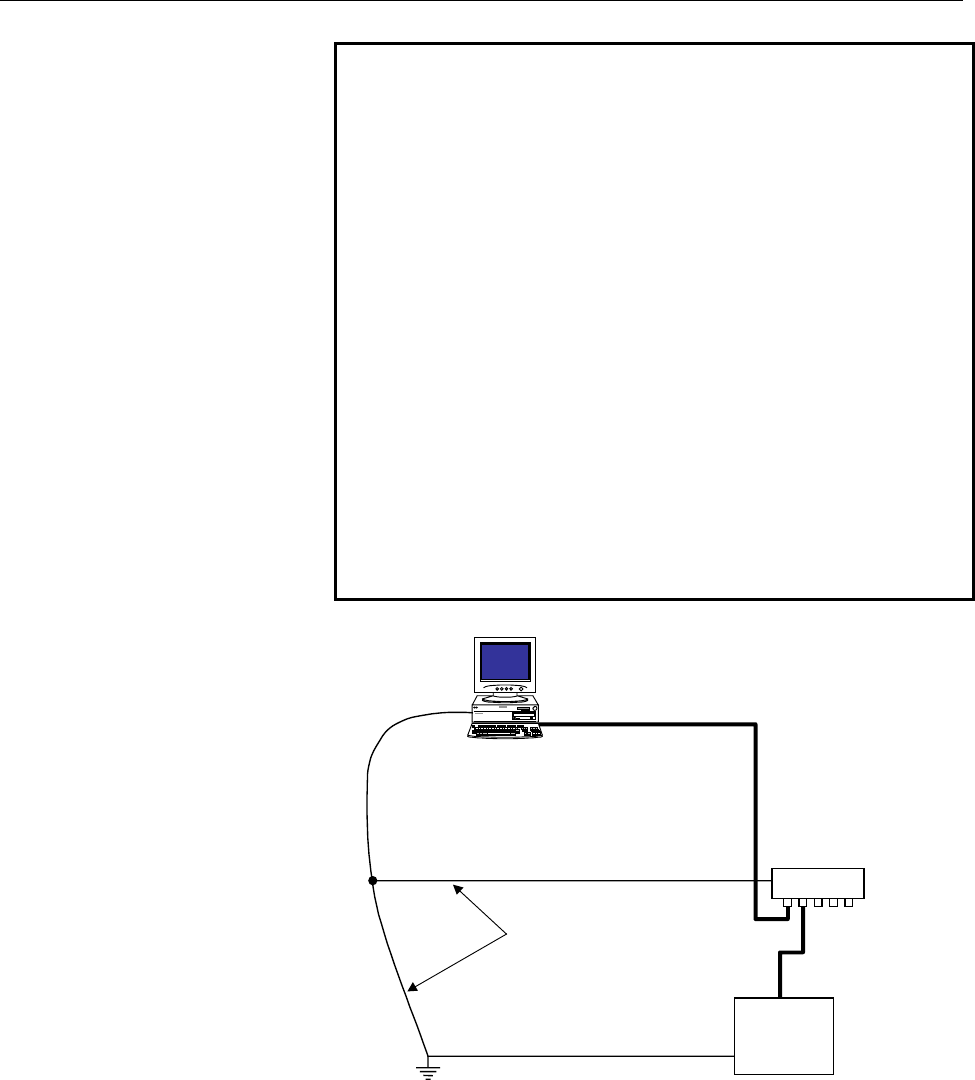

Fig.4.5.3(c) Wiring on a Single Ground Point
