B-63644EN/02 VI. MAINTENANCE 1.Series 16i/18i/21i, Power Mate i MAINTENENCE INFORMATION

- 341 -

1.6 CHECKING OPERATION STATUS OF EACH FUNCTION

On the Fast Ethernet board and Fast data server, many different

functions operate simultaneously. So, the current operation status of

each function may need to be checked. Use the procedure below to

check the operation status of each function.

Procedure

1 Press function key

SYSTEM

2 Press soft key [CONT] at the bottom right of the soft key menu.

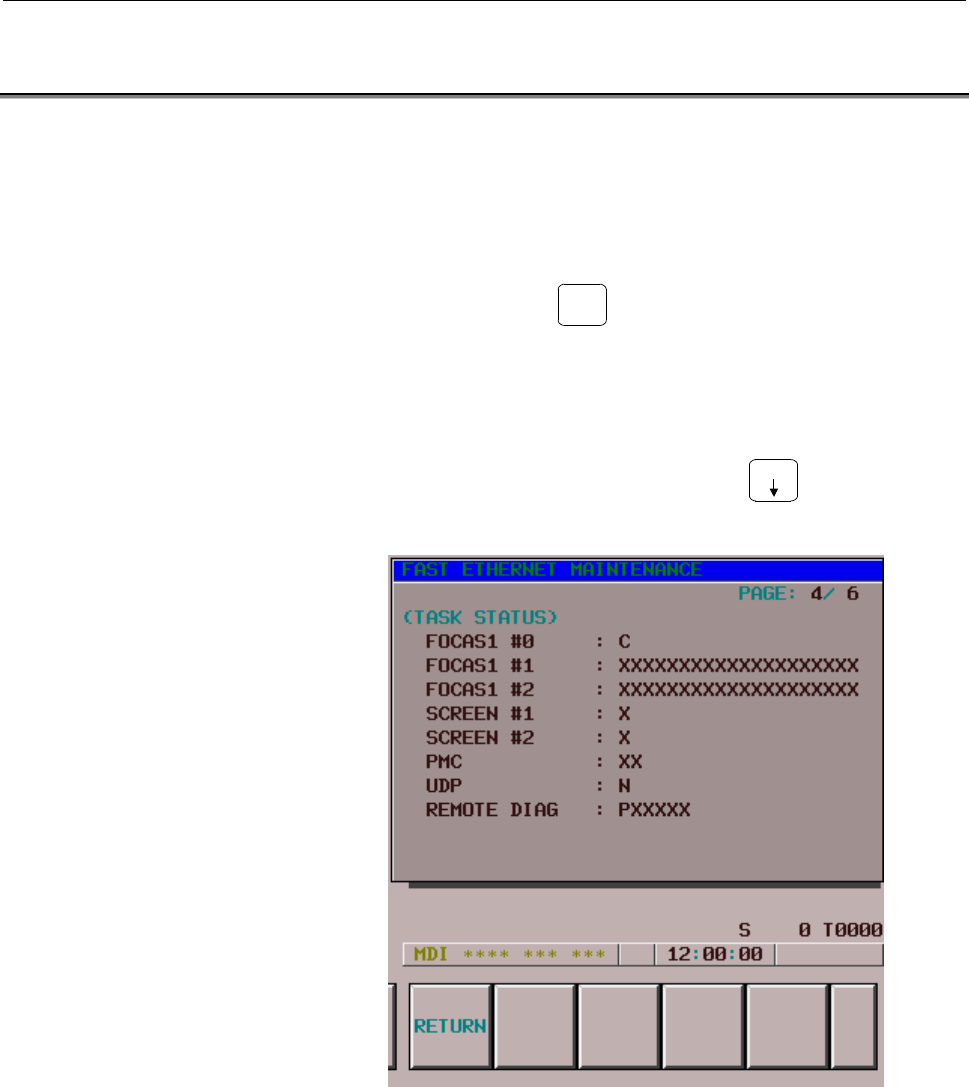

3 Press soft key [ETHMNT] to display the Ethernet maintenance

screen.

With the Series 16i/18i/21i-B, press soft key [ETHMNT] then soft

key [BOARD] to display the Ethernet maintenance screen.

4 Switch the screen display with page key

PAGE

5 The screen for checking the operation status of each function is

displayed.
