B–63523EN/03

6. SPINDLE CONNECTION

139

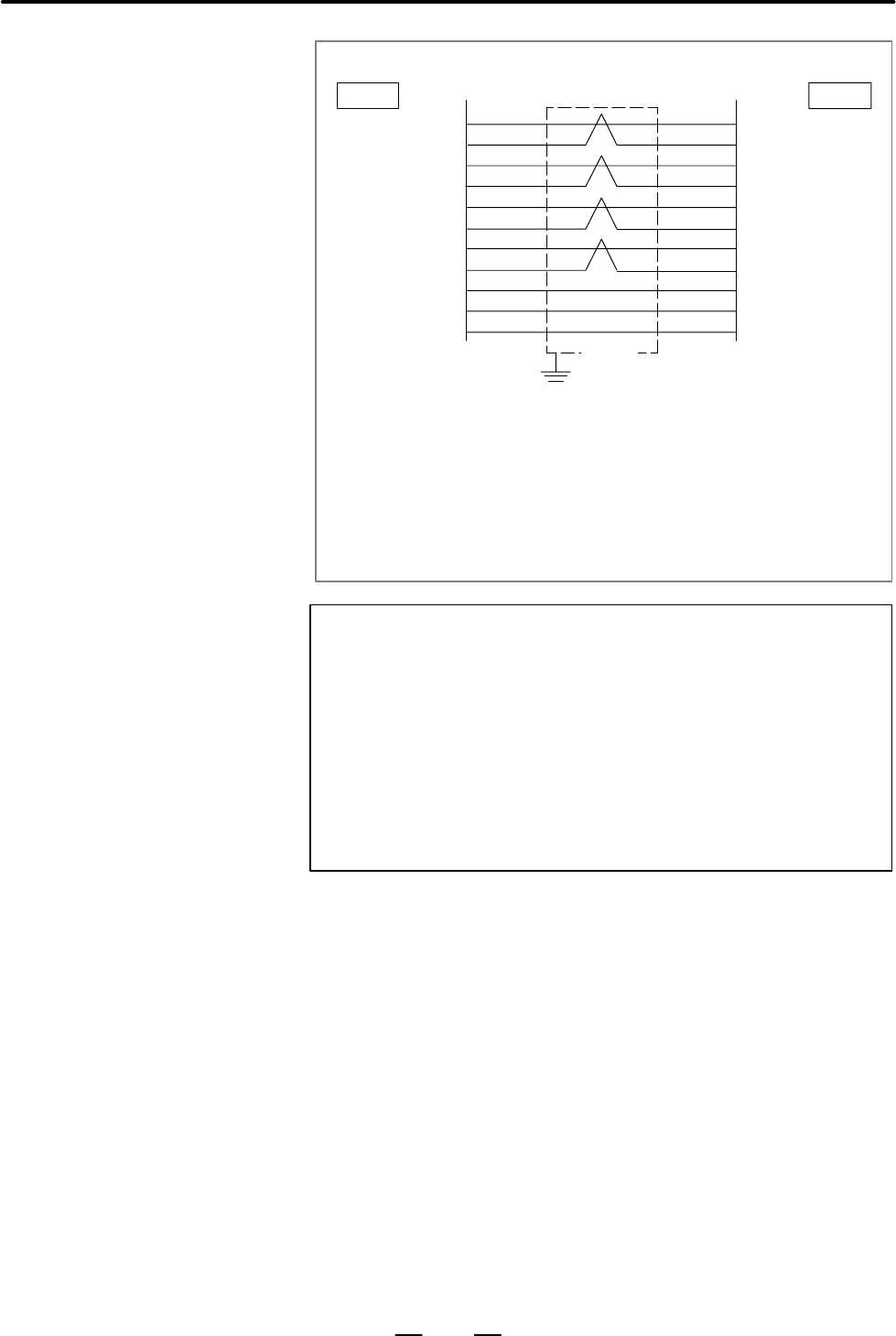

SOUTA

*SOUTA

SINA

*SINA

SOUTB

*SOUTB

SINB

*SINB

SINA

*SINA

SOUTA

*SOUTA

SINB

*SINB

SOUTB

*SOUTB

Ground plate

Shield

JA41

Cable connection

JA48

Recommended cable connector:

PCR–E20FA (manufactured by Honda Tsushin Kogyo)

FI30–20S (manufactured by Hirose Electric)

FCN–247J020–G/E (manufactured by Fujitsu)

52622–2011 (manufactured by Molex Japan)

Recommended cable specification: A02B–0236–K845

Recommended wire specification: A66L–0001–0284#10P

(#28AWG × 10 pairs)

NOTE

1 When this cable is installed close to other cables such as a

power line, a shielded wire must be connected to the ground

plate. When the CNC is installed close to the serial spindle

connector panel, however, no connection to the ground

plate is necessary.

2 The recommended cable connector FI30–20S (manufactured

by Hirose Electric) cannot be used for the stand–alone type

i Series CNC and JA48.
