Series 16i/160i/160is/18i/180i/180is/21i/210i/210is - Model B Connection manual (Hardware) Page 351

Connection manual (Hardware)

Page of 611

/ 611

B–63523EN/03

9. CONNECTION TO FANUC I/O Link

335

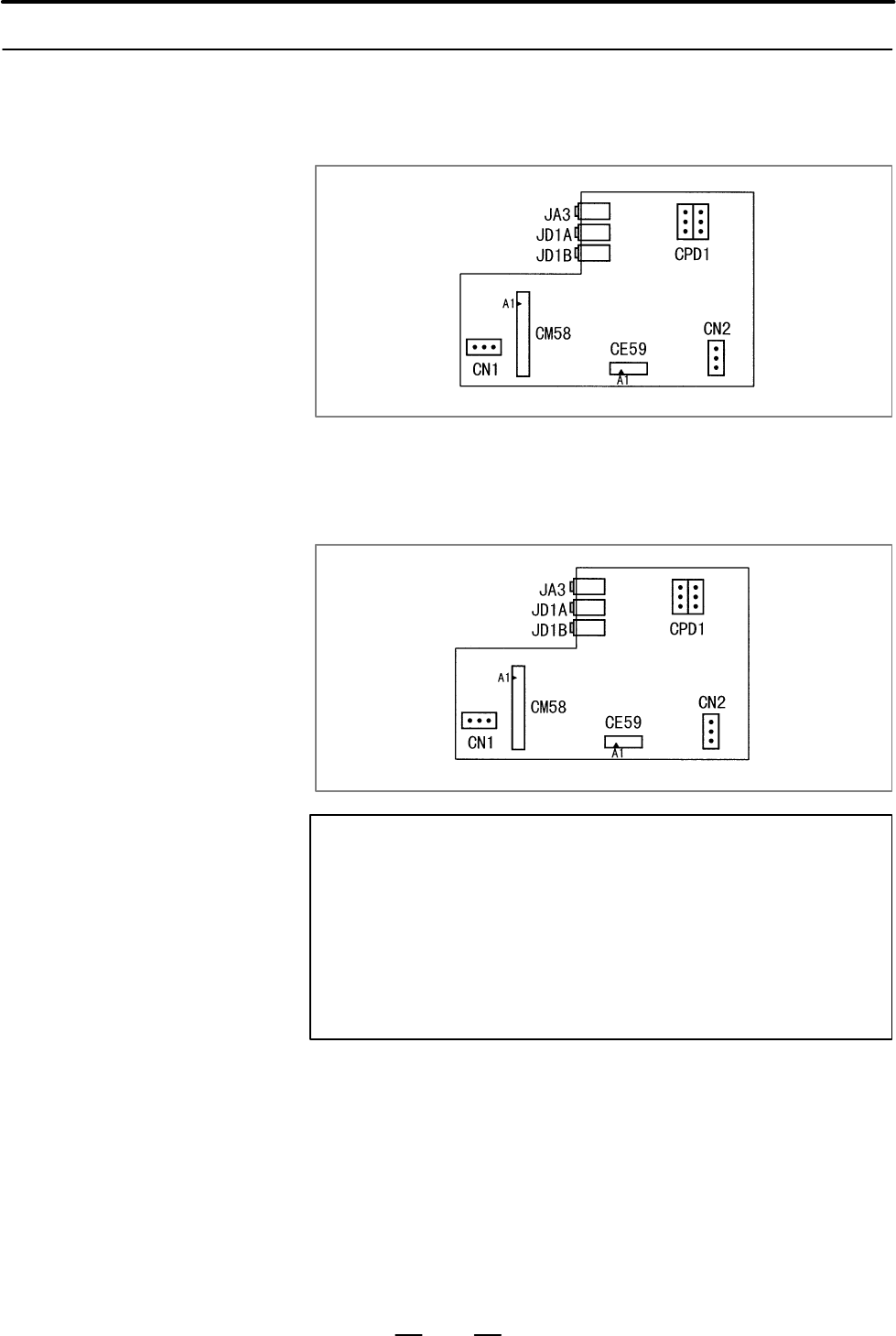

(1)Small machine operator’s panel

Specification of the printed circuit board:

A20B–8001–0721 (with general–purpose DO)

Viewed from behind

Printed circuit board

(2)Standard–size machine operator’s panel

Specification of the printed circuit board:

A20B–8001–0721 (with general–purpose DO)

Viewed from behind

Printed circuit board

NOTE

Machine operator’s panels shipped in April, 1998 and later

use the A20B–8001–0721 printed circuit board. The

A20B–8001–0721 printed circuit board features a

general–purpose DO, and has connector CE59 dedicated

to general–purpose DO. Machine operator’s panels

shipped before April, 1998, used the printed circuit boards

listed below.

9.12.3

Connector Mounting

Diagram
