Series 16i/160i/160is/18i/180i/180is/21i/210i/210is - Model B Connection manual (Hardware) Page 581

Connection manual (Hardware)

Page of 611

/ 611

B–63523EN/03

E. LIQUID CRYSTAL DISPLAY (LCD)

565

2–2) For A02B–0236–K130

Peel off the white film attached on the back (facing the LCD)

of the new protection sheet.

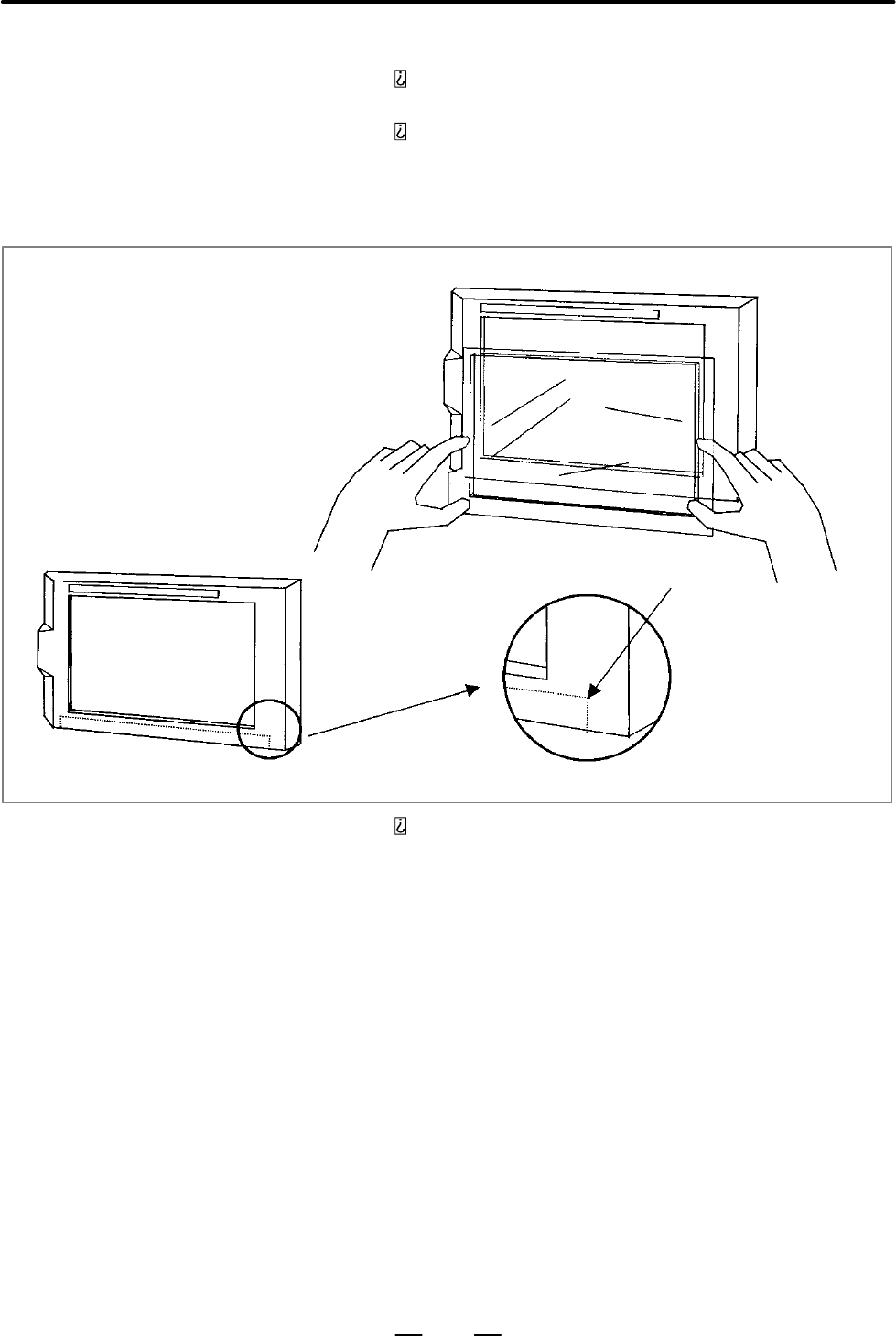

Attach the protection sheet so that it is to the lower–left of

the replacement tab. At this time, align the overhang edge

at bottom of the escutcheon with the corresponding part of

the protection sheet. In addition, prevent dust from entering

between the LCD and protection sheet.

Guide position

Attach the four sides while pushing out air between the touch

panel and protection sheet.

Do not pull the protection sheet to correct its position with

the part of the sheet kept stuck to the touch panel.

¯ Press the adhesive parts of the four sides, and attach the sheet

completely.

Check that the four corners and four sides of the protection

sheet do not float.
