B–63523EN/03

9. CONNECTION TO FANUC I/O Link

237

When connecting a connector panel printed circuit board directly

(mounting and dismounting a module)

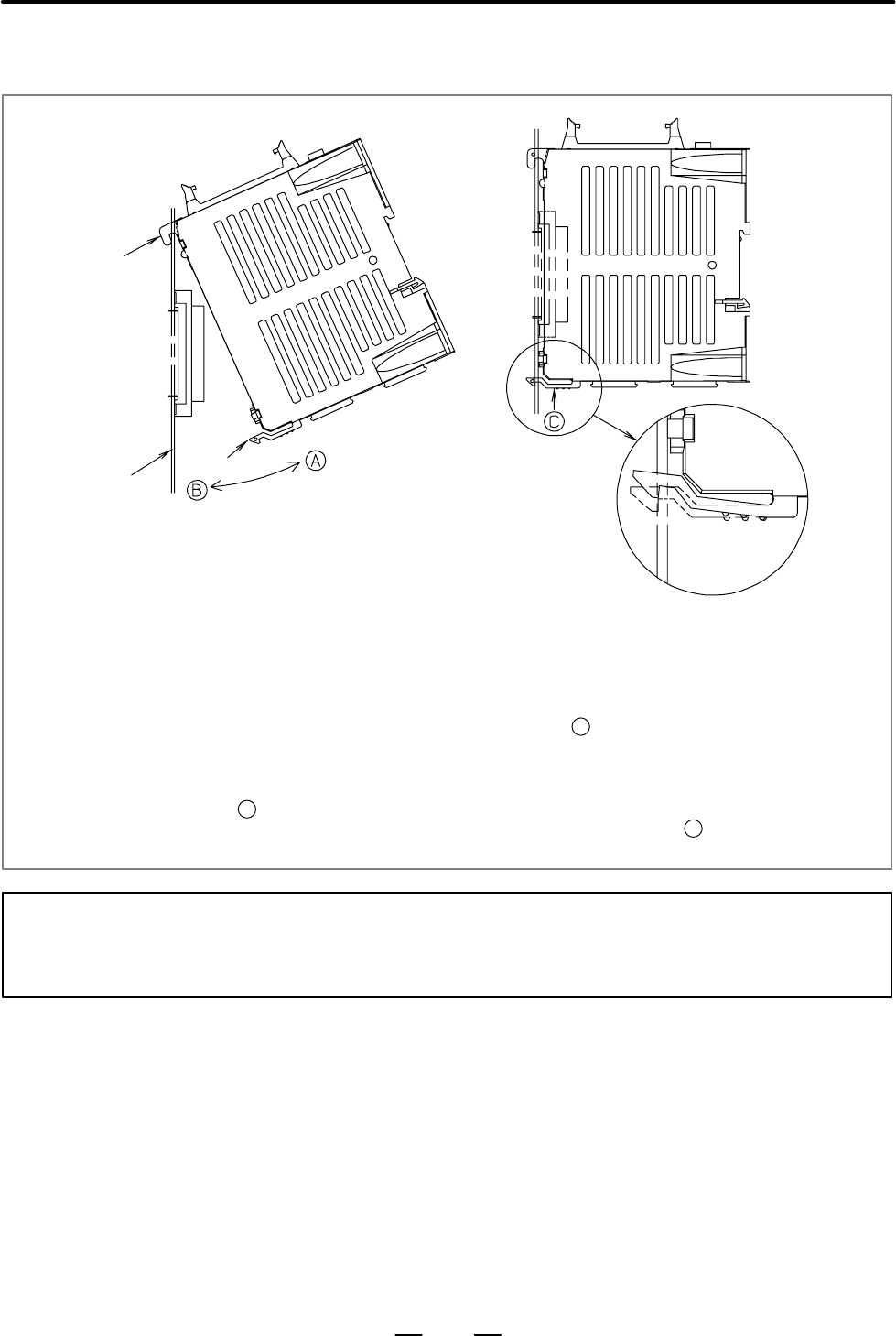

Mounting the module

1. Insert the hook of the module into the square hole located at the upper part of the connector panel

printed circuit board.

2. Using the hook as a fulcrum, push the module in the direction of B , and attach the module’s

connector to the connector on the printed circuit board.

3. Push the stopper into the lower hole of the printed circuit board until it clicks into place.

Dismounting the module

1. Press the stopper C upward.

2. Using the hook as a fulcrum, pull the lower part of the module in the direction of A .

Hook

Connector panel

printed circuit board

Stopper

NOTE

When mounting and dismounting a module, hold the module by its top and bottom surfaces.

Avoid applying force to the sides where there are slits.
