8. CNC DISPLAY UNIT WITH PC FUNCTIONS

B–63523EN/03

188

NOTE

1 The high–speed serial bus cannot use an optical fiber cable

designed for the FANUC I/O link, FSSB extension line, or

serial spindle.

2 Machine tool builders cannot cut or extend optical fiber

cables. Select an appropriate type from the above list.

3 No FANUC I/O link junction adapter other than the low–loss

optical junction adapter can be used.

4 When using a low–loss optical junction adapter, be sure to

use a junction–only low–loss optical fiber cable together

with it.

5 Keep the total length of the junction adapter and

junction–only low–loss optical fiber within 60 m.

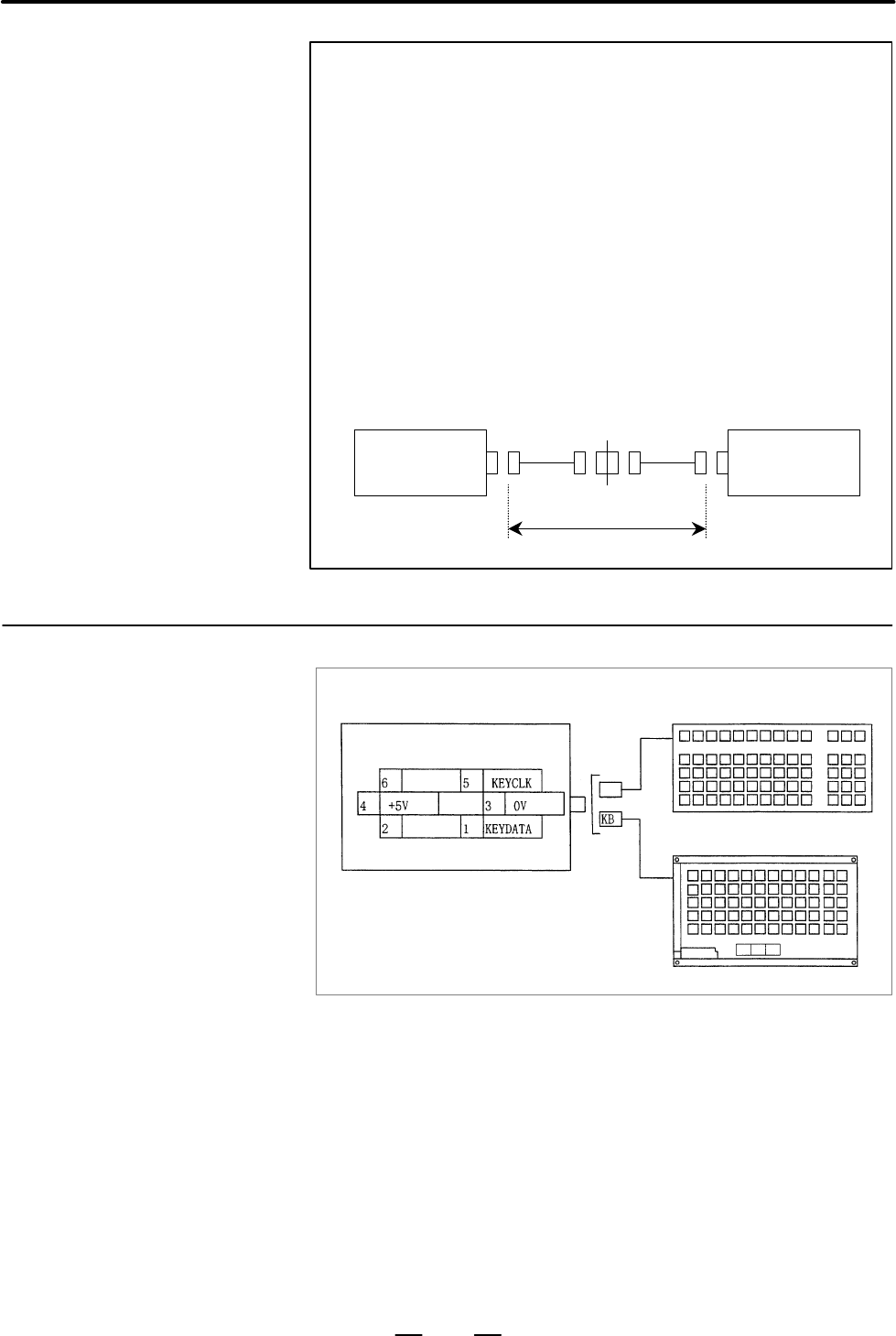

HSSB interface

board

Translation

adapter

CNC display unit with

PC functions

60m or less

CD32A

(mini DIN6)

CNC display unit with PC functions

Typewriter–style keyboard

(commercial model)

Alternatively, FA typewriter–

style keyboard

1) Recommended full keyboard

A86L–0001–0210 : 101 type (in the market) Only for application

development or maintenance

A86L–0001–0211 : 106 type (in the market) Only for application

development or maintenance

A02B–0236–C131#JC :

FA Full Keyboard (Japanese) for 10.4” LCD type

A02B–0236–C131#EC :

FA Full Keyboard (English) for 10.4” LCD type

A02B–0236–C132#JC :

FA Full Keyboard (Japanese) for 12.1” LCD type

8.7.5

Typewriter–style

Keyboard
