B–63523EN/03

3. INSTALLATION

To protect the devices from surge voltages due to lightening, it is

recommended to install surge–absorbing elements between the lines of

the input power and between one line and ground. This does not,

however, assure protection from all surges due to lightening.

The recommended items are as follows. (Items made by Okaya Denki

Sangyo Co.)

For the 200–V system

Between lines R S A S V–781BYZ–2

Between line and ground R S A S V–781BXZ–4

For the 400–V system

Between lines R S A S V–152BYZ–2A

Between line and ground R S A S V–801BXZ–4

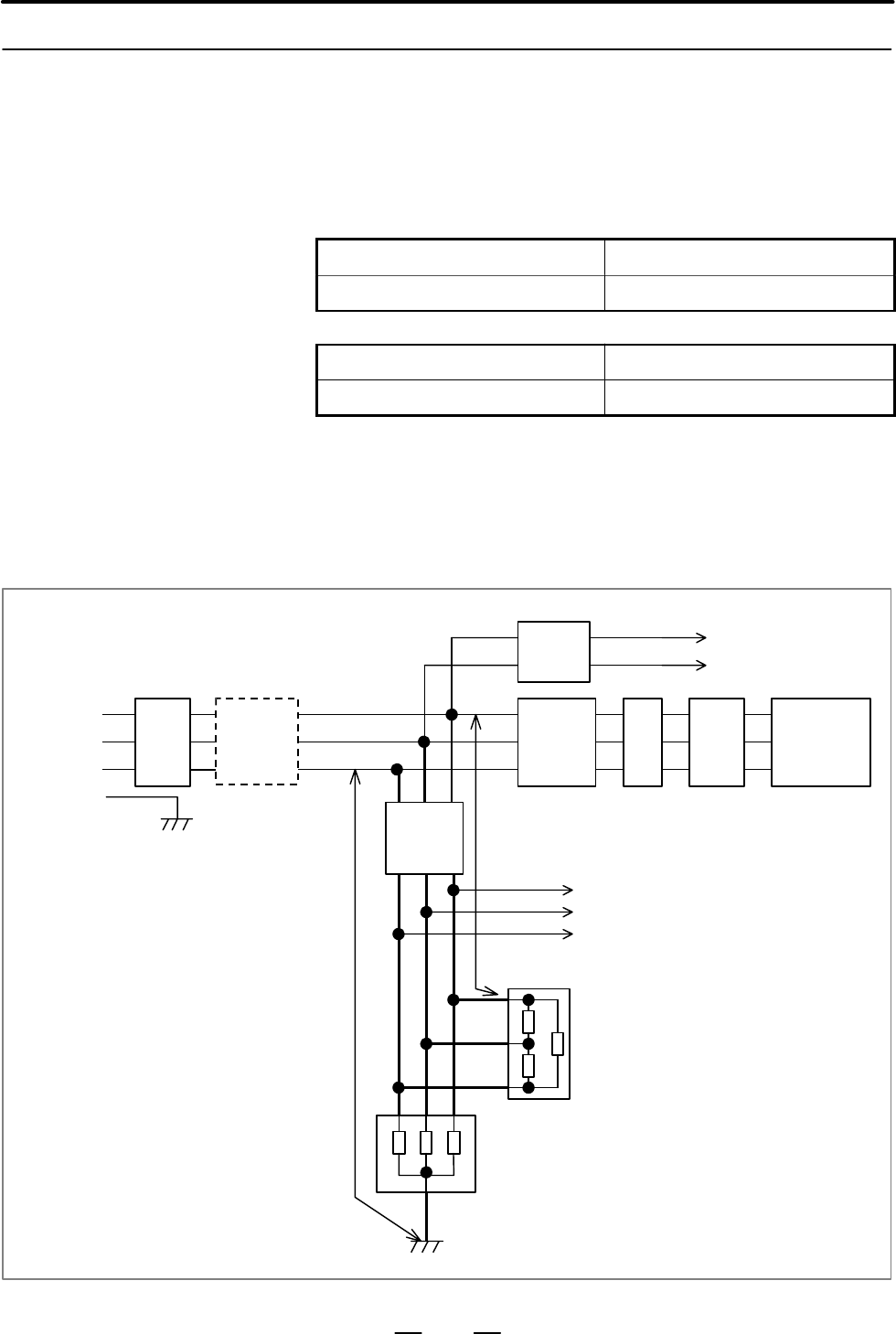

The surge–absorbing elements used for measures against surges due to

lightening must be installed in the input power unit as shown in the figure

below. The figure below shows an example in which an insulating

transformer, shown by dotted lines, is not installed. If an insulating

transformer is installed, surge–absorbing element 2 (between line and

ground) is not required.

input

Insulating

trans-

former

Nonfuse

breaker

Nonfuse

breaker

To CNC

reac-

tor

Servo unit

power

supply

module

Nonfuse

breaker

To other electric parts

on the machine

Surge–absorbing element 1

(between lines)

Surge–absorbing element 2

(between line and ground)

Input

break-

3.5.6

Measures Against

Surges due to

Lightning

Installation procedure
