4. POWER SUPPLY CONNECTION

B–63523EN/03

Specifications of recommended external 24 VDC power supply

(regulated power supply): (The power supply must satisfy UL1950.)

Output voltage: +24 V (10% (21.6 V to 26.4 V)

(including ripple voltage and noise. See the figure

below.)

Output current: The continuous load current must be larger than the

current consumption of the CNC.

(At the maximum temperature inside the power

magnetics cabinet in which the power supply is

located)

Load fluctuations (including rush current):

The output voltage must not go out of the above range

due to load fluctuations by external DO and other

factors.

Instantaneous input interruption retention time: 10 mS (for –100%)

20 mS (for –50%)

AC input voltage

Instantaneous

interruption

(–100%)

Instantaneous

interruption

(–50%)

Output voltage

Abrupt

load

change

Output current

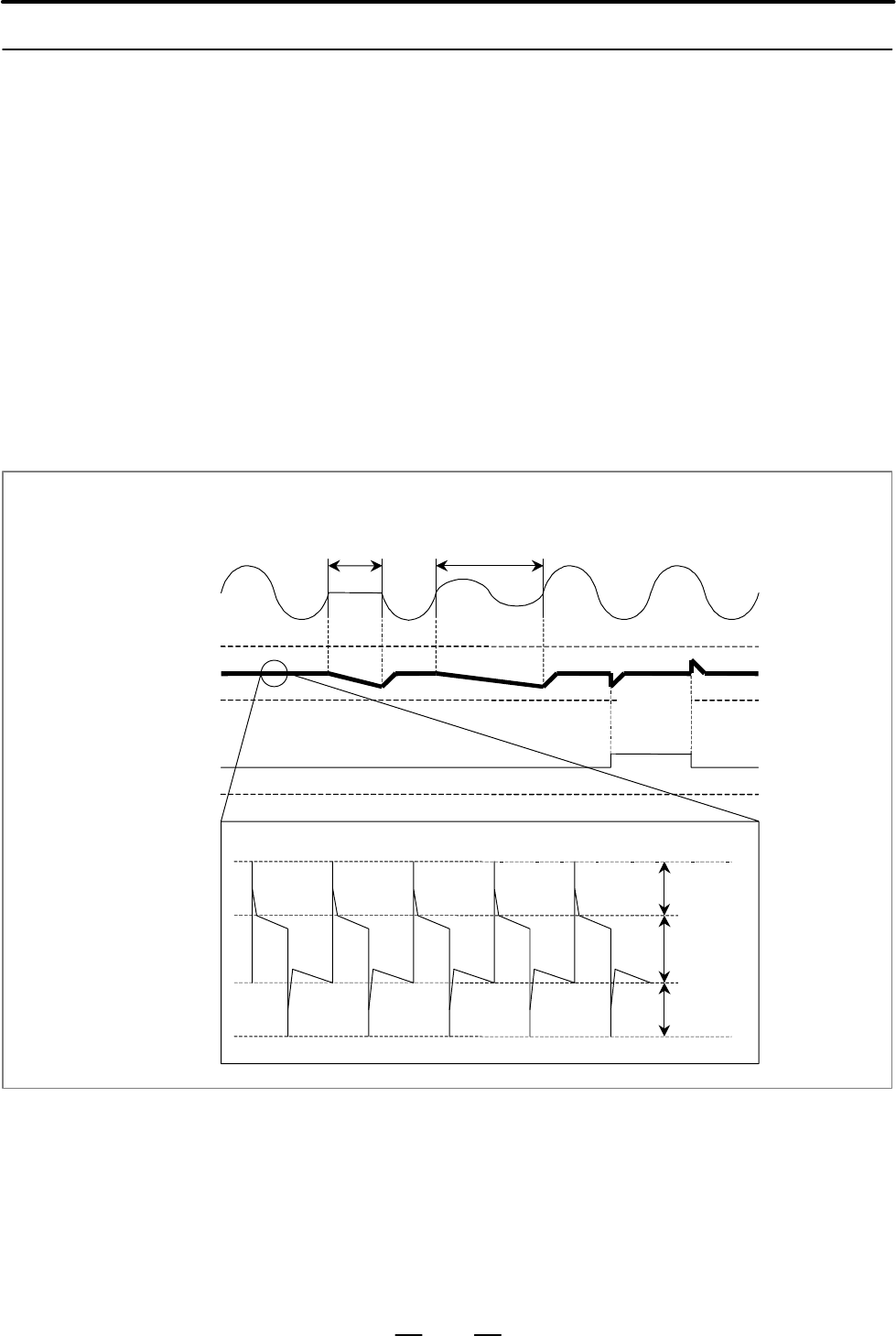

Fig. Example of ripple voltage and noise due to switching power supply

Noise

Ripple

voltage

21.6V

26.4V

10mS 20mS

Fig 4.2.2 (a) Timing chart

4.2.2

+24V Input Power

Specifications
