B–63523EN/03

9. CONNECTION TO FANUC I/O Link

223

NOTE

When DO is on in the sequence, the ON/OFF state of

DOCOM is directly reflected in the DO state as indicated

above by the dashed box. The +24 V signal to be supplied

to the I/O module must not be turned off during operation.

Otherwise, a CNC communication alarm is issued. Ensure

that +24 V is supplied either when or before the power to the

CNC is turned on, and that +24 V is removed either when

or after the power to the CNC is turned off.

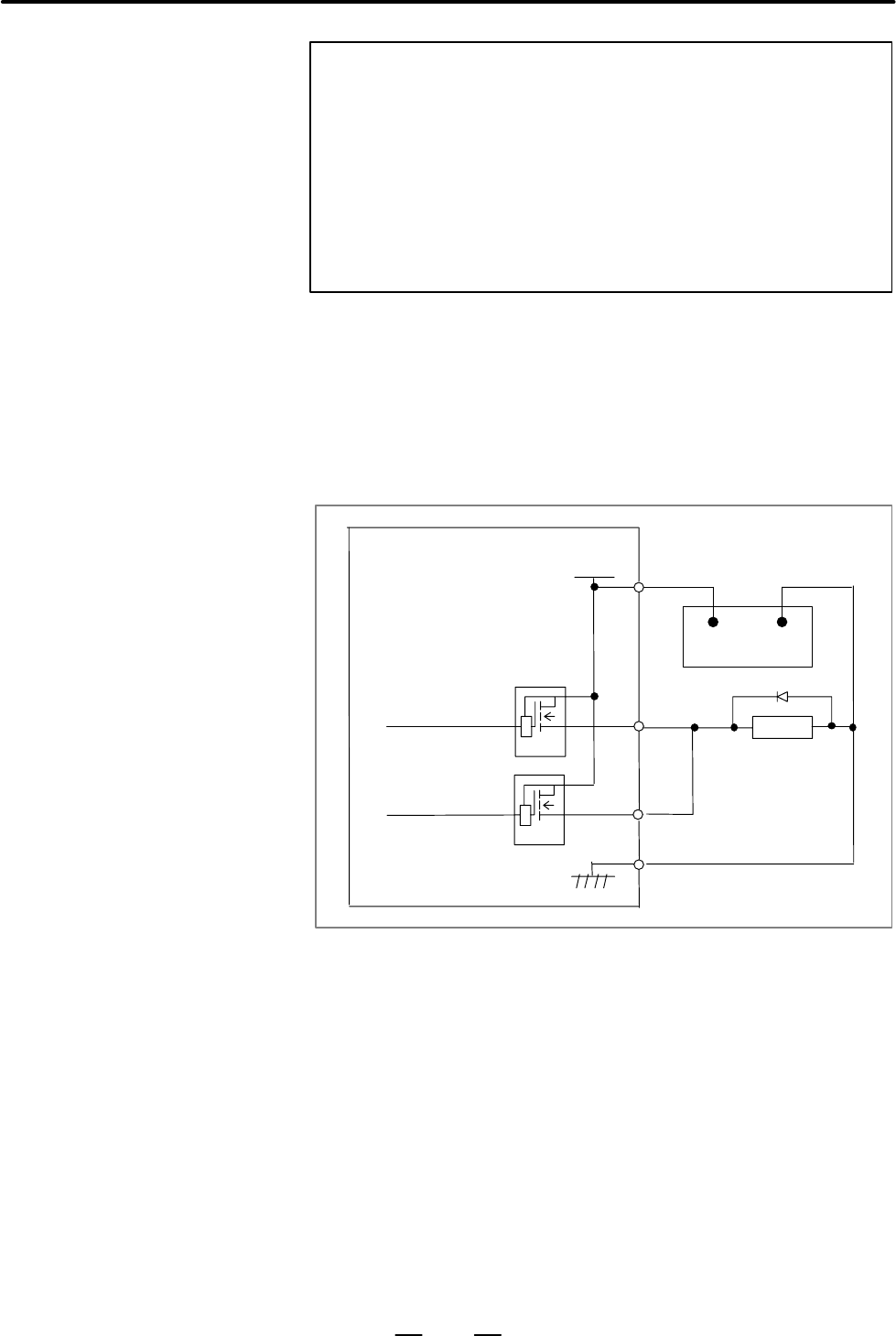

Parallel DO (output signal) connection

A DO load current of twice the level can be obtained by connecting DO

points in parallel and exercising ON/OFF control at the same time in the

sequence. Namely, the maximum load current per DO point is 200 mA.

By connecting two DO points in parallel and turning on the two DO points

at the same time, 400 mA can be obtained. In this case, however, the

leakage current is doubled up to 40 µA when the DO points are turned off.

DOCOM

CB150(01),(33)

+24V 0V

+24 V regulated power supply

Relay
