13. FUNCTIONS TO SIMPLIFY

PROGRAMMING B–63522EN/02

NC FUNCTION

166

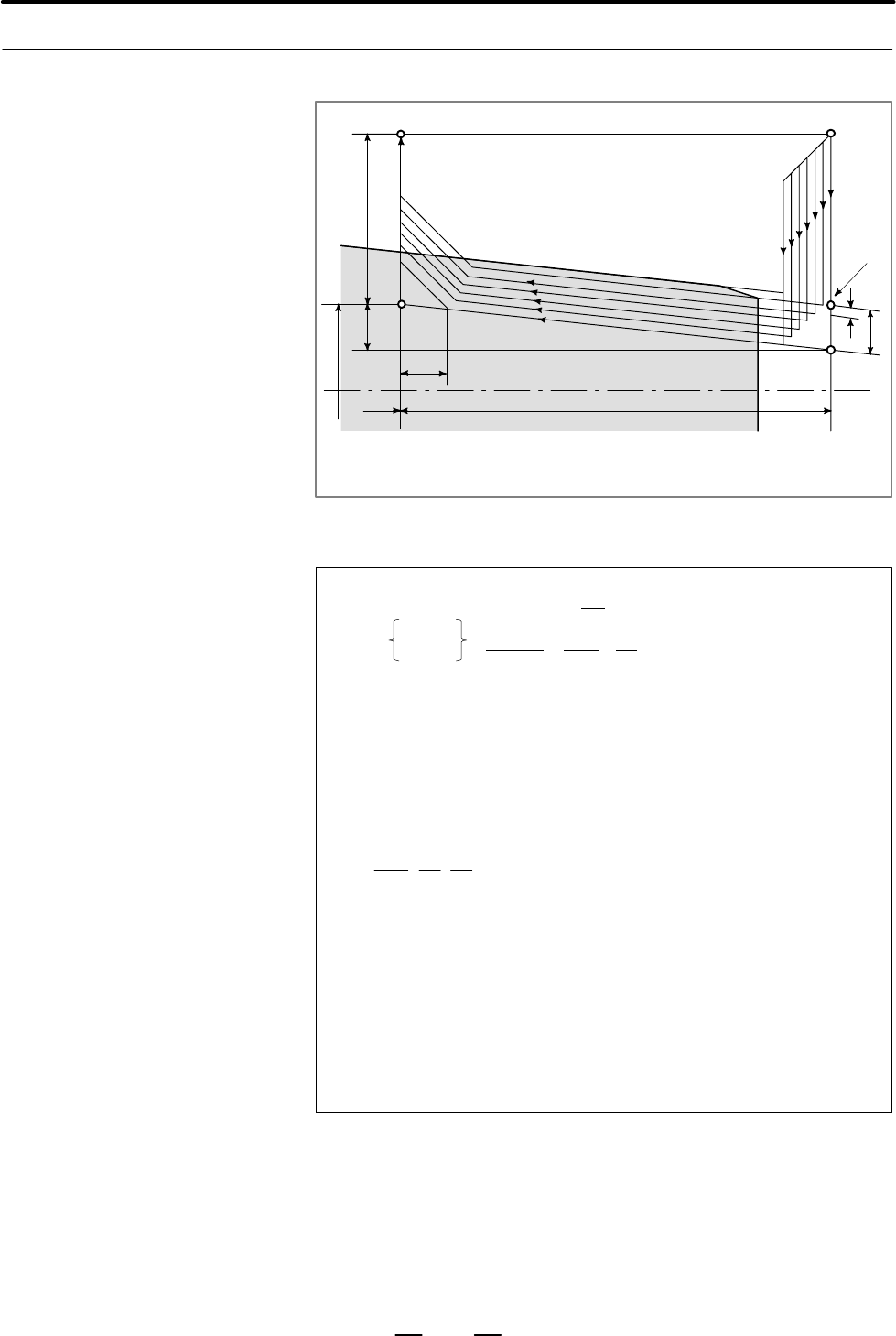

A thread cutting cycle as shown below can be made.

(F)

(R)

U/2

∆d

(R)

R : Rapid traverse

F : Cutting feed

G76 P(m)(r)(a) Q(∆d min) R(d) ;

G76 X_ Z_ R(i) P(k) Q(∆d) F(ȏ) ;

m : Number of final finishing repeats 1 to 99

r : Screw finishing (chamfering amount)

a : Tool tip angle (thread angle)

One of the six angles, 80°, 60°, 55°, 30°, 29°, and 0°, can

be selected as a 2-digit number. m, r, and a are specified in

address P at the same time.

Example)

When m = 2, r = 1.2ȏ, and a = 60 , they are specified as follows:

∆bmin: Minimum depth of cut

d : Finishing allowance

i : Difference in thread radius

Straight threading for i = 0

k : Height of the thread (The distance in X-axis direction is

specified with a radius value.)

∆d : Depth of first cut (specified with a radius value)

ȏ : Screw lead (same as threading of G32)

X_ Z_

U_W_

P02

13.5.7

Thread Cutting Cycle

(G76)
