27. DISPLAYING AND SETTING DATA

B–63522EN/02

NC FUNCTION

370

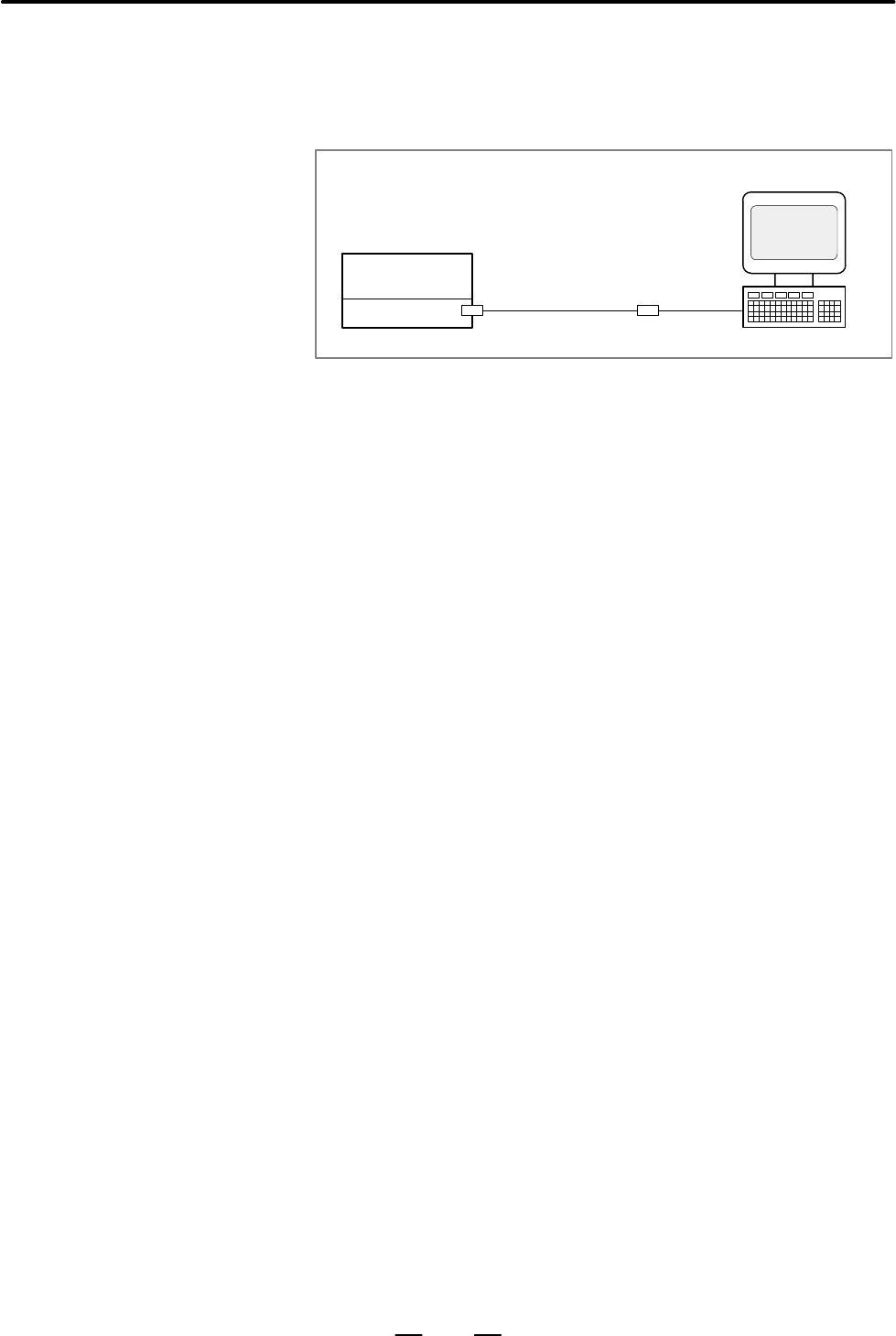

The remote diagnosis function allows you to use a commercially available

personal computer as a service terminal and connect it to a CNC via an

RS–232C interface or telephone line for monitoring the CNC status and

modifying CNC data from the personal computer.

CNC Machine

Toool

Modem card

Telephone line

Modem

RS–232C

[Personal

computer]

The remote diagnosis terminal software is sold separately.

The remote diagnosis function provides the following capabilities :

- CNC programs

1) Computer → CNC

S CNC command data for verification

S Searching for a specified program

S Part program

S Deleting a specified program

S Deleting all programs

2) CNC → computer

S Part program

S Displaying a program directory

S Program number of a program being executed

S Sequence number of a sequence being executed

- Computer → CNC

S Parameter

S Pitch error data

S Tool offset value

S Custom macro variable

S Selecting a display screen

S Memory contents

S PMC data

S Displaying a specified message

S All parameters

27.15

REMOTE DIAGNOSIS
