13. FUNCTIONS TO SIMPLIFY
PROGRAMMING B–63522EN/02
NC FUNCTION
190
The repeat cutting can be made by the rotation of a figure commanded
with a sub program using the following commands :
Select the plane on which rotational copy will be performed, using plane
selection commands G17, G18, and G19.
G17 G72.1 P_ L_ Xp_ Yp_ R_ ;
P : Sub program number
L : Number of repetitions
Xp : Xp axis center coordinate of rotation
(Xp : X axis or the axis which is parallel to X axis)
Yp : Yp axis center coordinate of rotation
(Yp : Y axis or the axis which is parallel to Y axis)
Zp : Zp axis center coordinate of rotation
(Zp : Z axis or the axis which is parallel to Z axis)
R : Rotation angle (+ = Counterclockwise direction)
Xp–Yp plane
G18 G72.1 P_ L_ Zp_ Xp_ R_ ;
Zp–Xp plane
G19 G72.1 P_ L_ Yp_ Zp_ R_ ;
Yp–Zp plane

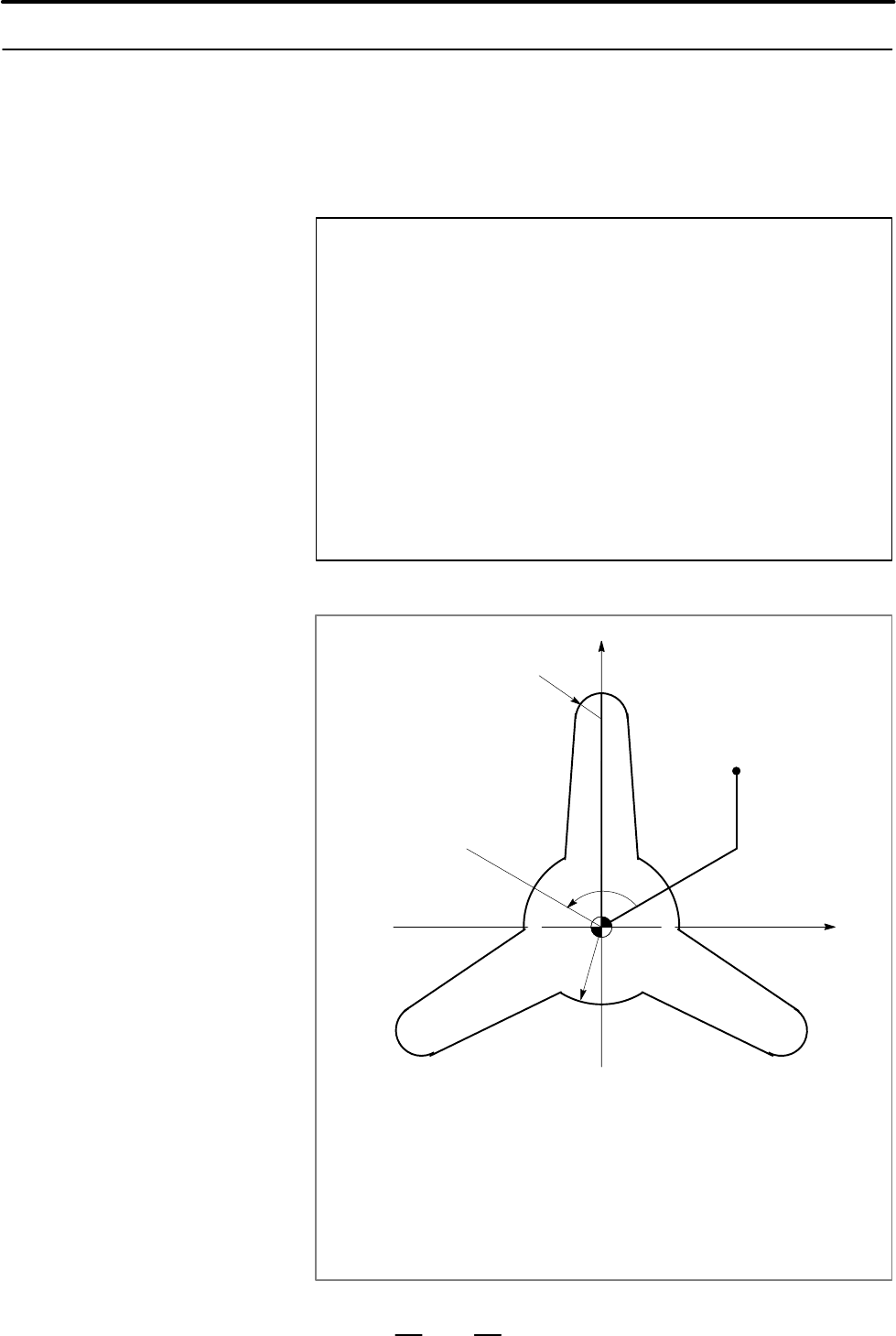

P6
P5
P4
R10
P3
P2
P1
P0
Y
X
Start point
Main program
O1000 ;
N10 G92 X40.0 Y50.0 ;
N20 G00 G90 X_ Y_ ; (P0)
N30 G01 G17 G41 X_ Y_ D01 F10 ; (P1)
N40 G72.1 P2000 L3 X0 Y0 R120.0 ;
N50 G40 G01 X_ Y_ I_ J_ ; (P0)
N60 G00 X40.0 Y50.0 ;
N70 M30 ;
Sub program
O2000 G03 X_ Y_ R30.0 ; (P2)
N100 G01 X_ Y_ ; (P3)
N200 G03 X_ Y_ R10.0 ; (P4)
N300 G01 X_ Y_ (P5)
N400 G03 X_ Y_ R30.0 ; (P6)
N500 M99 ;
13.16.1
Rotation Copy
Format
Examples
